K 20.40 - 8 Ohm

Thumbnail Filmstrip of K 20.40 - 8 Ohm Images

    Purchase K 20.40 - 8 Ohm

    SKU: V-2941-K2040 K 20.40 - 8 Ohm

    $13.00 each
    Brand: Visaton
    Quantity in Basket:  None

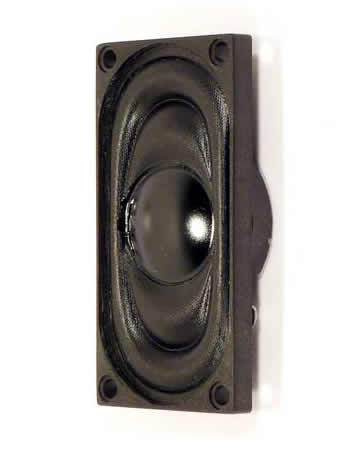

    Visaton Speaker Driver - K 20.40 - 8 Ohm Miniature Speaker
    Art. No. 2941

    Visaton K20.40 - 8 Ohm Miniature Speaker.
    Visaton K20.40 - 8 Ohm Miniature Speaker



    Characteristics and Sound Properties
    2 x 4 cm (0.8" x 1.6") miniature speaker. Thanks to its compact dimensions, suitable for signal output in machines and other equipment where space is at a premium. *) IP protection class for front side when built into a sealed enclosure.

    Typical applications:
    - Voice and signal output in machines and other equipment both indoors and outdoors

    Attributes:
    - Plastic basket
    - UV-resistant



    Technical Specifications

    Rated power 1 W
    Maximum power 2 W
    Nominal impedance Z 8 Ohm
    Frequency response 300–20000 Hz
    Mean sound pressure level 76 dB (1W/1m)
    Resonance frequency fs 600 Hz
    Height of front pole-plate 1 mm
    Voice coil diameter 12 mm
    Cutout diameter 38 x 18 mm
    Net weight 0.007 kg
    Connections 2.8 x 0.3 mm (Solder lug)
    Protective System IP 64 *)
    Temperature range -25 ... 70 °C

    Temperature Range IP 64 Protective rating

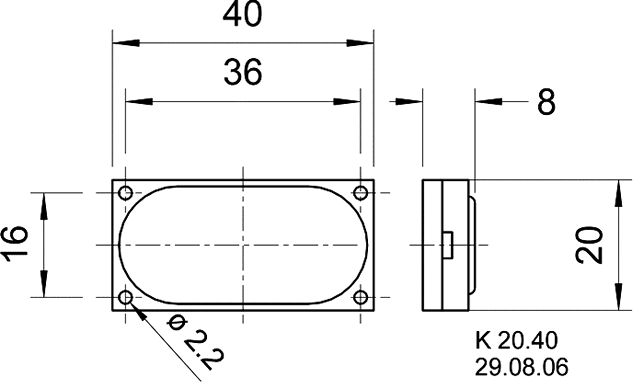

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

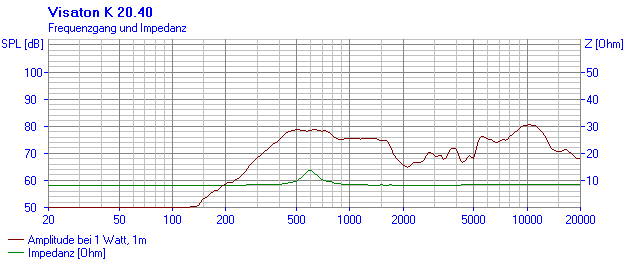

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
