K 64 WP - 50 Ohm

Thumbnail Filmstrip of K 64 WP - 50 Ohm Images

    Purchase K 64 WP - 50 Ohm

    SKU: V-2919-K64WP K 64 WP - 50 Ohm

    $14.00 each
    Brand: Visaton
    Quantity in Basket:  None

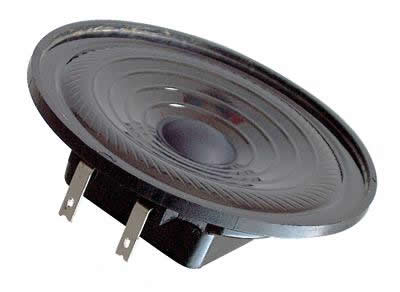

    Visaton Speaker Driver - K 64 WP - 50 Ohm Miniature Full Range
    Art. No. 2919

    Visaton K64WP - Full Range Miniature 50 Ohm.
    Visaton K64WP - 50 Ohm Miniature Full Range



    Characteristics and Sound Properties

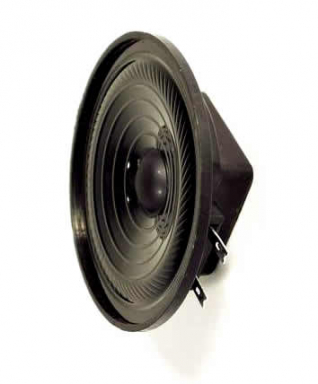

    6.4 cm (2.5") full-range speaker with a plastic basket and plastic diaphragm. Broad frequency response and good voice reproduction. Particularly well suited to outdoor applications and where ambient conditions are generally unfavourable (e.g. high humidity). - Version with different orientation of the terminals: see K 64 WPT - 8 Ohm
    *) IP protection class for front side when built into a sealed enclosure

    Typical applications:-
    - Monitoring speaker for electronic devices
    - Monitoring speaker for outdoor systems

    Attributes:-
    - Weather-resistant
    - UV-resistant
    - Plastic: ABS (basket; UL 94: HB); Mylar (diaphraghm)
    - Functionally at cold according to EN 60068-2-1/EN 50155
    - Cold storage (-40 °C) according to EN 60068-2-1/EN 50155
    - Functionally at damp heat (cyclic) according to EN 60068-2-3/EN 50155
    - Functionally at dry heat according to EN 60068-2-2/EN 50155



    Technical Specifications

    Rated power 2 W
    Maximum power 3 W
    Nominal impedance Z 50 Ohm
    Frequency response 200–15000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Opening angle (-6 dB) 109°/4000 Hz
    Excursion limit ± 1.5 mm
    Resonance frequency fs 300 Hz
    Magnetic induction 0.7 T
    Magnetic flux 45 µWb
    Height of front pole-plate 2 mm
    Voice coil diameter 10 mm
    Height of winding 2.5 mm
    Cutout diameter 60 mm
    Net weight 0.05 kg
    Connections 2.8 x 0.5 mm (+)
    2.8 x 0.5 mm (−)
    Protectuve system IP 65 *)
    Temperature range -40 ... 80 °C
    Temperature Range

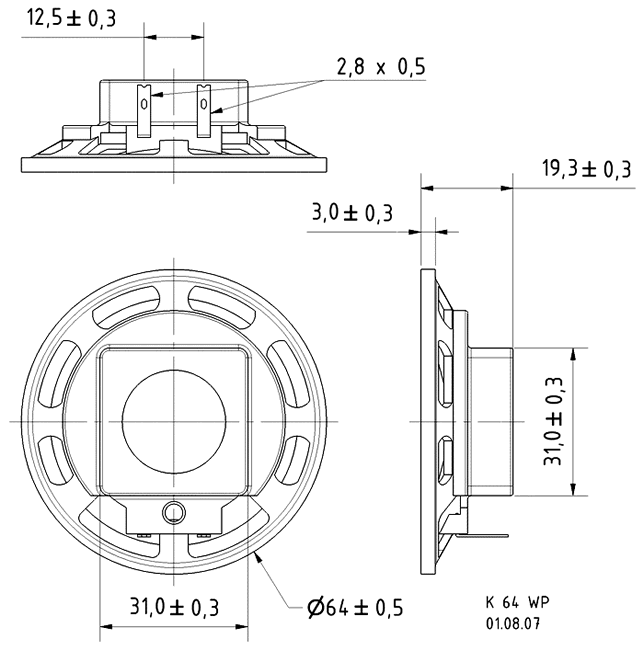

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

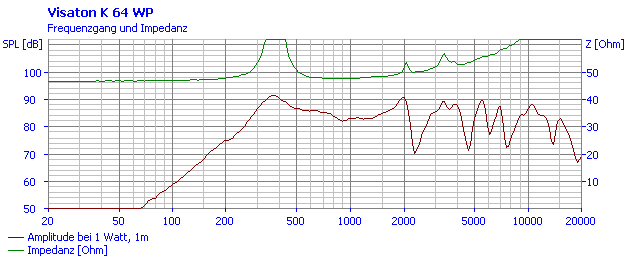

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

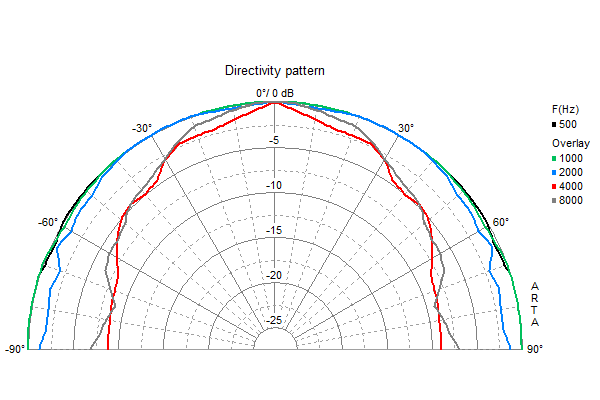

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
