K 36 WP - 50 Ohm

Thumbnail Filmstrip of K 36 WP - 50 Ohm Images

    Purchase K 36 WP - 50 Ohm

    SKU: V-2913-K36WP K 36 WP - 50 Ohm

    $12.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - K 36 WP - 50 Ohm Miniature Loudspeaker
    Art. No. 2913

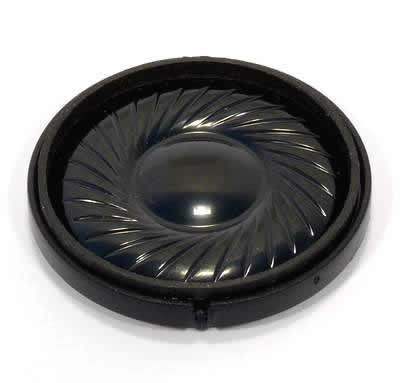

    Visaton K36WP - 50 Ohm Miniature Speaker.

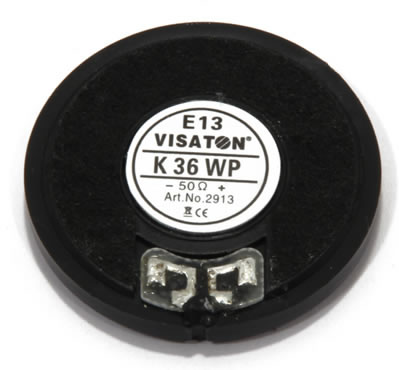

    Visaton K36WP - 50 Ohm Miniature Speaker rear.
    Visaton K36WP - 50 Ohm Miniature Speaker



    Characteristics and Sound Properties
    3.6 cm (1.4") miniature speaker with a plastic basket and plastic diaphragm. Balanced frequency response and good voice reproduction. Particularly well suited to outdoor applications and where ambient conditions are generally unfavourable (e.g. high humidity).

    Typical applications:-
    - Monitoring speaker for electronic devices
    - Monitoring speaker for outdoor systems

    Attributes:-
    - Plastic: ABS (basket; UL 94:HB); Mylar (diaphragm)
    - Functionally at cold according to EN 60068-2-1/EN 50155



    Technical Specifications

    Rated power 1 W
    Maximum power 2 W
    Nominal impedance Z 50 Ohm
    Frequency response 300–20000 Hz
    Mean sound pressure level 77 dB (1W/1m)
    Opening angle (-6dB) 180°/4000 Hz
    Excursion limit ±0.5 mm
    Resonance frequency fs 550 Hz
    Voice coil diameter 10 mm
    Height of front pole-plate 2 mm
    Height of winding 2 mm
    Cutout diameter 31 mm
    Net weight 0.006 kg
    Protective system IP 65 *)
    Temperature range -40 ... +70 °C
    *) IP protection class for front side when built into a sealed enclosure

    Temperature Range





    Driver Dimensions

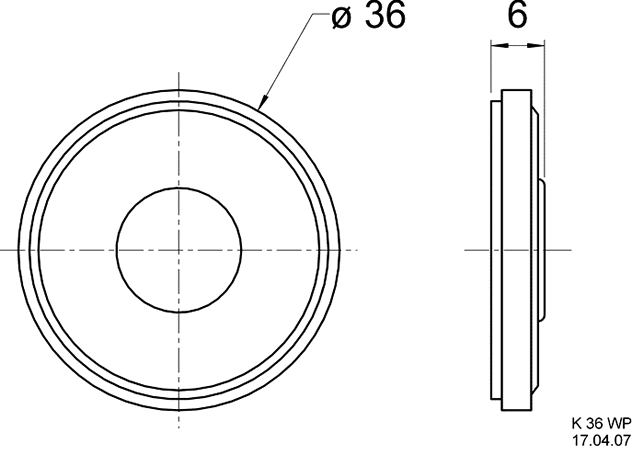

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

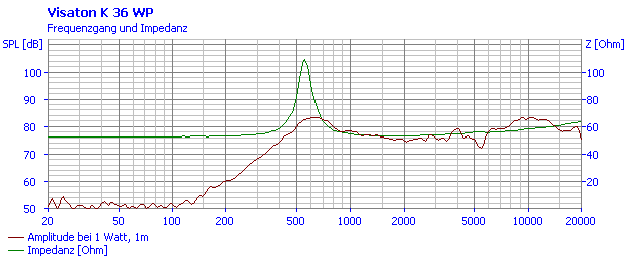

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

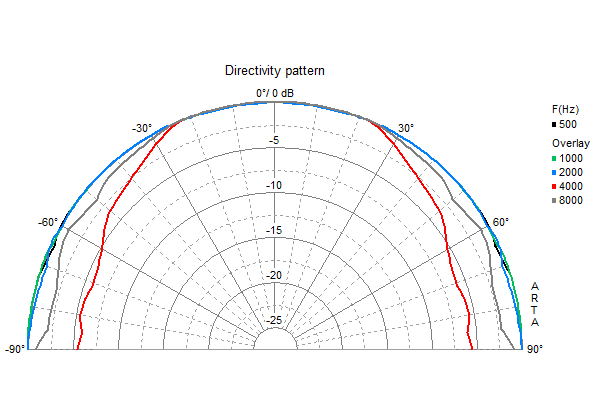

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
