K 28 WP - 50 Ohm

Thumbnail Filmstrip of K 28 WP - 50 Ohm Images

    Purchase K 28 WP - 50 Ohm

    SKU: V-2910-K28WP K 28 WP - 50 Ohm

    $12.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - K 28 WP - 50 Ohm Miniature Loudspeaker
    Art. No. 2910

    Visaton K28WP - 50 Ohm Miniature Speaker.

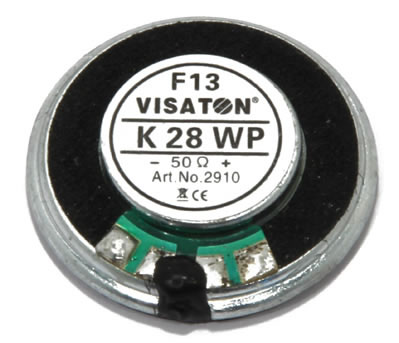

    Visaton K28WP - 50 Ohm Miniature Speaker rear.
    Visaton K28WP - 50 Ohm Miniature Speaker



    Characteristics and Sound Properties
    2.8 cm (1.1") miniature speaker with a plastic diaphragm (Mylar). Balanced frequency response and good voice reproduction. Particularly well suited to applications in very small devices.
    *) IP protection class for front side when built into a sealed enclosure

    Typical applications:-
    - Monitoring speaker for electronic devices

    Attributes:-
    - Functionally at cold according to EN 60068-2-1/EN 50155



    Technical Specifications

    Rated power 1 W
    Maximum power 2 W
    Nominal impedance Z 50 Ohm
    Frequency response 300–20000 Hz
    Mean sound pressure level 75 dB (1W/1m)
    Excursion limit ±0.5 mm
    Resonance frequency fs 600 Hz
    Voice coil diameter 10 mm
    Height of winding 2 mm
    Cutout diameter 21 mm
    Net weight 0.007 kg
    Protective system IP 65 *)
    Temperature range −40 ... 70 °C

    Temperature Range





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

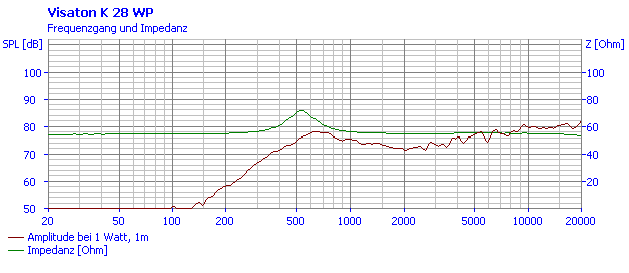

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
