K 57 C - 8 Ohm

Thumbnail Filmstrip of K 57 C - 8 Ohm Images

    Purchase K 57 C - 8 Ohm

    SKU: V-2907-K57C K 57 C - 8 Ohm

    $12.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - K 57 C - 8 Ohm Miniature Loudspeaker
    Art. No. 2907

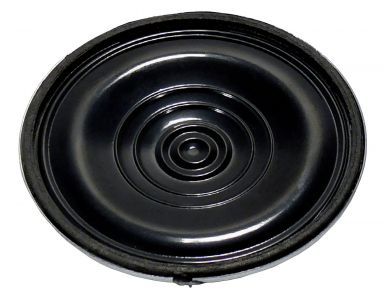

    Visaton K57C - 8 Ohm Miniature Speaker.
    Visaton K57C - 8 Ohm Miniature Speaker - rear view.
    Visaton K57C - 8 Ohm Miniature Speaker



    Characteristics and Sound Properties
    5.7 cm (2.2") miniature speaker with waterproofed, transparent Mylar membrane and Neodym-magnet. Light weight. Low installation hight. Can be used outside and at critical enviroments. Suitable as signal speaker at electric mashines. Good speech, intelligibility.
    *) IP protection class for front side when built into a sealed enclosure

    Typical applications:-
    - Voice and signal output in machines and other equipment where space is at a minimum



    Technical Specifications

    Rated power 2 W
    Maximum power 3 W
    Nominal impedance Z 8 Ohm
    Frequency response 350–6800 Hz
    Mean sound pressure level 87 dB (1W/1m)
    Resonance frequency fs 550 Hz
    Net weight 0.031kg
    Protective system IP 65 *)
    Connections 2.8 x 0.3 mm (solder lugs)
    Temperature range −25 ... 70 °C
    Temperature RangeIP 65 Rating





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
