K 45 - 8 Ohm

Thumbnail Filmstrip of K 45 - 8 Ohm Images

    Purchase K 45 - 8 Ohm

    SKU: V-2849-K45 K 45 - 8 Ohm

    $11.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - K 45 - 8 Ohm Miniature Speaker
    Art. No. 2849

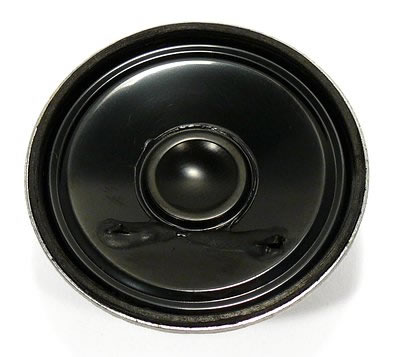

    Visaton K45 - 8 Ohm Miniature Speaker.

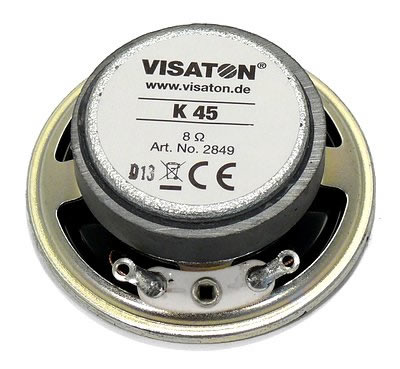

    K45 - 8 Ohm Minature speaker rear.
    Visaton K45 - 8 Ohm Miniature Speaker



    Characteristics and Sound Properties
    4.5 cm (1.8") miniature speaker with plastic diaphragm (Mylar) and metal basket. Thanks to its compact dimensions, suitable for signal output in machines and other equipment where space is at a premium.



    Technical Specifications

    Rated power 1 W
    Maximum power 2 W
    Nominal impedance Z 8 Ohm
    Frequency response 300–14000 Hz
    Mean sound pressure level 83 dB (1W/1m)
    Resonance frequency fs 520 Hz
    Height of front pole-plate 1.5 mm
    Voice coil diameter 14 mm
    Height of winding 2.5 mm
    Cutout diameter 41.5 mm
    Net weight 0.046 kg
    Temperature range −25 ... 70 °C





    Driver Dimensions

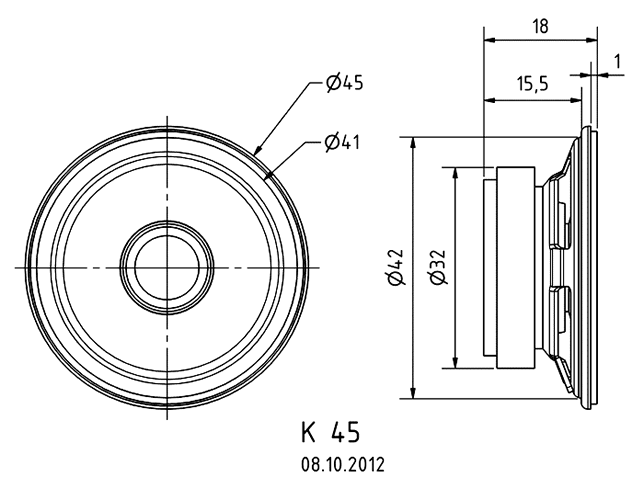

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

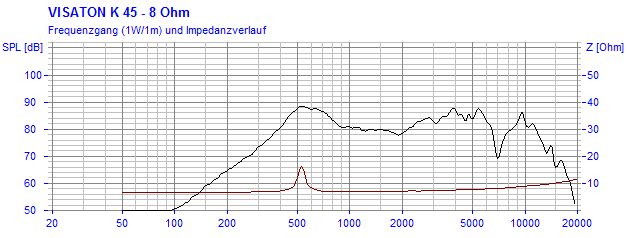

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
