K 23 PC - 8 Ohm

Thumbnail Filmstrip of K 23 PC - 8 Ohm Images

    Purchase K 23 PC - 8 Ohm

    SKU: V-2823-K23PC K 23 PC - 8 Ohm

    $22.00 each
    Brand: Visaton
    Shipping Weight: 0.04 kg
    Quantity in Basket:  None







    Visaton Speaker Driver - K 23 PC - 8 Ohm Miniature Loudspeaker
    Art. No. 2823

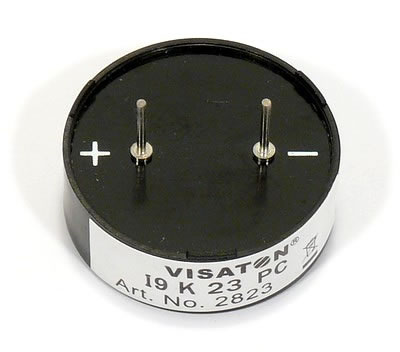

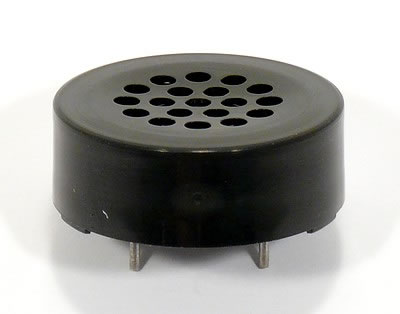

    Visaton K23PC - 8 Ohm Miniature Speaker.
    Visaton K23PC - 8 Ohm Miniature Speaker.
    Visaton K23PC - 8 Ohm Miniature Speaker



    Characteristics and Sound Properties
    2.3 cm (0.9") miniature speaker for printed circuit board assembly.

    Typical applications:-
    - Signal output in machines or devices



    Technical Specifications

    Rated power 0.2 W
    Maximum power 0.5 W
    Nominal impedance Z 8 Ohm
    Frequency response 900–16000 Hz
    Mean sound pressure level 73 dB (1W/1m)
    Resonance frequency fs 1740 Hz
    Voice coil diameter 8 mm
    Height of winding 1.5 mm
    Net weight 0.003 kg
    Wire Spacing 10 mm
    Connections 0.8 mm
    Temperature range –25 ... 70 °C

    Temperature Range

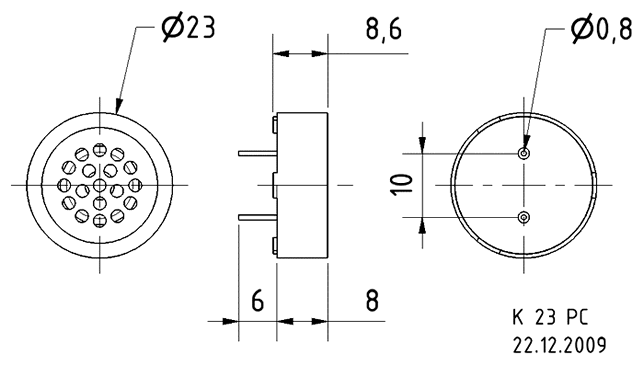

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

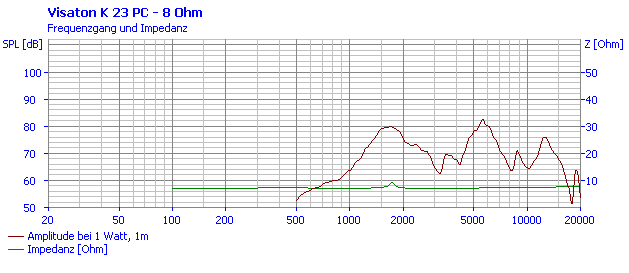

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
