K 23 - 8 Ohm

Thumbnail Filmstrip of K 23 - 8 Ohm Images

    Purchase K 23 - 8 Ohm

    SKU: V-2820-K23 K 23 - 8 Ohm

    $12.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - K 23 - 8 Ohm Miniature Loudspeaker
    Art. No. 2820

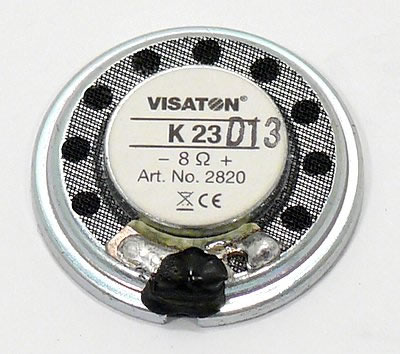

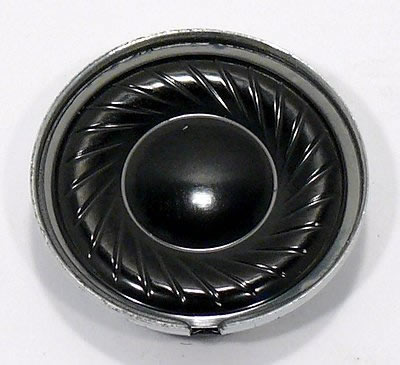

    Visaton K23 - 8 Ohm Miniature Speaker.
    Visaton K23 - 8 Ohm Miniature Speaker.
    Visaton K23 - 8 Ohm Miniature Speaker



    Characteristics and Sound Properties
    2.3 cm (0.9") miniature speaker with Mylar diaphragm and round metal basket. Thanks to its small dimensions, suitable for signal output in equipment, where space is at a premium. Connection via soldering points on rear side.



    Technical Specifications

    Rated power 0.3 W
    Maximum power 0.5 W
    Nominal impedance Z 8 Ohm
    Frequency response 420–20000 Hz
    Mean sound pressure level 79 dB (1W/1m)
    Resonance frequency fs 750 Hz
    Voice coil diameter 10.4 mm
    Height of winding 1.5 mm
    Cutout diameter 21 mm
    Net weight 0.004 kg
    Protective system IP 64 *)
    Temperarture range −25 ... 70 °C

    Temperature Range

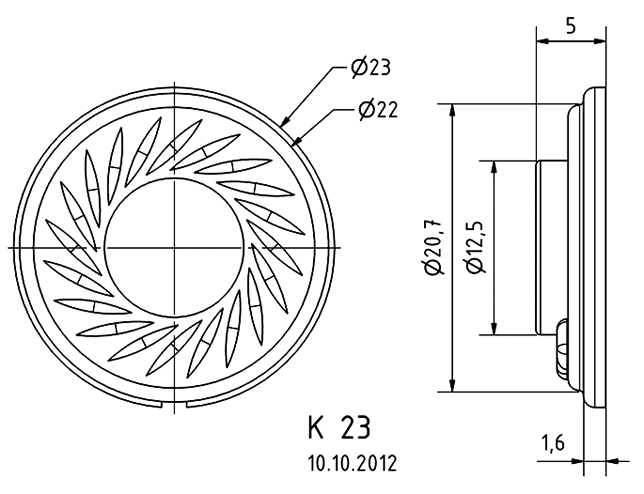

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

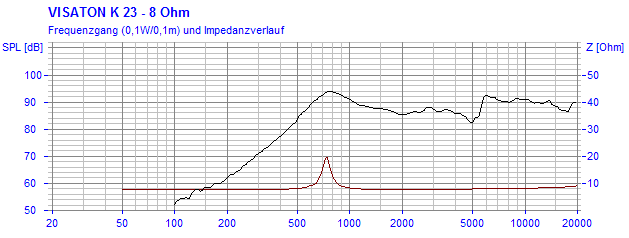

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
