K 16 - 50 Ohm

Thumbnail Filmstrip of K 16 - 50 Ohm Images

    Purchase K 16 - 50 Ohm

    SKU: V-2816-K16 K 16 - 50 Ohm

    $13.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - K 16 - 50 Ohm Miniature Loudspeaker
    Art. No. 2816

    Visaton K16 - 50 Ohm.
    Visaton K16 - 50 Ohm Miniature Speaker



    Characteristics and Sound Properties
    1.6 cm (0.63") miniature loudspeaker with very small dimensions and a front-sided area of glue. The connection can be done via already stripped cables.

    Typical applications:-
    - Applications in very small devices
    - Model construction
    - Signal output



    Technical Specifications

    Rated power 0.5 W
    Maximum power 1 W
    Nominal impedance Z 50 Ohm
    Frequency response 700–20000 Hz
    Mean sound pressure level 71 dB (1W/1m)
    Resonance frequency fs 1005 Hz
    Voice coil diameter 8 mm
    Cutout diameter 13 mm
    Net weight 0.002 kg
    Length of cable 24 mm
    Temperature range -20 ... 65 °C





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

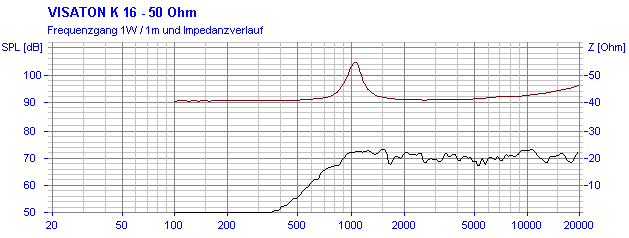

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
