K 14.25 - 8 Ohm

Thumbnail Filmstrip of K 14.25 - 8 Ohm Images

    Purchase K 14.25 - 8 Ohm

    SKU: V-2812-K1425 K 14.25 - 8 Ohm

    $13.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - K 14.25 - 8 Ohm Miniature
    Art. No. 2812

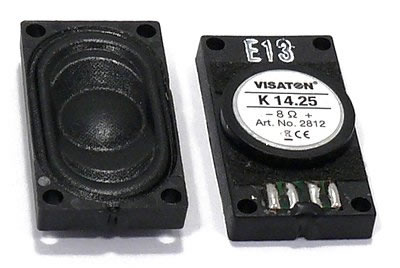

    Visaton K14.25 - 8 Ohm Miniature Speaker.
    Visaton K14.25 - 8 Ohm Miniature Speaker.



    Characteristics and Sound Properties
    1.4 x 2.5 cm (0.5" x 1") miniature speaker with plastic diaphragm and rectangular plastic basket. Thanks to its compact dimensions, suitable for signal output in equipment, where space is at a premium. Connection via soldering points on rear side.



    Technical Specifications

    Rated power 1 W
    Maximum power 1.5 W
    Nominal impedance Z 8 Ohm
    Frequency response 500–20000 Hz
    Mean sound pressure level 72 dB (1W/1m)
    Resonance frequency fs 950 Hz
    Voice coil diameter 8.7 mm
    Height of winding 2 mm
    Cutout diameter 13 x 23 mm
    Net weight 0.0025 kg
    Protective System IP 64
    Temperature range −25 ... 70 °C

    Temperature Range  IP 64 Protection System

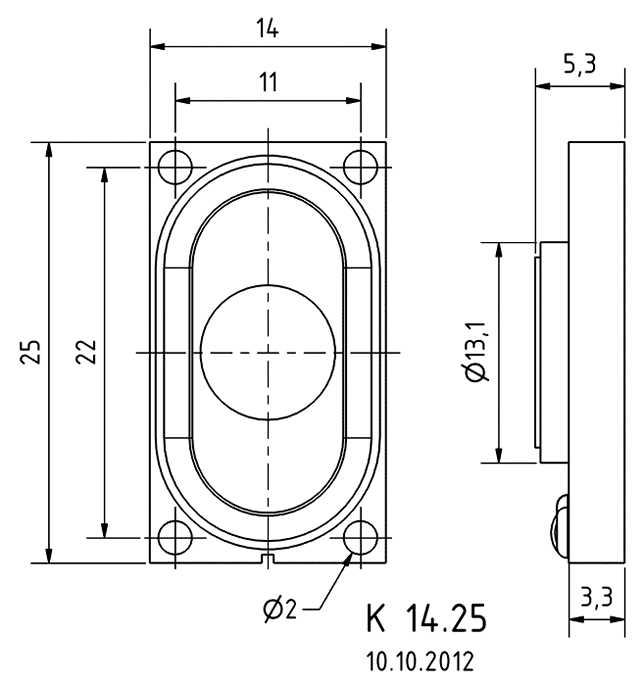

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

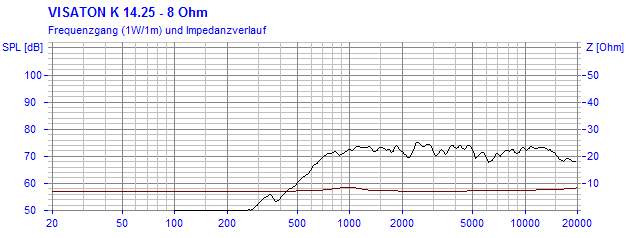

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
