K 28 WPC - 8 Ohm

Thumbnail Filmstrip of K 28 WPC - 8 Ohm Images

    Purchase K 28 WPC - 8 Ohm

    SKU: V-2809-K28WPC K 28 WPC - 8 Ohm

    $13.00 each
    Brand: Visaton
    Quantity in Basket:  None

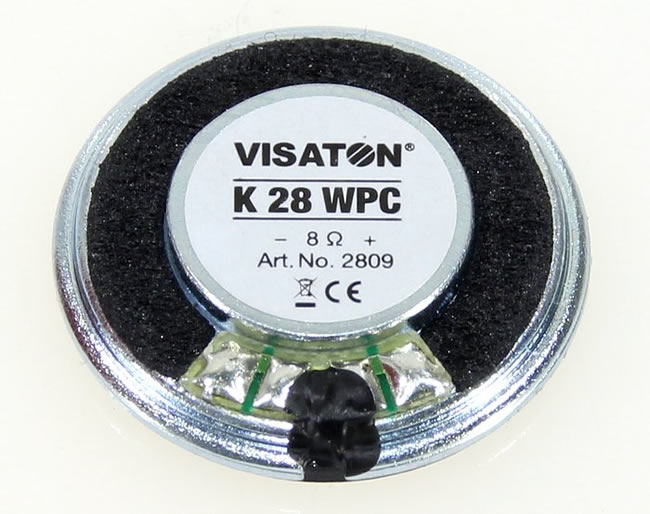

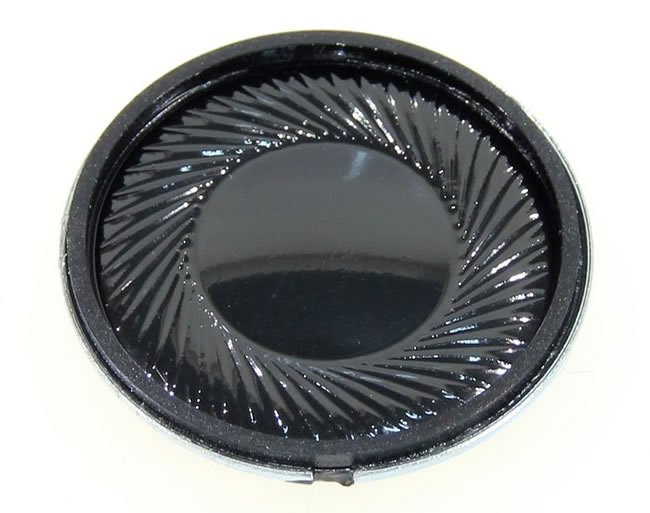

    Visaton Speaker Driver - K28 WPC - 8 Ohm 2.8 cm or 1.1 " Miniature Speaker
    Art. No. 2809



    Visaton K 28 WPC 8 Ohm 2.8 cm (1.1") miniature speaker



    Characteristics and Sound Properties
    2.8 cm (1.1") miniature speaker with a plastic diaphragm (Mylar). Balanced frequency response and good voice reproduction. Particularly well suited to applications in very small devices.

    *) IP protection class for front side when built into a sealed enclosure
    Typical applications:

    -Monitoring speaker for electronic devices

    Attributes:

    - Functionally at cold according to EN 60068-2-1/EN 50155



    Technical Specifications

    Rated power 1 W
    Maximum power 2W
    Nominal impedance Z 8 Ohm
    Frequency response

    300-20000 Hz
    Mean sound pressure level 76 dB (1W/1m)
    Resonance frequency fs 700 Hz
    Voice coil diameter ± 13.5 mm
    Height of winding 2 mm
    Net weight 7 g
    Protective system IP 65 *)
    Temperature range −40 ... 70 °C

    Temperature Range

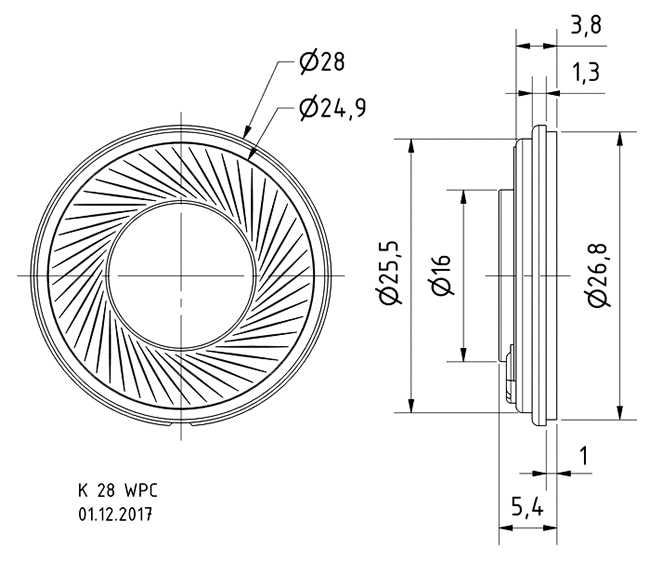

    Driver Dimensions


    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

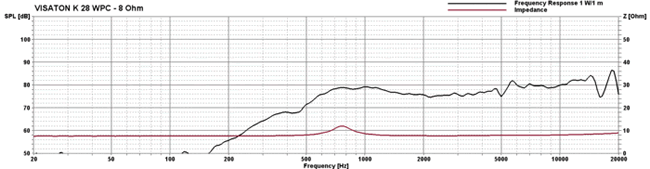

    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph
