K 20 - 8 Ohm

Thumbnail Filmstrip of K 20 - 8 Ohm Images

    Purchase K 20 - 8 Ohm

    SKU: V-2802-K20 K 20 - 8 Ohm

    $14.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - K20 - 8 Ohm Miniature Speaker
    Art. No. 2802

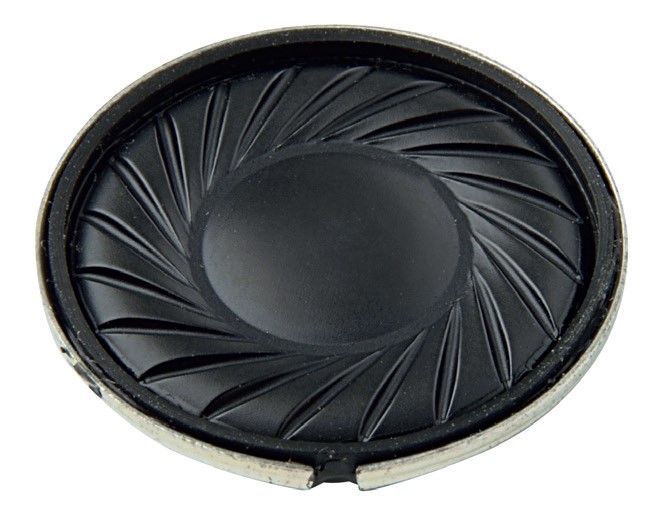

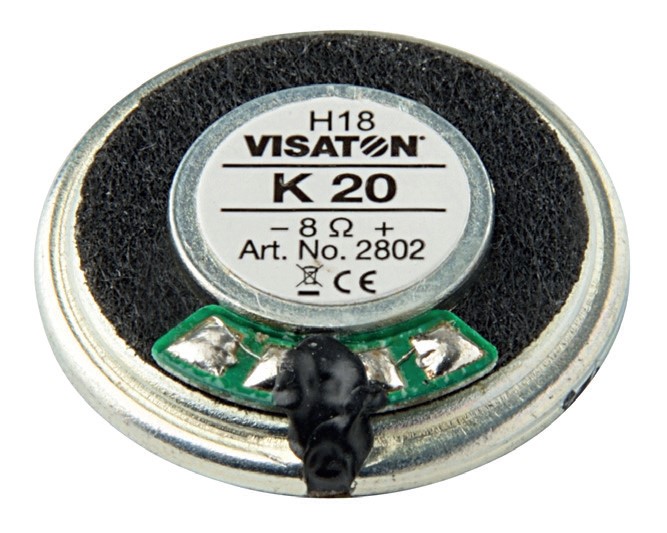

    Visaton K20 - Ohm Miniature SpeakerRear View Visaton K20 - Ohm Miniature Speaker

    Visaton K20 - 8 Ohm Miniature Speaker



    Characteristics and Sound Properties

    • 2 cm (0.8") miniature speaker with plastic diaphragm and round metal basket. Thanks to its small dimensions, suitable for signal output in equipment, where space is at a premium. Connection via soldering points on rear side.

      *) IP protection class for front side when built into a sealed enclosure (gluing of the loudspeaker might be necessary)

      Typical Applications:
      • Handheld devices
      • HUI



      Technical Specifications

      Rated power 1 W
      Maximum power 1.5 W
      Nominal impedance Z 8 Ohm
      Frequency response

      600-20000 Hz
      Mean sound pressure level 73 dB (1W/1m)
      Resonance frequency fs 860 Hz
      Cutout diameter 20 mm
      Net weight 2.3g
      Protective system IP 67 *)
      Temperature range −40 ... 85 °C

      Temperature Range





      Driver Dimensions

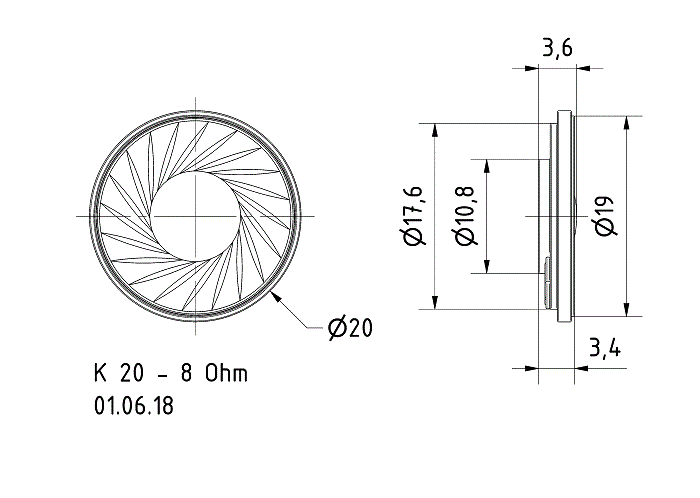

      Visaton K20 - 8 Ohm Dimensions
      Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



      Frequency and Impedance Response

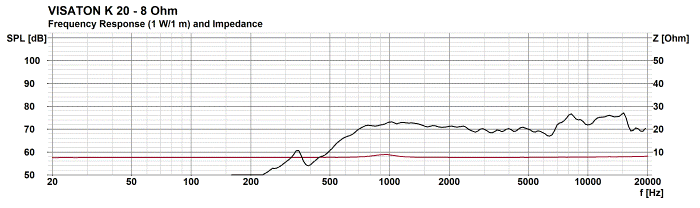

      Visaton K20 - 8 Ohm Frequency response
      Loudspeaker Frequency and Impedance Response Graph



      Directivity Pattern

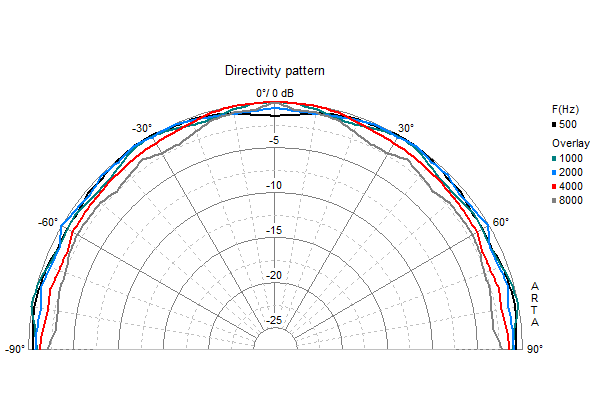

      Visaton K20 - 8 Ohm Directivity Pattern
      Loudspeaker Directivity Pattern (on and off axis response)
