FR 8 TA - 4 Ohm

Thumbnail Filmstrip of FR 8 TA - 4 Ohm Images

    Purchase FR 8 TA - 4 Ohm

    SKU: V-2402-FR8TA FR 8 TA - 4 Ohm

    $14.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - FR 8 TA - 4 Ohm Fullrange
    Art. No. 2402

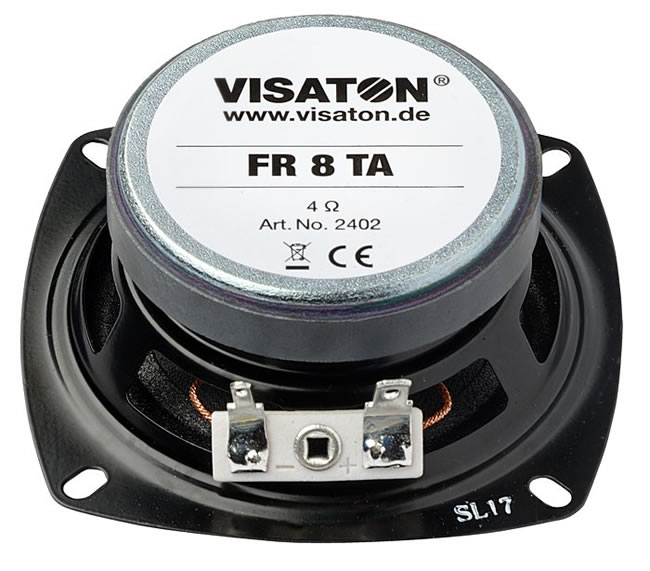

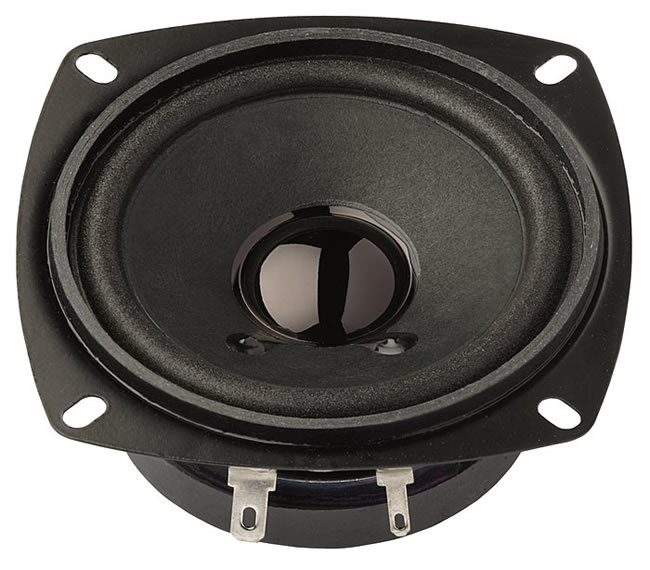

    Visaton FR 8 TA - 4 Ohm Fullrange Speaker DriverVisaton FR 8 TA - 4 Ohm Fullrange Speaker Driver Rear View

    Visaton FR 8 TA - 4 Ohm Fullrange Speaker Driver



    Characteristics and Sound Properties
    8 cm (3.3") fullrange speaker with good bass reproduction, balanced frequency response and high efficiency. Especially suitable as built-in speaker for music reproduction and as driver for 100 V network column speakers.



    Technical Specifications

    Rated power 10 W
    Maximum power 15 W
    Nominal impedance Z 4 Ohm
    Frequency response

    100-20000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Resonance frequency fs 150 Hz
    Voice coil diameter 15 mm
    Cutout diameter 75 mm
    Net weight 0.23 kg
    Temperature range -20 ... 70°C

    Temperature Range

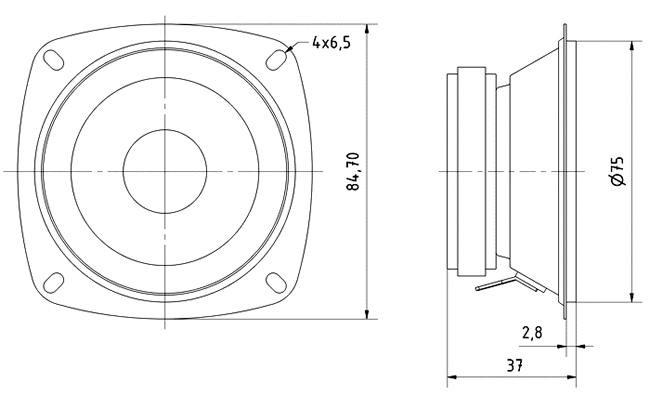

    Driver Dimensions


    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

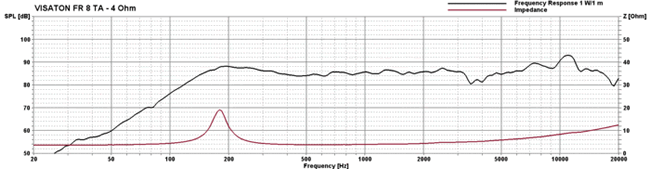

    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph

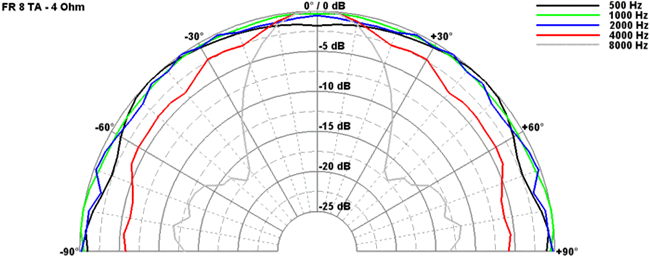

    Directivity Pattern


    Loudspeaker Directivity Pattern (on and off axis response)
