R 10 ND - 8 Ohm

Thumbnail Filmstrip of R 10 ND - 8 Ohm Images

    Purchase R 10 ND - 8 Ohm

    SKU: V-2334-R10ND R 10 ND - 8 Ohm

    $63.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - R10 ND - 8 Ohm Fullrange Driver 10cm 4 Inch
    Art. No. 2334

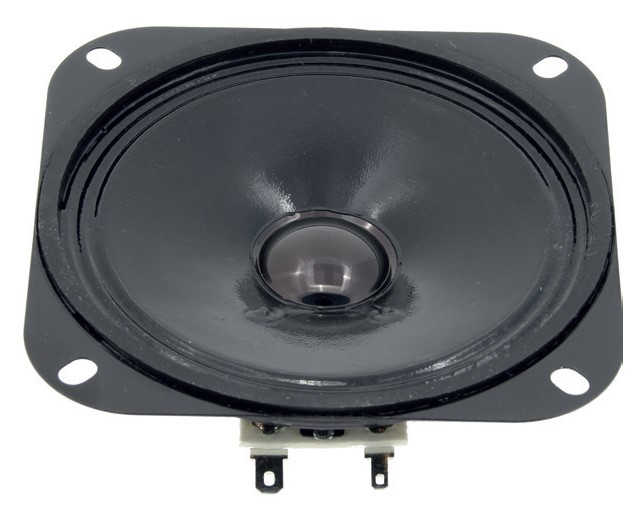

    Visaton R10 ND - 8 Ohm Full Range Driver

    Visaton R10 ND - 8 Ohm Fullrange Driver 10cm 4 Inch



    Characteristics and Sound Properties

    10 cm (4") fullrange speaker with very high efficiency and balanced frequency response with slightly increased high-range. Very good speech intelligibility. Water-repellent cone and rubber gasket. Especially suitable as control speaker in electronic devices and as speaker for public applications and public transport systems.

    Attributes:-

    • Low weight because of neodymium magnet
    • Water-repellent cone
    • Metal basket, non-corrodible
    • Very high efficiency
    • Magnetically shielded

    *) IP protection class for front side when built into a sealed enclosure (gluing of the loudspeaker might be necessary)

    **) Maximum long term power according to DIN EN 60268-5



    Technical Specifications

    Maximum power 20 W **)
    Nominal impedance Z 8 Ohm
    Frequency response 120-16000 Hz
    Mean sound pressure level 92 dB (1 W/1 m)
    Resonance frequency fs 165 Hz
    Net weight 0.113 kg
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (-)
    Protective system IP 54 *)
    Temperature range −40 ... 70 °C




    Recommended Cabinet Size

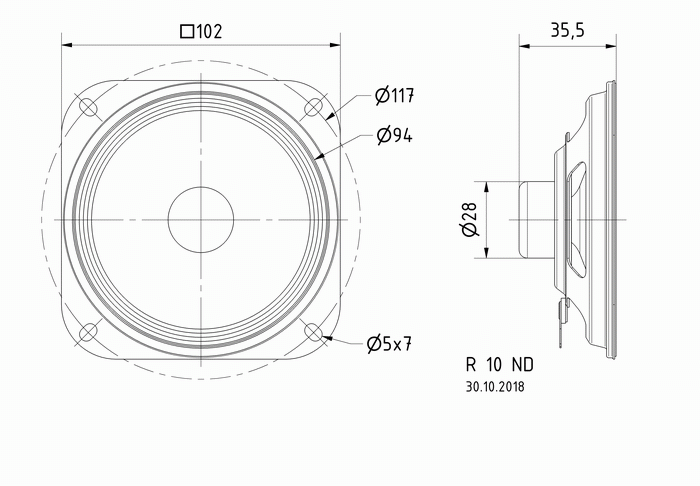

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

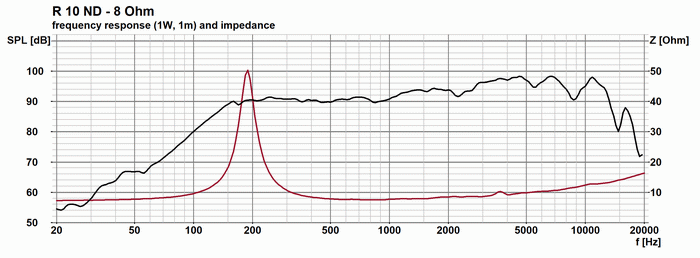

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

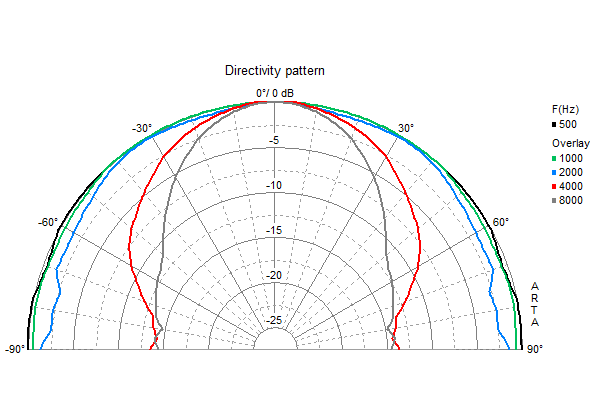

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
