BF37 - 8 Ohm

Thumbnail Filmstrip of BF37 - 8 Ohm Images

    Purchase BF37 - 8 Ohm

    SKU: V-2261-BF37 BF37 - 8 Ohm

    $28.00 each
    Brand: Visaton
    Quantity in Basket:  None

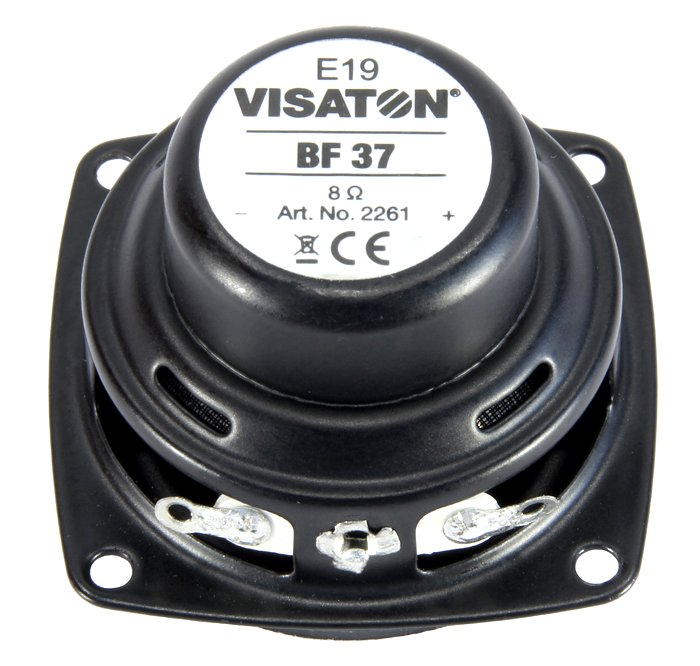

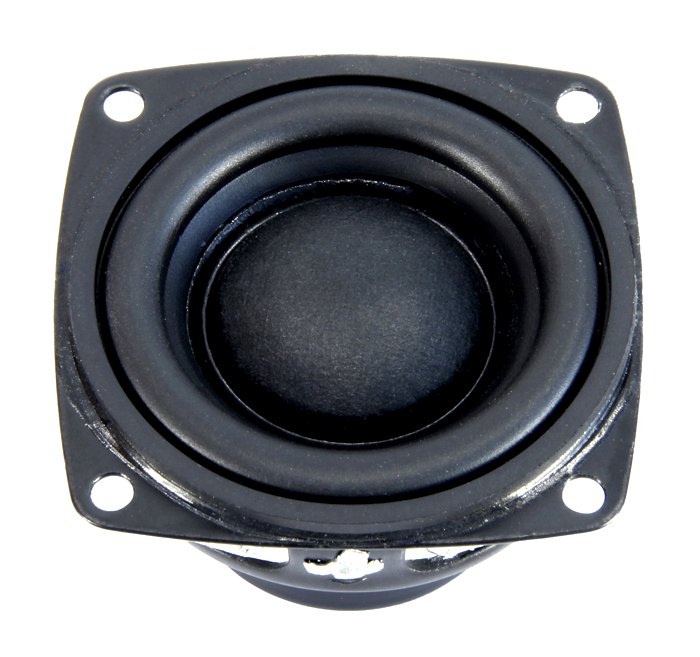

    Visaton Speaker Driver - BF37 - 8 Ohm 3.7 cm / 1.5" Fullrange Speaker
    Art. No. 2261

    Characteristics and Sound Properties

    3.7 cm (1.5") fullrange speaker with a wide and balanced frequency response and very good low range reproduction. With powerful Neodymium driver and high membrane excursion limit, optimised for small vented enclosures/enclosures with a passive radiator.

    Suitable for applications where slim construction and good music and speech reproduction are required.

    Typical Applications:-
    • Flat TVs
    • Info terminals
    • Other compact devices speech and music reproduction



    Technical Specifications

    Rated power 5 W
    Maximum power 8 W
    Nominal impedance Z 8 Ohm

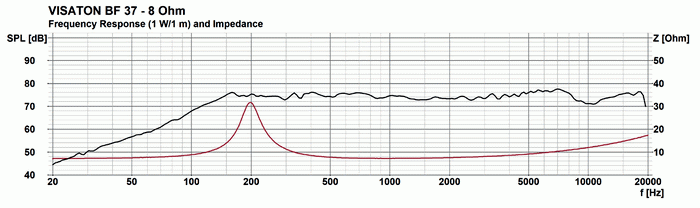

    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    100-20000 Hz
    Mean sound pressure level 74 dB (1 W/1 m)
    Excursion limit ±3.4 mm
    Resonance frequency fs 155 Hz
    Net weight 33.1g
    DC resistance Rdc 7.0 Ohm
    Mechanical Q factor Qms 4.0
    Electrical Q factor Qes 1.1
    Total Q factor Qts 0.86
    Equivalent volume Vas 0.05 litres
    Effective piston area Sd 6.2cm2
    Dynamically moved mass Mms 1.0g
    Force factor Bxl 2.56 Tm
    Inductance of the voice coil L 0.085 mH
    Connections Solder lugs
    Protective system IP X4 *)

    IP Rating
    *) IP protection class for front side when built into a sealed enclosure (gluing of the loudspeaker might be necessary)
