    FR 4x6 X - 4 Ohm

    Thumbnail Filmstrip of FR 4x6 X - 4 Ohm Images

      Purchase FR 4x6 X - 4 Ohm

      SKU: V-2254-FR4x6X FR 4x6 X - 4 Ohm

      $41.00 each
      Size Approx: 4 x 6" / 100 mm x 150 mm / 10 cm x 15 cm
      Brand: Visaton
      Quantity in Basket:  None






      Visaton Speaker Driver - FR 4x6 X - 4 Ohm Full Range Driver With Tweeter Cone
      Art. No. 2254

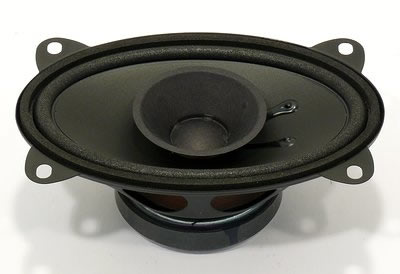

      Visaton FR4x6X - 4 Ohm Full Range.

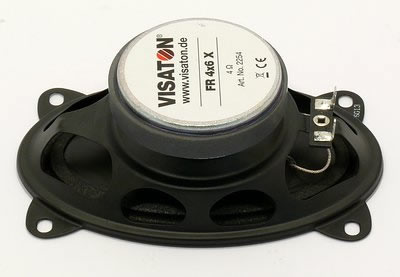

      Visaton FR4x6X - 4 Ohm Full Range rear view.
      Visaton FR4x6X - 4 Ohm Fullrange Driver



      Characteristics and Sound Properties
      9 x 15 cm (4" x 6") full-range driver with tweeter cone. Wide and balanced frequency response. Well suited for speech and music.

      Typical applications:
      - Vehicles, mobile homes, network column speakers



      Technical Specifications

      Rated power 15 W
      Maximum power 30 W
      Nominal impedance Z 4 Ohm
      Frequency response 75-20000 Hz
      Mean sound pressure level 87 dB (1W/1m)
      Resonance frequency fs 110 Hz
      Height of front pole-plate 3.5 mm
      Voice coil diameter 25 mm
      Cutout diameter 142 x 90 mm
      Net weight 0.456 kg
      Connections 4.8 x 0.8 mm (+)
      2.8 x 0.8 mm ( −)

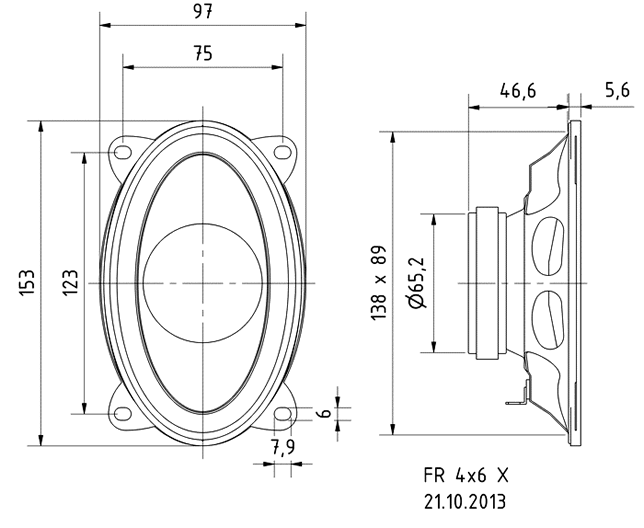

      Driver Dimensions

      Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
      Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

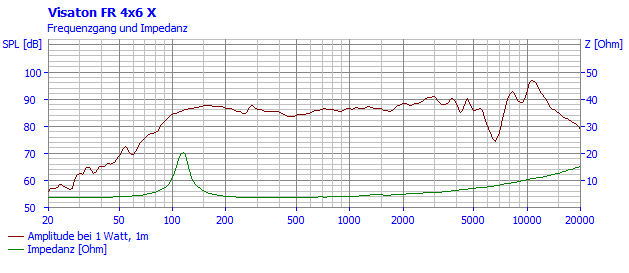

      Frequency and Impedance Response

      Loudspeaker Frequency and Impedance Response Graph
      Loudspeaker Frequency and Impedance Response Graph
