BF 32 4 Ohm

Thumbnail Filmstrip of BF 32 4 Ohm Images

    Purchase BF 32 4 Ohm

    SKU: V-2243-BF32 BF 32 4 Ohm

    $21.00 each
    Brand: Visaton
    Shipping Weight: 0.05 kg
    Quantity in Basket:  None







    Visaton Speaker Driver - BF 32 - 4Ohm Miniature Wideband Driver
    Art. No. 2243

    Visaton BF32.
    Visaton BF32.
    Visaton BF32 - 4 Ohm



    Characteristics and Sound Properties
    3.2 cm (1.3") fullrange speaker with a wide and balanced frequency response and very good low range reproduction. With powerful Neodymium driver. Suitable for applications where slim construction and good music and speech reproduction are requested. Square basket with four mounting holes for easy mounting.

    Typical applications:
    - Flat TVs
    - Information terminals
    - Other compact devices speech and music reproduction



    Technical Specifications

    Rated power 2 W
    Maximum power 5 W
    Nominal impedance Z 4 Ohm
    Frequency response
    150–20000 Hz
    Mean sound pressure level 78 dB (1W/1m)
    Resonance frequency fs 220 Hz
    Voice coil diameter 20 mm
    Height of winding 3 mm
    Cutout diameter 31.5 mm
    Net weight 0.028 kg
    Connections Soldering

    Temperature Range





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

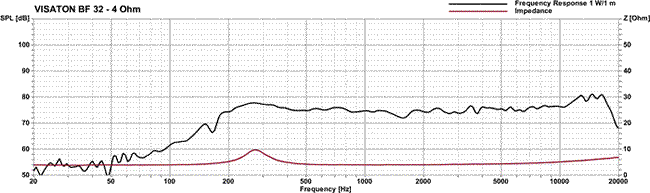

    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
