BF 45 - 4 Ohm

Thumbnail Filmstrip of BF 45 - 4 Ohm Images

    Purchase BF 45 - 4 Ohm

    SKU: V-2240-BF45 BF 45 - 4 Ohm

    $33.00 each
    Brand: Visaton
    Quantity in Basket:  None

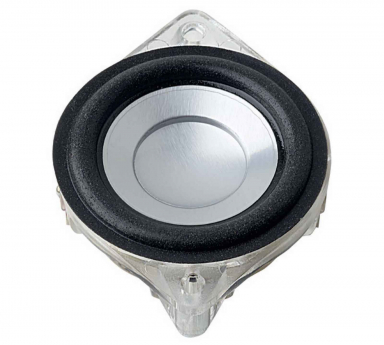

    Visaton Speaker Driver - BF 45 - 4 Ohm Full Range Miniature Speaker
    Art. No. 2240

    Visaton BF45 - 4 Ohm.
    Visaton BF 45 - 4 Ohm



    Characteristics and Sound Properties
    4.5 cm (1.8") fullrange speaker with aluminium diaphragm and transparent plastic basket with two mounting holes. Balanced frequency response and very good low range reproduction. Suitable for applications where slim construction and good music and speech reproduction are requested.



    Technical Specifications

    Rated power 4 W
    Maximum power 8 W
    Nominal impedance Z 4 Ohm
    Frequency response
    90-20000 Hz
    Mean sound pressure level 79 dB (1W/1m)
    Resonance frequency fs 160 Hz
    Height of front pole-plate 3 mm
    Voice coil diameter 17 mm
    Height of winding 4 mm
    Cutout diameter 45 mm
    Net weight 32g
    Temperature range -25 ... 70 °C

    Temperature Range





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
