FRS 5 X - 8 Ohm

Thumbnail Filmstrip of FRS 5 X - 8 Ohm Images

    Purchase FRS 5 X - 8 Ohm

    SKU: V-2235-FRS5X FRS 5 X - 8 Ohm

    $24.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - FRS 5 X - 8 Ohm Full Range
    Art. No. 2235

    Visaton FRS5X - 8 Ohm Full Range.

    Visaton FRS5X - 8 Ohm Full Range



    Characteristics and Sound Properties
    5 cm (2") full-range speaker with black basket and two fixing lugs. Due to its low resonant frequency the frequency response starts already at 120 Hz. Suitable as full-range speaker and medium-range driver in speaker systems for HiFi and background music and for 100 V PA systems. Thanks to the slim construction, also suitable as a control speaker in electronic devices.

    Typical applications:-
    - Very narrow network column speakers
    - Control speaker for electronic devices
    - Model construction
    - Electronic musical instruments

    Attributes:-

    - Moisturised cone
    - Metal basket



    Technical Specifications

    Rated power 5 W
    Maximum power 8 W
    Nominal impedance Z 8 Ohm
    Frequency response
    120–20000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Opening angle (-6 dB) 180°/4000 Hz
    Resonance frequency fs 190 Hz
    Voice coil diameter 14 mm
    Cutout diameter 46 mm
    Net weight 0.14 kg
    DC resistance Rdc 7.7 Ohm
    Mechanical Q factor Qms 3.49
    Electrical Q factor Qes 0.88
    Total Q factor Qts 0.7
    Equivalent volume Vas 0.23 litres
    Effective piston area Sd 12.5 cm2
    Dynamically moved mass Mms 0.7 grams
    Force factor Bxl 2.67 Tm
    Temperature range -25 ... 70 °C

    Temperature Range

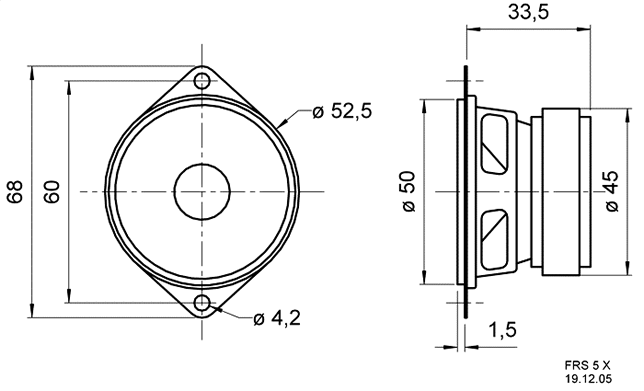

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

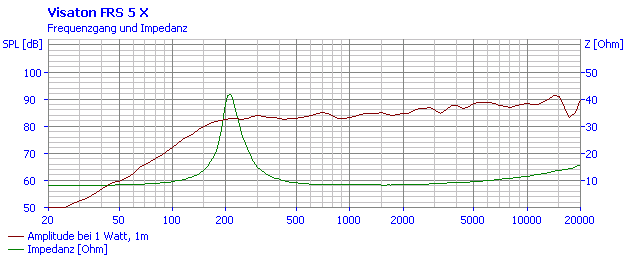

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

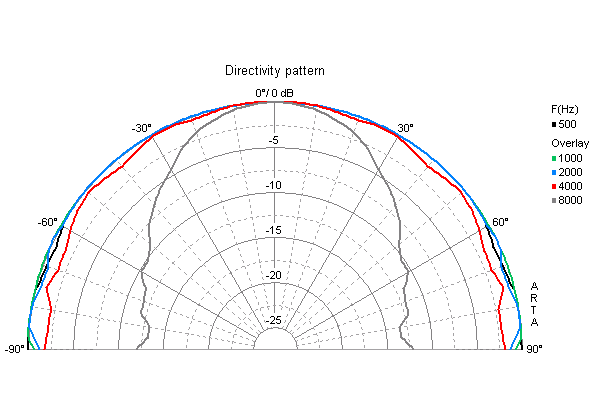

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
