FRWS 5 SC - 8 Ohm

Thumbnail Filmstrip of FRWS 5 SC - 8 Ohm Images

    Purchase FRWS 5 SC - 8 Ohm

    SKU: V-2220-FRWS5SC FRWS 5 SC - 8 Ohm

    $28.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - FRWS 5 SC - 8 Ohm Full Range
    Art. No. 2220

    Visaton FRWS 5 SC - 8 Ohm Full Range.
    Visaton FRWS5SC- 8 Ohm Full Range



    Characteristics and Sound Properties
    Magnetically shielded 5 cm (2") full-range driver with highly compact construction due to light-weight alnico magnet. Features balanced frequency response from 350 Hz and good omnidirectional sound distribution. Particularly suitable for music and voice reproduction in multimedia applications such as TV's, PC's etc.

    Typical applications:-
    - Video monitoring screens
    - TVs
    - Control speaker for electronic devices
    - Model construction

    Attributes:-

    - Moisturised cone
    - Metal basket
    - Magnetically shielded



    Technical Specifications

    Rated power 4 W
    Maximum power 8 W
    Nominal impedance Z 8 Ohm
    Frequency response
    200–20000 Hz
    Mean sound pressure level 80 dB (1W/1m)
    Opening angle (-6 dB) 180°/4000 Hz
    Excursion limit ± 2 mm
    Resonance frequency fs 350 Hz
    Voice coil diameter 14 mm
    Height of winding 3.5 mm
    Cutout diameter 45 mm
    Net weight 0.052 kg
    DC resistance Rdc 7.2 Ohm
    Mechanical Q factor Qms 4.1
    Electrical Q factor Qes 9.35
    Total Q factor Qts 2.85
    Equivalent volume Vas 0.2 litres
    Effective piston area Sd 12 cm2
    Dynamically moved mass Mms 0.5 grams
    Force factor Bxl 1 Tm
    Inductance of the voice coil L 0.1 mH
    Temperature range -25 ... 70 °C

    Temperature Range

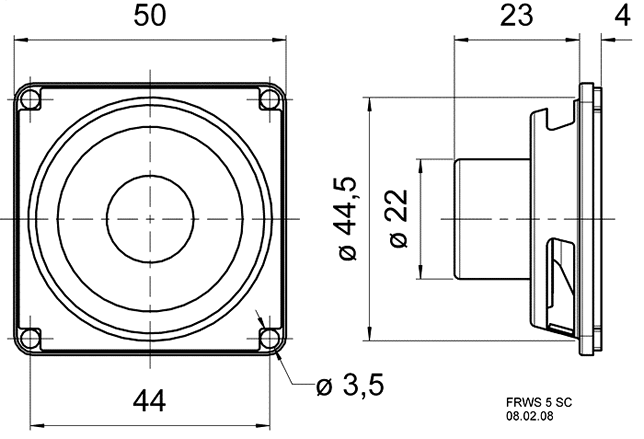

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

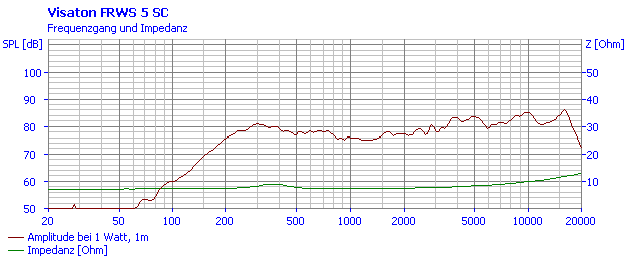

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

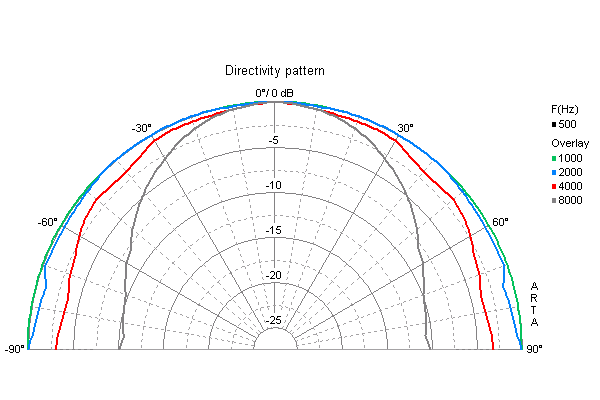

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
