FRWS 4 ND - 8 Ohm

Thumbnail Filmstrip of FRWS 4 ND - 8 Ohm Images

    Purchase FRWS 4 ND - 8 Ohm

    SKU: V-2207-FRWS4ND FRWS 4 ND - 8 Ohm

    $27.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - FRWS 4 ND - 8 Ohm Full Range
    Art. No. 2207

    Visaton FRWS4ND - 8 Ohm Full Range.
    FRWS4ND - 8 Ohm Full Range.

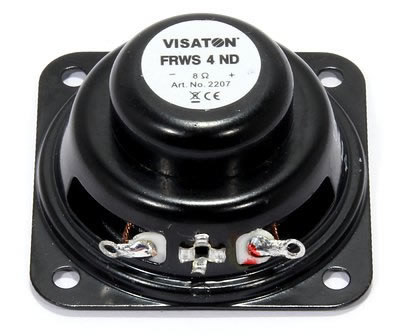

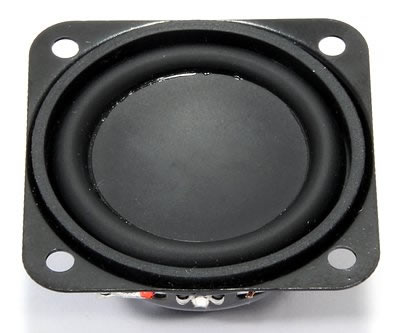

    Visaton FRWS4ND - 8 Ohm Full Range Driver



    Characteristics and Sound Properties
    4 cm (1.6") full-range speaker with coated paper membrane and black metal basket. Compact design thanks to neodymium. The cooperation of the separate components lead to a very homogeneous sound quality, so that the loudspeaker can be used in miniature hi-fi speakers as well.



    Technical Specifications

    Rated power 2 W
    Maximum power 3 W
    Nominal impedance Z 8 Ohm
    Frequency response
    150-20000 Hz
    Mean sound pressure level 78 dB (1W/1m)
    Net weight 0.028 kg

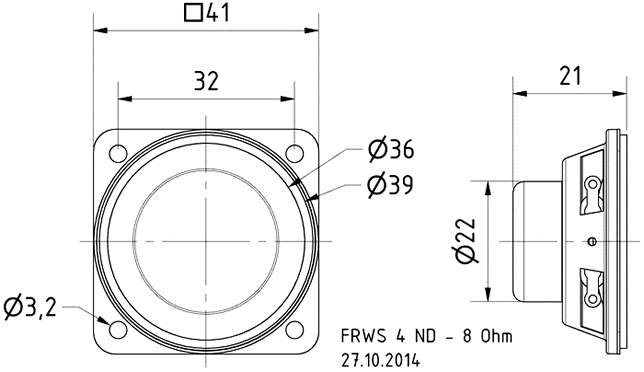

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph

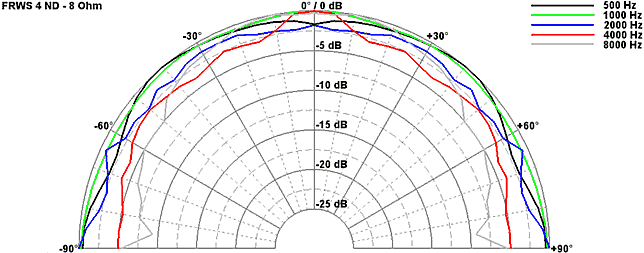

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
