FR 58 - 4 Ohm

Thumbnail Filmstrip of FR 58 - 4 Ohm Images

    Purchase FR 58 - 4 Ohm

    SKU: V-2204-FR58 FR 58 - 4 Ohm

    $17.00 each - on backorder
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - FR 58 - 4 Ohm Full Range Loudspeaker
    Art. No. 2204

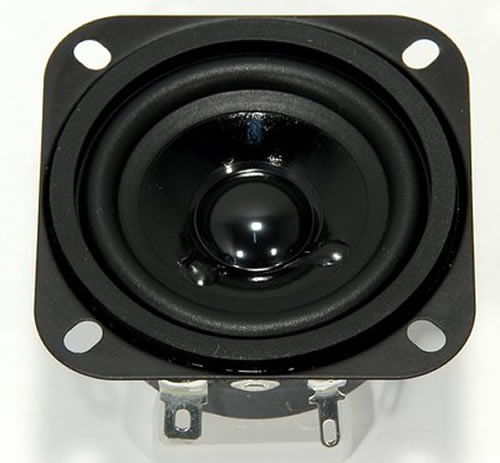

    Visaton FR58 - 4 Ohm Full Range Speaker

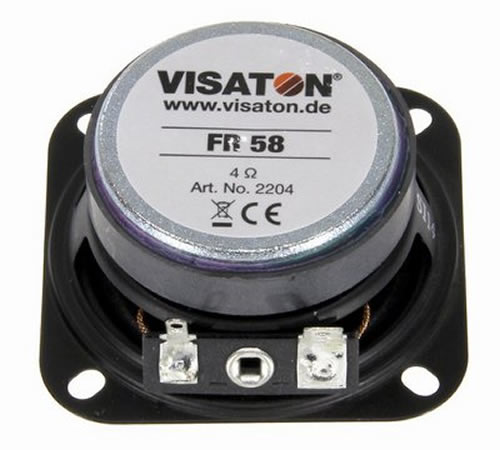

    FR58 - 4 Ohm Full Range Speaker Rear
    Visaton FR58 - 4 Ohm Full Range Speaker



    Characteristics and Sound Properties
    5.8 cm (2.3") full-range speaker with coated paper cone, rubber surround, squared metal basket with 4 mounting holes and rubber gasket. 4.8 x 0.5 mm (+) and 2.8 x 0.5 mm (-) contact pins. Very linear and wide frequency response and low resonant frequency provide a wide range of applications, including Hi-Fi applications.
    *) IP protection class for front side when built into a sealed enclosure



    Technical Specifications

    Rated power 10 W
    Maximum power 12 W
    Nominal impedance Z 4 Ohm
    Frequency response
    120–20000 Hz
    Mean sound pressure level 81 dB (1 W/1 m)
    Maximum linear displacement ± 0.55 mm
    (= 1.1 mm)
    Excursion limit 5.5 mm
    Resonance frequency fs 190 Hz
    Height of front pole-plate 2.4 mm
    Voice coil diameter 14 mm
    Height of winding 3.5 mm
    Cutout diameter 57 mm
    Net weight 0.13 kg
    Connections 5.2 x 0.5 mm (+)
    2.8 x 0.5 mm (−)
    Protective system IP 64 *)
    Temperature range −40 ... +100 °C

    Temperature Range  IP64  Protection system





    Driver Dimensions

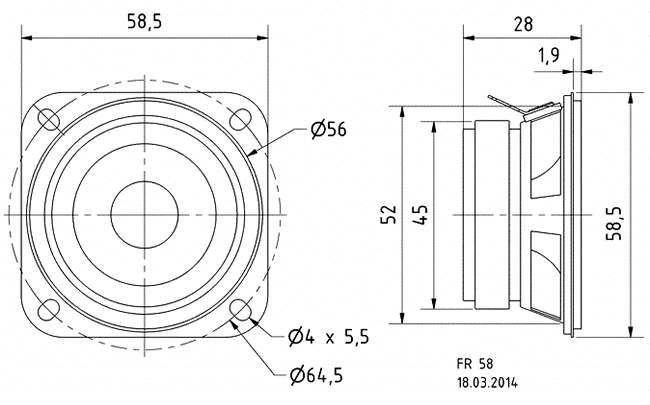

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

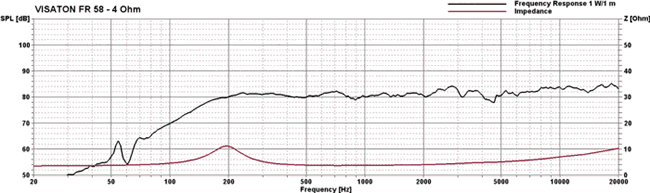

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
