FR 10 WP White - 4 Ohm

Thumbnail Filmstrip of FR 10 WP White - 4 Ohm Images

    Purchase FR 10 WP White - 4 Ohm

    SKU: V-2110-FR10WP FR 10 WP White - 4 Ohm

    $41.00 each
    Brand: Visaton
    Quantity in Basket:  None

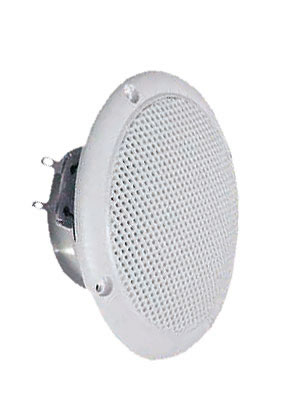

    Visaton Speaker Driver - FR 10WP - 4 Ohm Saltwater Resistant White
    Art. No. 2110

    isaton FR10WP - 4 Ohm saltwater resistant white.
    Visaton FR10WP - 4 Ohm Saltwater Resistant White



    Characteristics and Sound Properties
    Saltwater resistant 10 cm (4") full-range driver with moulded plastic cone, plastic basket and grille. Absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads. Clear-cut high-range output. White colour. *) IP protection class for front side when built into a sealed enclosure.

    Typical applications:-
    - Outdoor PA systems
    - Loudspeaker for solariums and damp locations
    - Boats, ships and open vehicles

    Attributes:-
    - Suitable for outdoor applications
    - Seawater proof
    - Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)
    - Plastic: ASA (UL 94:HB; UV-/weather-proof)
    - Ball-resistant



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 4 Ohm
    Frequency response 80–16000 Hz
    Mean sound pressure level 85 dB (1W/1m)
    Opening angle (-6 dB) 76°/4000 Hz
    Excursion limit ± 2 mm
    Resonance frequency fs 120 Hz
    Magnetic induction 0.85 T
    Magnetic flux 290 µWb
    Height of front pole-plate 4 mm
    Voice coil diameter 20 mm
    Height of winding 5 mm
    Cutout diameter 101 mm
    Net weight 0.275 kg
    DC resistance Rdc 3.8 Ohm
    Mechanical Q factor Qms 3.13
    Electrical Q factor Qes 2.14
    Total Q factor Qts 1.27
    Equivalent volume Vas 2.1 litres
    Effective piston area Sd 50 cm2
    Dynamically moved mass Mms 5 grams
    Force factor Bxl 2.75 Tm
    Inductance of the voice coil L 0.3 mH
    Colour White
    Protective System IP65 *)
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)

    Temperature Range IP 65 Protection

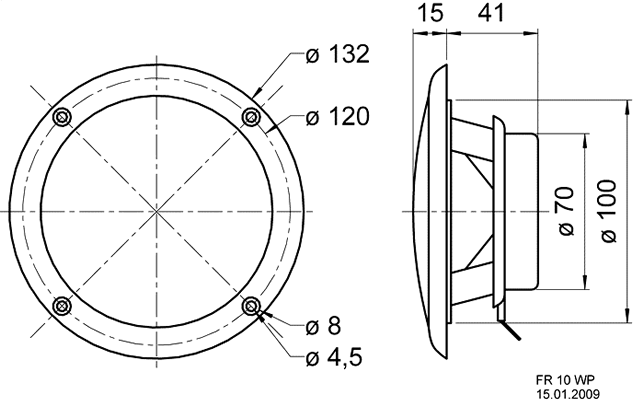

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

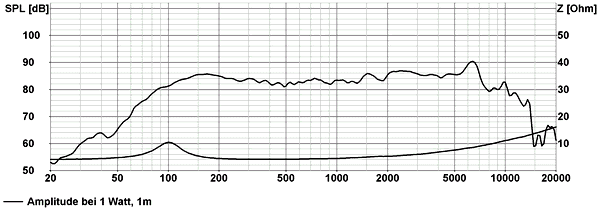

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

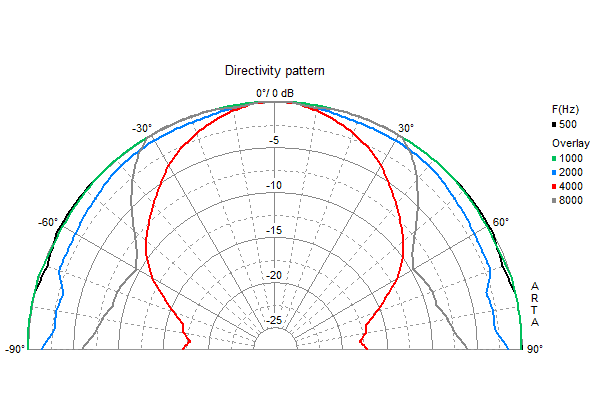

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
