FR 12 - 8 Ohm

Thumbnail Filmstrip of FR 12 - 8 Ohm Images

    Purchase FR 12 - 8 Ohm

    SKU: V-2061-FR12 FR 12 - 8 Ohm

    $31.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - FR 12 - 8 Ohm Full Range
    Art. No. 2061

    Visaton FR12 - 8 Ohm Full Range.
    Visaton FR12 - 8 Ohm Full Range



    Characteristics and Sound Properties
    13 cm (5") fullrange speaker system with an inverted cone displacement. Very compact design making this the ideal choice where space is at a premium.

    Typical applications:-
    - Built into cars, buses or trains
    - Electronic musical instruments
    - Monitoring speaker for electronic devices



    Technical Specifications

    Rated power 15 W
    Maximum power 40 W
    Nominal impedance Z 8 Ohm
    Frequency response 70–18000 Hz
    Mean sound pressure level 85 dB (1W/1m)
    Dispersion angle (-6 dB) 79°/4000 Hz
    Excursion limit ± 2.5 mm
    Resonance frequency fs 110 Hz
    Magnetic induction 0.8 T
    Magnetic flux 150 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 4.5 mm
    Cutout diameter 114 mm
    Net weight 0.284 kg
    DC resistance Rdc 6.8 Ohm
    Mechanical Q factor Qms 5.61
    Electrical Q factor Qes 2.8
    Total Q factor Qts 1.87
    Equivalent volume Vas 8.7 litres
    Effective piston area Sd 87 cm2
    Dynamically moved mass Mms 3.8 grams
    Force factor Bxl 1.7 T m
    Inductance of the voice coil L 0.22 mH
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Temperature range −25 ... 70 °C

    Temperature Range





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

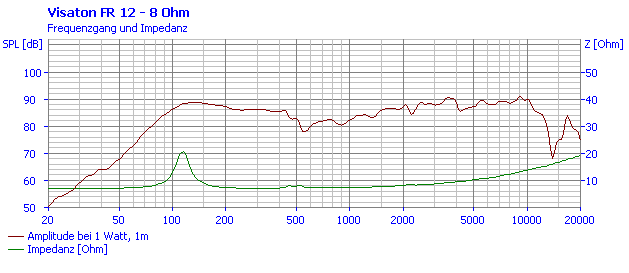

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
