R 10 STR - 100V

Thumbnail Filmstrip of R 10 STR - 100V Images

    Purchase R 10 STR - 100V

    SKU: V-2039-R10STR-100 R 10 STR - 100V

    $75.00 each - special order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - R10S-TR - 100 V Fullrange 10 cm or 4 Inch
    Art. No. 2039

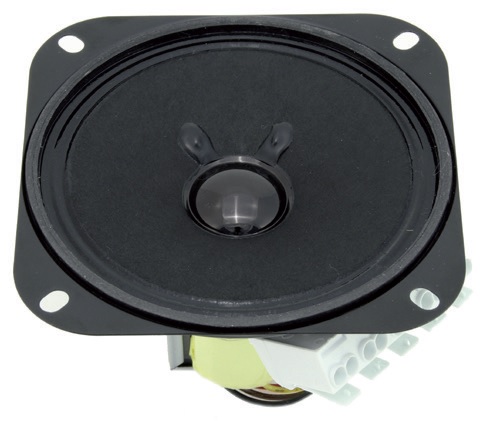

    Visaton R10 S-TR 100 V Fullrange Speaker

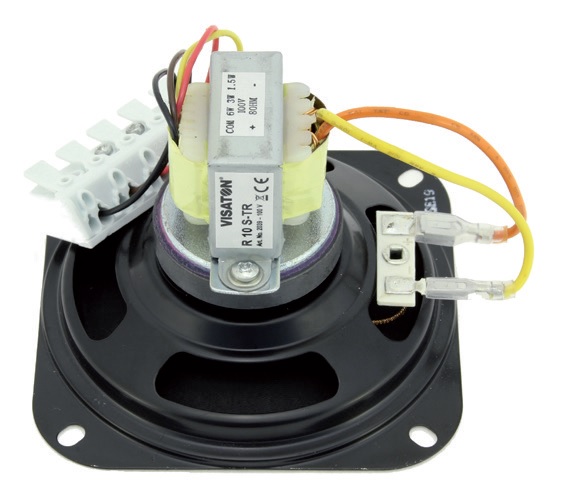

    Visaton R10 S-TR 100 V Fullrange Speaker Rear View
    Visaton R10 S-TR 100 V Fullrange Speaker 10 cm or 4 Inch



    Characteristics and Sound Properties
    10 cm (4") fullrange speaker with 100 V transformer. High efficiency and balanced frequency response, very good speech intelligibility.

    Attributes:

    • 100 V transformer
    • 5-pin spring terminal



    Technical Specifications

    Frequency Response 100-13000 Hz
    Mean sound pressure level 90 dB (1 W/1 m)
    Net weight 0.315 kg
    Transformer matching
    6 W/3 W/1.5 W
    Temperature range -40 ... 70 °C

    Temperature Range







    Driver Dimensions

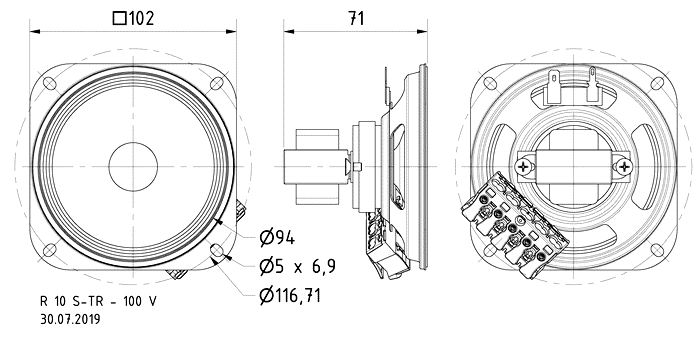

    Visaton R10 S-TR 100 V Fullrange Speaker Dimensions
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph
