FRW 10 N - 8 Ohm

Thumbnail Filmstrip of FRW 10 N - 8 Ohm Images

    Purchase FRW 10 N - 8 Ohm

    SKU: V-2032-FRW10N-8 FRW 10 N - 8 Ohm

    $21.00 each - on backorder
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - FRW 10 N- 8 Ohm Fullrange Speaker
    Art. No. 2032

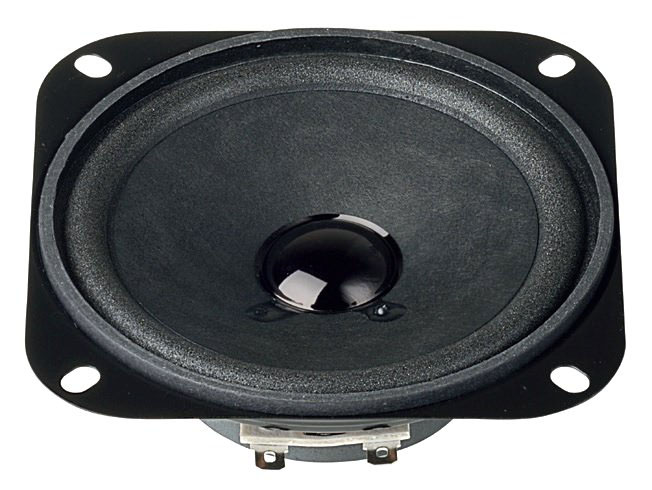

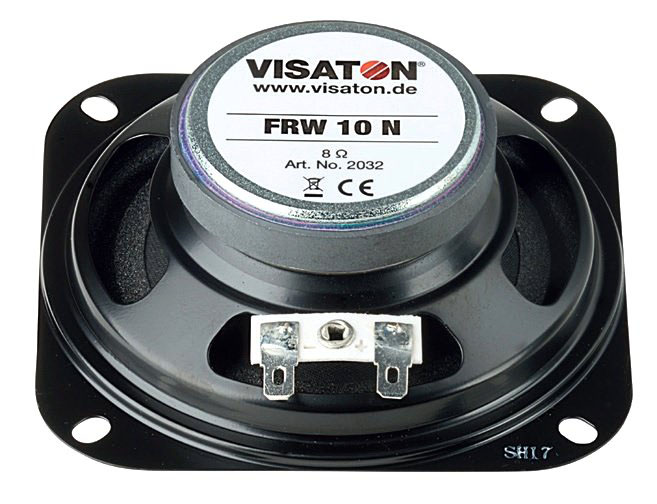

    Visaton FR10 N - 8 Ohm fullrange speakerVisaton FR10 N - 8 Ohm fullrange speaker rear view

    Visaton FR10 N - 8 Ohm fullrange speaker



    Characteristics and Sound Properties
    10 cm (4") full-range speaker with high efficiency and balanced frequency response. Especially suitable as control speaker for electronic devices. Due to the lower resonance frequency better bass-reproduction.



    Technical Specifications

    Rated power 10 W
    Maximum power 20 W
    Nominal impedance Z 8 Ohm
    Frequency response

    80–17000 Hz
    Mean sound pressure level 86 dB (1 W/1 m)
    Resonance frequency fs 120 Hz
    Net weight 0.16 kg
    Connections 5.2 x 0.5 mm (+)
    5.2 x 0.5 mm (−)
    Temperature range −25 ... 70 °C

    Temperature Range







    Driver Dimensions

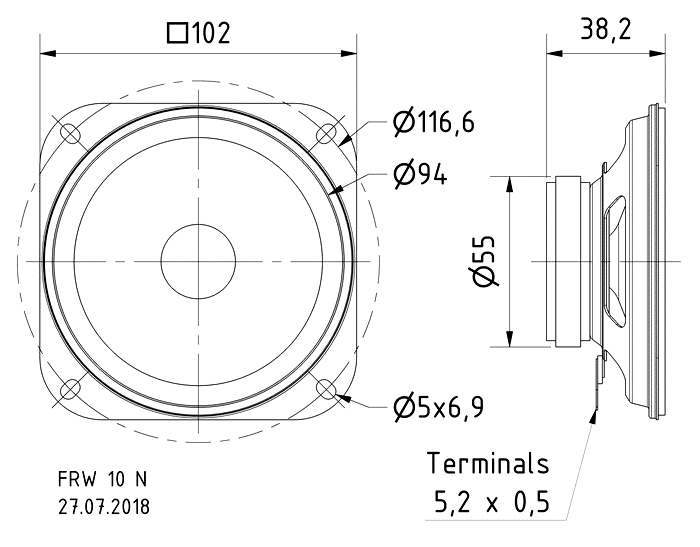

    Visaton FR10 N - 8 Ohm fullrange speaker dimensions
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

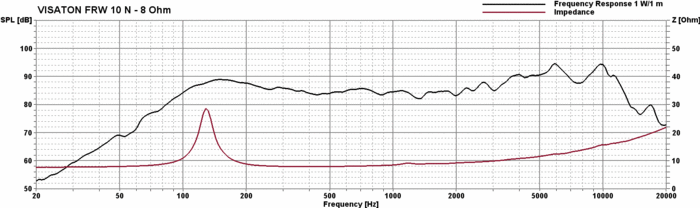

    Visaton FR10 N - 8 Ohm fullrange speaker frequency response
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

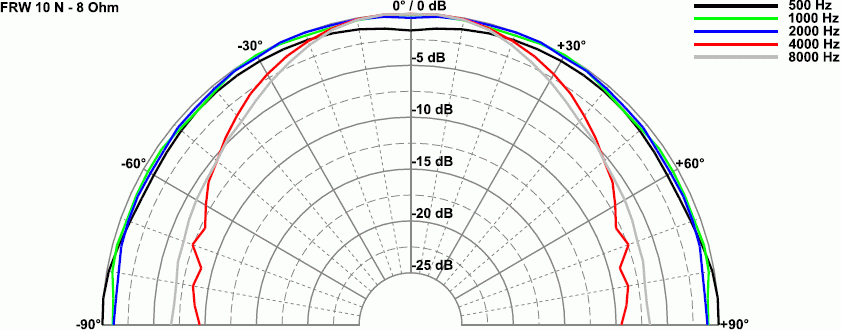

    Visaton FR10 N - 8 Ohm fullrange speaker directivity pattern
    Loudspeaker Directivity Pattern (on and off axis response)
