FR 8 JS - 8 Ohm

Thumbnail Filmstrip of FR 8 JS - 8 Ohm Images

    Purchase FR 8 JS - 8 Ohm

    SKU: V-2000-FR8JS FR 8 JS - 8 Ohm

    $23.00 each
    Brand: Visaton
    Quantity in Basket:  None

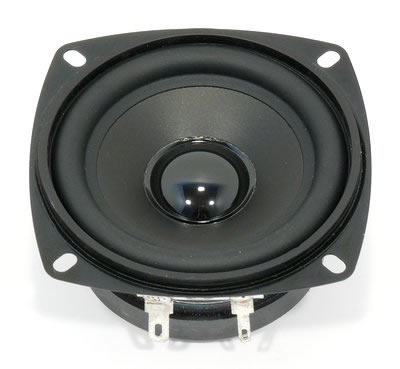

    Visaton Speaker Driver - FR 8 JS - 8 Ohm Full Range Speaker
    Art. No. 2000

    Visaton FR8 JS - 8 Ohm.
    Visaton FR8JS - 8 Ohm Full Range Speaker



    Characteristics and Sound Properties
    8 cm (3.3") full-range speaker with waterproof polypropylene cone, good bass reproduction and balanced frequency response. Especially suitable as built-in speaker for music reproduction and as driver for 100 V network column speakers.

    Typical applications:-
    - Narrow network column speakers
    - Control speakers for electronic devices
    - Ceiling-mounted speakers in railway carriages and buses
    - Electronic musical instruments

    Attributes:-
    - Polypropylene cone
    - Metal basket



    Technical Specifications

    Rated power 10 W
    Maximum power 15 W
    Nominal impedance Z 8 Ohm
    Frequency response
    80–20000 Hz
    Mean sound pressure level 83 dB (1 W/1 m)
    Opening angle (-6 dB) 180°/4000 Hz
    Excursion limit ± 2mm
    Resonance frequency fs 130 Hz
    Magnetic induction 1.4 T
    Magnetic flux 200 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 15 mm
    Height of winding 5 mm
    Cutout diameter 75 mm
    Net weight 0.24 kg
    DC resistance Rdc 7.2 Ohm
    Mechanical Q factor Qms 4.30
    Electrical Q factor Qes 1.74
    Total Q factor Qts 1.24
    Equivalent volume Vas 0.84 litres
    Effective piston area Sd 30 cm2
    Dynamically moved mass Mms 2.3 grams
    Force factor Bxl 2.77 Tm
    Inductance of the voice coil L 0.6 mH
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Protective System IP 64 *)
    Temperature range −25 ... 70 °C

    Temperature Range

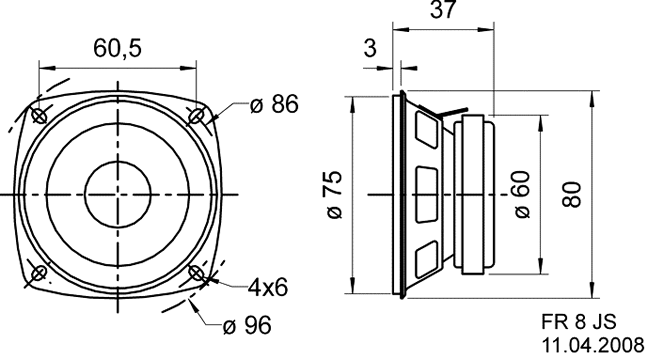

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

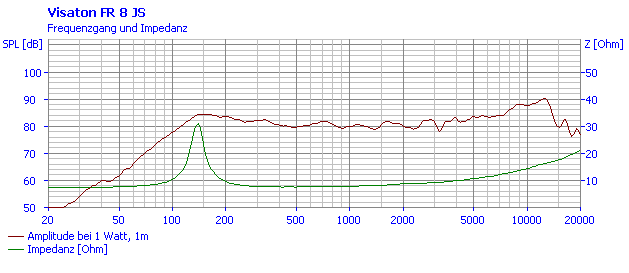

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

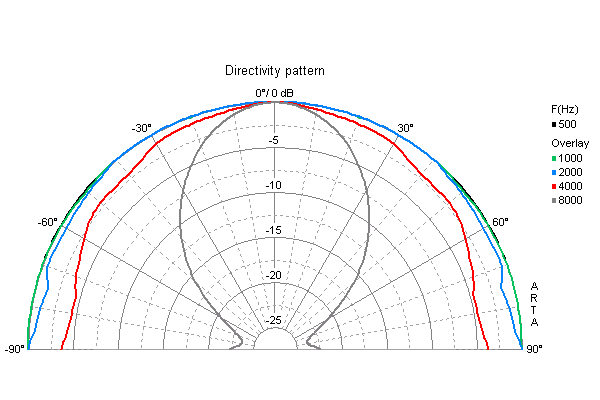

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
