    Visaton Speaker Driver - GF 200 - 2 x 4 Ohm High End Dual Coil Woofer
    Art. No. 1330

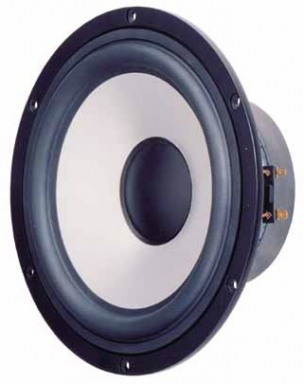

    Visaton GF200 - 2 x 4 ohm High End Dual Coil Woofer.

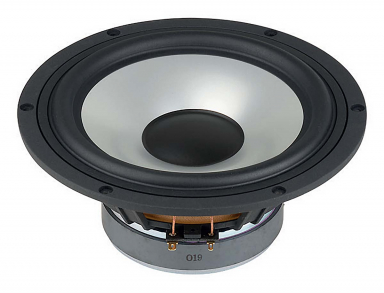

    Visaton GF200 - 2 x 4 Ohm High End Dual Coil Woofer



    Characteristics and Sound Properties
    20 cm (8") High-End dual coil woofer with black glass fibre cone, solid aluminium die-cast basket and elastic rubber surround. Designed for multi-purpose applications due to 2 x 4 ohms double voice-coil, with excellent properties as 8 ohms drivers in series configuration. The long stroke voice-coil in conjunction with the extended rear pole plate, the vented damper, the vented magnet and the capton voice-coil carrier guarantees long strokes and highest power handling.

    Possible connections:-
    - (1) one voice coil not connected = 4 Ohm
    - (2) both voice coils in series = 8 Ohm
    - (3) both voice coils in parallel = 2 Ohm



    Technical Specifications

    Rated power 120 W
    Maximum power 180 W
    Nominal impedance Z (1) 4 Ohm
    (2) 8 Ohm
    (3) 2 Ohm
    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    fu-8000 Hz
    Mean sound pressure level (1) 85 dB (1 W/1 m)
    (2) 88 dB (1 W/1 m)
    (3) 88 dB (1 W/1 m)
    Dispersion angle (-6 dB) 46°/4000 Hz
    Excursion limit ± 10 mm
    Resonance frequency fs (1) 34 Hz
    (2) 30 Hz
    (3) 35 Hz
    Magnetic induction 1.3 T
    Magnetic flux 930 µWb
    Height of front pole-plate 6 mm
    Voice coil diameter 38 mm
    Height of winding 18 mm
    Cutout diameter 190 mm
    Net weight 2.5 kg
    DC resistance Rdc (1) 2.9 Ohm
    (2) 5.8 Ohm
    (3) 1.4 Ohm
    Mechanical Q factor Qms (1) 4.51
    (2) 4.12
    (3) 4.33
    Electrical Q factor Qes (1) 0.93
    (2) 0.37
    (3) 0.44
    Total Q factor Qts (1) 0.77
    (2) 0.34
    (3) 0.39
    Equivalent volume Vas (1) 62 litres
    (2) 68 litres
    (3) 57 litres
    Effective piston area Sd 214 cm2
    Dynamically moved mass Mms 25 grams
    Force factor Bxl (1) 4.6 Tm
    (2) 9.2 Tm
    (3) 4.6 Tm
    Inductance of the voice coil L (1) 0.4 mH
    (2) 1.1 mH
    (3) 0.3 mH



    Recommended Cabinet Sizes

    Volume / Principle BR Port fb
    30 litre / bass reflex BR 25.50 40 Hz
    50 litre / bass reflex BR 25.50 31 Hz
    70 litre / bass reflex BR 25.50 27 Hz
    fb = Enclosure resonance (bass reflex system)



    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

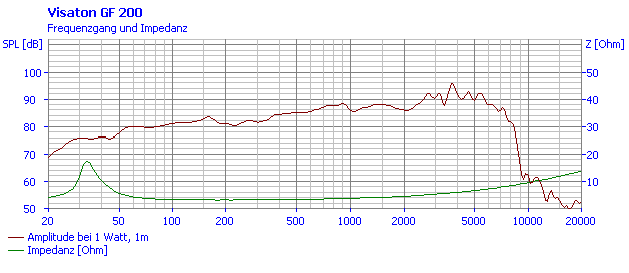

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    (1) one voice coil not connected = 4 Ohm

    GF200

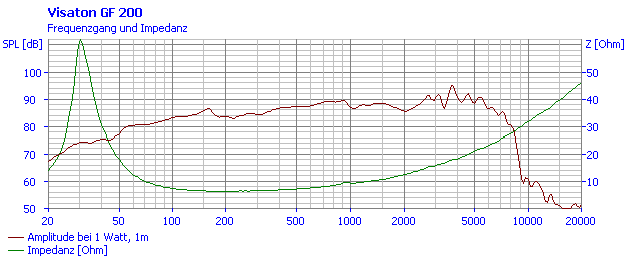

    (2) both voice coils in series = 8 Ohm

    Visaton GF 200 2 x 4
    (3) both voice coils in parallel = 2 Ohm


    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)



    Waterfall Spectrum

    Loudspeaker Waterfall Spectrum Chart
    Loudspeaker Waterfall Spectrum Chart
