DSM 25 FFL - 8 Ohm

Thumbnail Filmstrip of DSM 25 FFL - 8 Ohm Images

    Purchase DSM 25 FFL - 8 Ohm

    SKU: V-1153-DSM25FFL DSM 25 FFL - 8 Ohm

    $150.00 each
    Brand: Visaton
    Quantity in Basket:  None

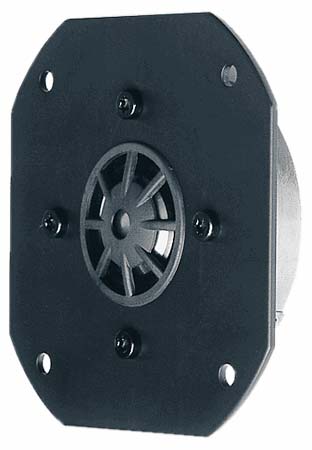

    Visaton Speaker Driver - DSM 25 FFL - 8 Ohm High-End Tweeter
    Art. No. 1153

    Visaton DSM25FFL - 8 Ohm..
    Visaton DSM25FFL - 8 Ohm



    Characteristics and Sound Properties
    25 mm (1") High-End titanium dome driver for the highrange above 2000 Hz. Due to the enormously strong and ultra-light titanium dome and in conjunction with a highly damped sypronyle surround, linear frequency response and no partial oscillations. Due to the enormously high magnetic flux in the ferrofluid-filled air-gap high efficiency and high power handling are possible.



    Technical Specifications

    Nominal power handling with high pass 80 W (12 dB/Oct.; 2000 Hz)
    Peak power handling with high pass 140 W (12 dB/Oct.; 2000 Hz)
    Nominal impedance Z 8 Ohm
    Frequency response 1000-30000 Hz
    Mean sound pressure level 90 dB (1 W/1 m)
    Dispersion angle (-6 dB) 138°/8000 Hz
    Resonance frequency fs 1600 Hz
    Magnetic induction 1.7 T
    Magnetic flux 425 µWb
    Height of front pole-plate 2.5 mm
    Voice coil diameter 25 mm
    Height of winding 2 mm
    Cutout diameter 80 mm
    Net weight 0.53 kg
    DC resistance Rdc 5.9 Ohm
    Mechanical Q factor Qms 1.83
    Electrical Q factor Qes 1.87
    Total Q factor Qts 0.92
    Effective piston area Sd 4.9 cm2

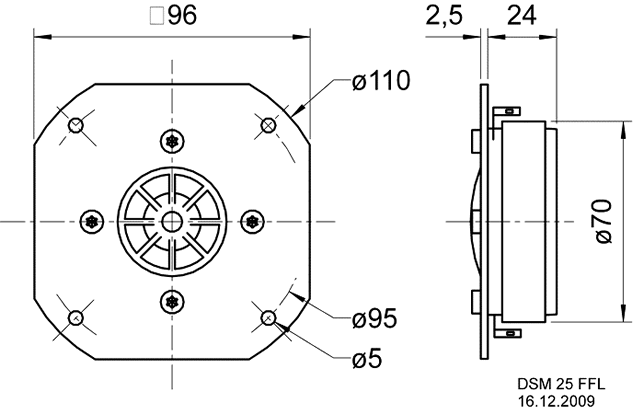

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

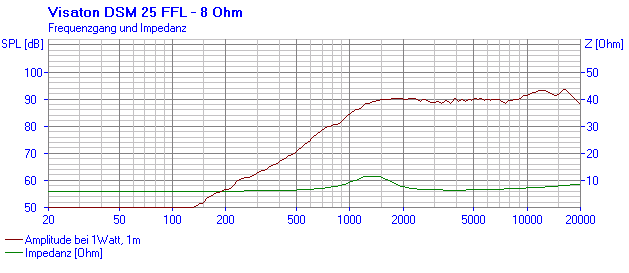

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

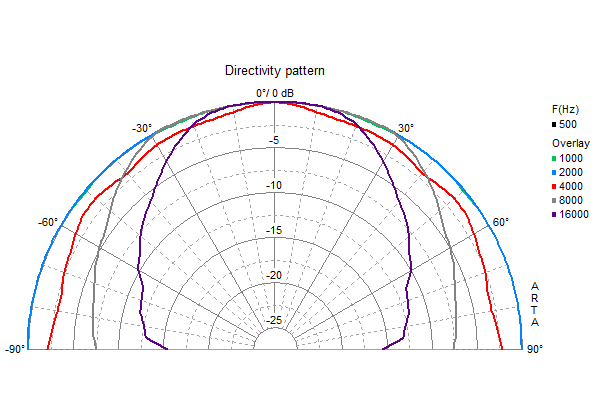

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)

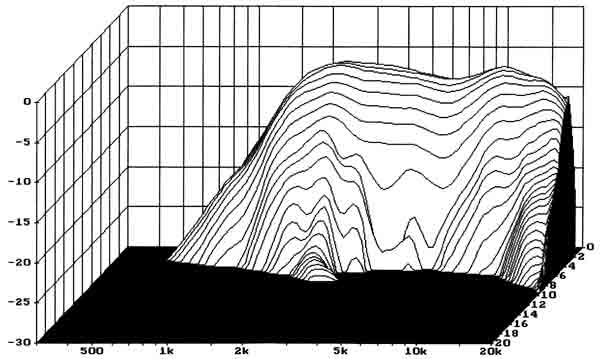

    Waterfall Spectrum

    Loudspeaker Waterfall Spectrum Chart
    Loudspeaker Waterfall Spectrum Chart
