USB Charger from 12V Hardwired Module
Description:
This versatile 20W car charging adapter is perfect for a wide array of applications. It is ideal for devices that support USB DCP (Dedicated Charging Port), including but not limited to Apple, Samsung and other Android phones, and will also provide high power for many other devices. The charging voltage adapts to the device when supported, ensuring optimal charging efficiency. As well as phones, you can use it with any other device you want to charge or power in your car via a USB connection. This makes it an essential addition to your vehicle, especially when no other USB charging port is available, or the existing USB port is low powered and results in a slow charge.

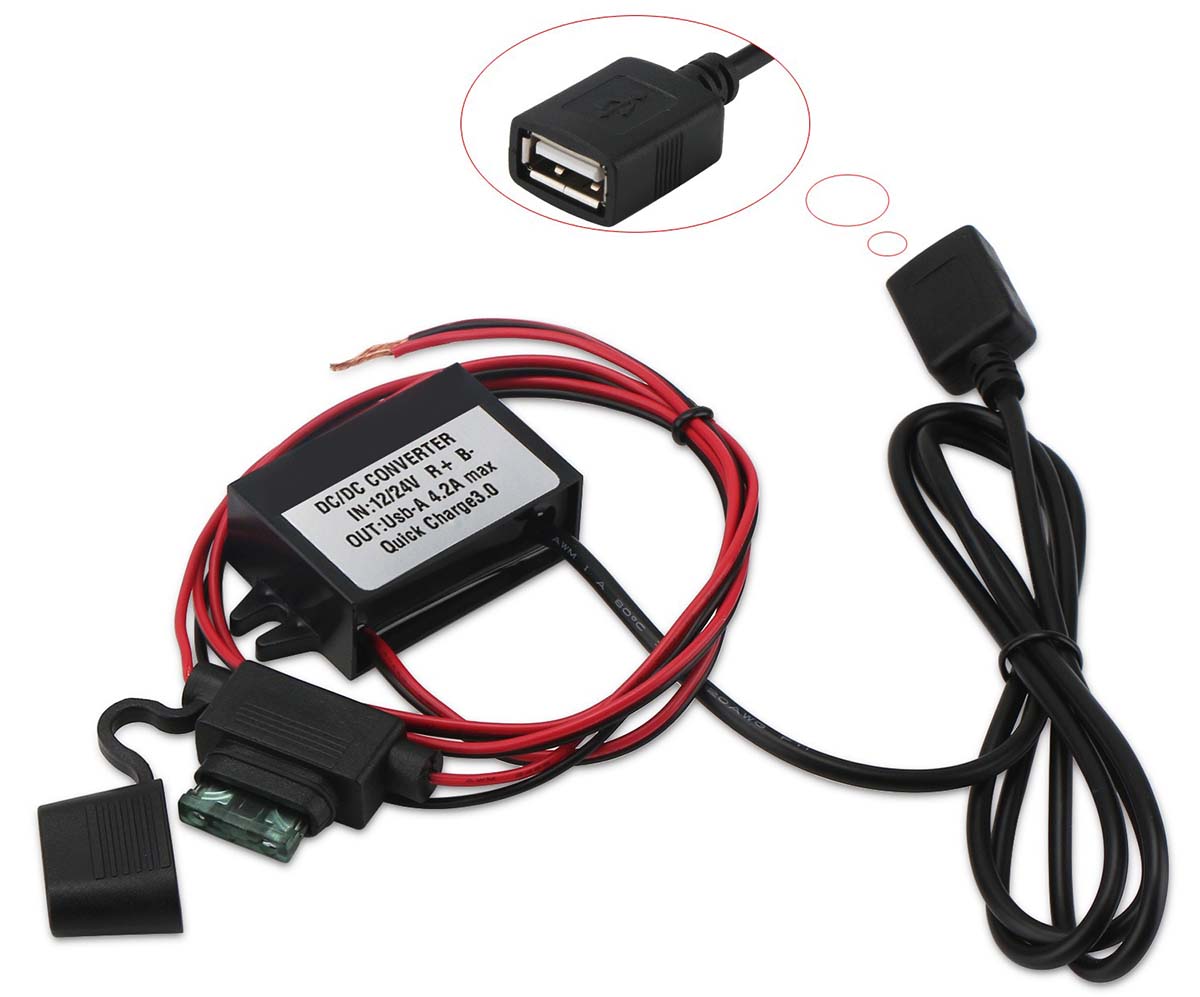

It is a fused, hard-wired USB Type A charging port for vehicles and other 12V or 24V DC supplies. It is wired to a 12V DC (up to 24V DC) supply point, with a fuse supplied. Installation inside the vehicle cabin by a professional installer is recommended.
Key Features:
- 20W Fast Charging: Up to 4.2A and 20W for compatible devices.
- Quick Charge 3.0: QC 3.0 (Quick Charge 3) support for compatible devices.
- Adaptive Voltage: The output voltage adapts to the device, from 3.7 to 12V DC.
- 12V and 24V Vehicles: Runs from 12V up to 24V DC, so it suits cars, trucks, caravans and boats.
- USB DCP Support: Works with devices that support USB DCP, including many Apple, Samsung and Android phones.
- Fused: An inline fuse is supplied, with a protective cap.
- USB Type A Output: A female USB Type A connector on a 72cm lead, so you can fit it where you need it.
Typical Uses:
- Adding a USB charging point to a vehicle that has none.
- Replacing a low powered USB port that charges slowly.
- Charging or powering phones, tablets, GPS units and other USB devices in the car.
- Neat, hidden installations behind the dash, in a console or in a caravan or boat.
Specifications:
- Input voltage: 12 to 24V DC
- Output voltage: 3.7 to 12V DC (automatically adaptive depending on device)
- Fused power connection (inline fuse supplied)
- QC 3.0 (Quick Charge 3)
- Maximum output current: 4.2A
- Maximum output power: 20W
- USB Type A female connector
- USB cable length: 72cm (approx.)
- USB DCP applying 1.2V / 2.7V on D+ and D- lines
- Ripple: <150mV
- Operating temperature: -20°C to +65°C
Wiring:
- Red wire: Positive (+), to a switched +12V or +24V supply.
- Black wire: Negative (-), to chassis ground.
- Both wires have bare ends.
Installation Guide:
- 1. Choose a Spot: Mount the module inside the cabin, in a dry place away from heat. Secure it with its mounting tab, and run the USB lead to where it is needed.
- 2. Connect the Black Wire: Connect it to bare metal chassis or battery negative.
- 3. Measure the Supply: Measure the supply, then connect the red wire to a switched +12V or +24V source, such as an ignition or ACC feed. Insulate all joins.
- 4. Fit the Fuse: Fit the fuse and close the cap, then plug in a device and check that it charges.
Important Notes:
- 12V to 24V systems only. Measure the supply first and check it is between 12V and 24V before connecting.
- Use a switched supply, so the module is only powered when the vehicle is on.
- Replace the fuse with the same type and rating only.
- Quick Charge 3.0 needs a compatible device and cable. Other devices, including iPhones, will charge at their normal speed.
- Keep the module dry.
Supplied:
- 1 x USB module with inline fuse
Professional installation is recommended. If installed incorrectly, damage to the unit or the vehicle can result.
