SKU: Speaker-Car-Audio-CX-9152-DVC 4x6 Inch Dual Voice Coil Speaker

Dietz CX-9152 Dual Voice Coil Speaker 4x6 Inch 2x 4 Ohm

Ideal replacement speakers in car audio applications where space is limited. Especially suited for older vehicles utilising single speaker, this will enable a modern car radio to run both left and right channels through the one speaker. Alternatively, original radios requiring 8 Ohms / 10 Ohms can be connected by running the speaker in series. This powerful Dual Voice Coil (DVC) speaker has been designed to give superior performance with Mylar membrane tweeters and coated woofer.

Dietz CX9152 Dual Voice Coil 4x6" speaker.

Technical specifications:

• 2 Way DVC dual voice coil speaker
• Size: 4x6 inches / 97mm x 152 mm (approx.)
• Max. Power: 2x 70 Watt
• RMS Power: 2x 35 Watt
• Coated Woofer
• Mylar Tweeters
• Frequency range: 135-20,000 Hz
• Impedance: 4 + 4 Ohm
• Mounting depth: 49 mm (approx.)
• Tweeter: 30 mm
• Cut out: 90x145 mm (approx.)
• Distace between mounting lugs centre to centre 73mm approx. on short side and 122mm approx on long side.

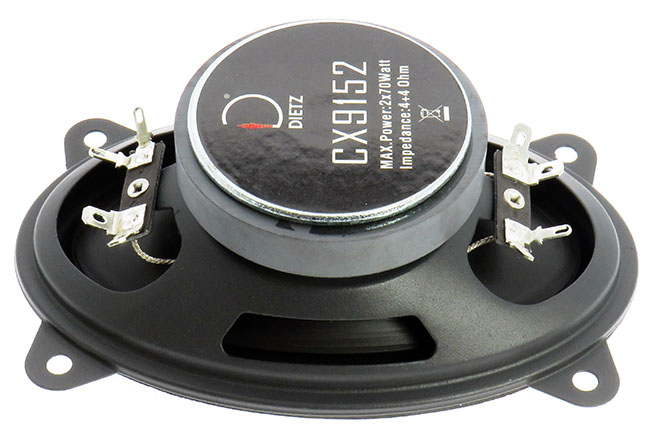

Dietz CX9152 Dual Voice Coil 4x6" speaker rear.

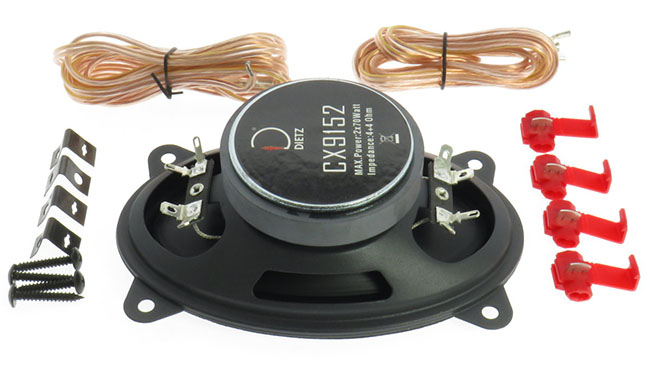

Package contains:

• 1x 4x6 inch DVC Speaker
• 2x Cables
• 4 Screws
• 4 Nuts
