SKU: Resistor-MOX-V-5166-100R-Ohm-10W 100 Ohms 10W Metal Oxide Resistor

Visaton MOX Metal Oxide Film Resistors (10 Watts)

Description
Visaton MOX (Metal Oxide Film) 10-Watt resistors are premium high-power components designed specifically for loudspeaker crossover networks, equalization circuits, and high-frequency audio filters. Unlike standard wire-wound resistors, MOX resistors feature a non-inductive design that preserves high-frequency detail and fast transient response. Engineered for superior thermal stability and high continuous power handling, they provide clean, noise-free level reduction for tweeters and midrange drivers.

Specifications:

• Continuous Load Capacity: 10 Watts
• Tolerance: ±5%
• Body Size: 52 mm long x 8 mm diameter approx. (plus 25 mm wire leads each side)
• Design Type: Non-inductive metal oxide film on high-grade ceramic substrate
• Thermal Properties: High temperature stability and flame-resistant coating
• Note: Colours and body markings may vary depending on resistance value and batch production.

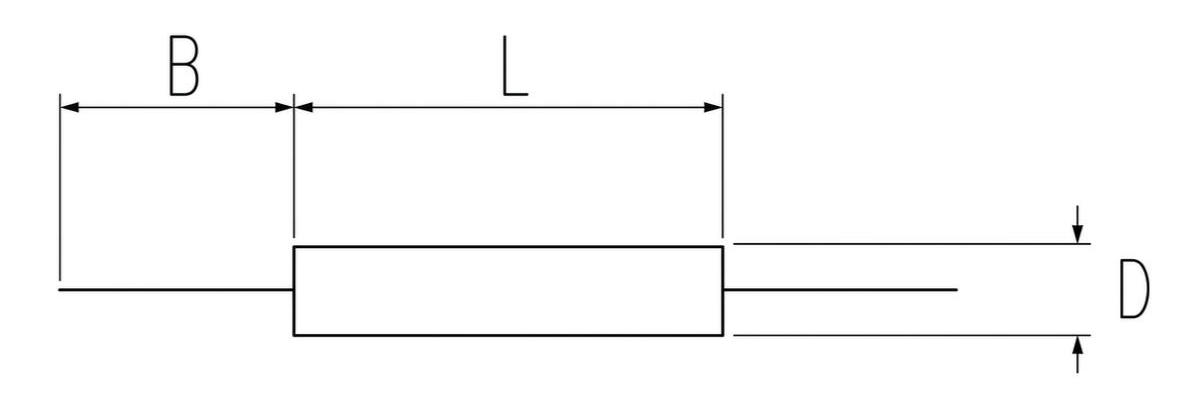

Dimensions:

Approximate Dimensions: Body Length = 52 mm | Wire Lead Length = 25 mm | Body Diameter = 8 mm

How It Works & What It Does
The primary role of a resistor in a crossover network is to convert excess electrical power into thermal energy—typically used in L-pad or series circuits to attenuate (pad down) a high-efficiency driver so it matches the rest of the speaker system.

Traditional ceramic power resistors consist of a wire coil wound around an insulating core. At high frequencies, this coiled wire behaves like an inductor, creating unwanted resistance spikes and phase shifts that muffle delicate tweeter signals. Visaton MOX resistors eliminate this issue by depositing a conductive metal oxide layer directly onto a ceramic core. Because there are no wire windings, residual inductance is virtually zero. This allows fast transient rise times and crystal-clear high-frequency reproduction without altering your crossover point.

How to Use
MOX resistors are ideal for use in high-frequency circuits, particularly in tweeter L-pads, impedance linearisation (Zobel networks), and midrange level matching.

When installing, solder the leads securely into your crossover circuit board or terminal strip. Do not bend the leads directly against the body, leave a small gap to avoid stressing the resistor body. Because power resistors generate heat during high-volume playback, ensure they are mounted with a small air gap around the body rather than pressed tightly against the PCB or enclosure walls. Always select a resistor value and power rating appropriate for your system to ensure reliable, long-term operation.
