RF Explorer Signal Generator Expansion Module

RF Explorer Signal Generator Expansion Board - Australian Local Stock

Description
The RF Explorer Signal Generator Expansion Board is an internal upgrade module designed to convert a standard RF Explorer RFE6GEN Signal Generator into a full specification RF Explorer Signal Generator Combo. Once installed, this expansion board extends continuous frequency coverage down to 100 kHz and up to 6 GHz with no gaps, while introducing active low pass harmonic filtering, high-performance output amplification up to +18 dBm, and fine 0.25 dB amplitude step adjustments. Upgrading with this module replaces the squarish, unfiltered output of the baseline RFE6GEN model with a clean sinusoidal output signal suitable for demanding Scalar Network Analyser (SNA) measurements, filter testing, and RF circuit prototyping.

Key Features:

• Complete Combo Upgrade: Upgrades a standard RFE6GEN unit into a full specification RF Explorer Signal Generator Combo.
• Expanded Frequency Range: Extends frequency generation down to 100 kHz up to 6000 MHz (6 GHz) with continuous coverage.
• Active Harmonic Filtering: Internal filtering produces clean sinusoidal waveforms with significantly reduced harmonic distortion.
• Increased Output Power: Onboard amplifiers boost RF output power up to +18 dBm.
• Fine Amplitude Control: Precise power attenuation adjustments in 0.25 dB steps across the calibrated range.
• Full Tracking Generator Support: Synchronises with an RF Explorer Spectrum Analyser for 2-port Scalar Network Analysis (SNA).
• Free Open Source Software: Supported by RF Explorer for Windows software, with open-source Python and .NET API libraries for custom automation.

Technical Specifications:

• Product Type: Internal RF Signal Generator Expansion Board
• Compatible Host Unit: RF Explorer RFE6GEN Signal Generator
• Frequency Range: 100 kHz to 6000 MHz (100 kHz - 6 GHz)
• Calibrated Output Range: -40 to +10 dBm
• Uncalibrated Extended Output Range: -60 to +18 dBm
• Amplitude Resolution: 0.25 dB step size over calibrated range
• Amplitude Accuracy: ±2 dB (typical across most frequency and power ranges)
• Frequency Resolution: 1 kHz
• Frequency Stability: 0.5 ppm
• Temperature Compensation: 0 to 45 °C operating range
• RF Output Impedance: 50 Ohms (via host chassis SMA female connector)
• Spurious Output: Internal fractional PLL configuration (typically -50 dBc or less)
• Harmonics: Typical values of -40 dBc for 2nd harmonic, -50 dBc for 3rd and higher harmonics
• Measurement Switch Speed: Less than 10 ms

Functional Operating Modes:

• CW Signal Generator: Continuous wave signal output at any frequency between 100 kHz and 6 GHz.
• Tracking Generator: Operates alongside an RF Explorer Spectrum Analyser on the same PC for Scalar Network Analysis (SNA).
• Sweep Generator: Automated frequency sweeping between defined start and stop frequencies with configurable step size and dwell speed.

Package Contents:

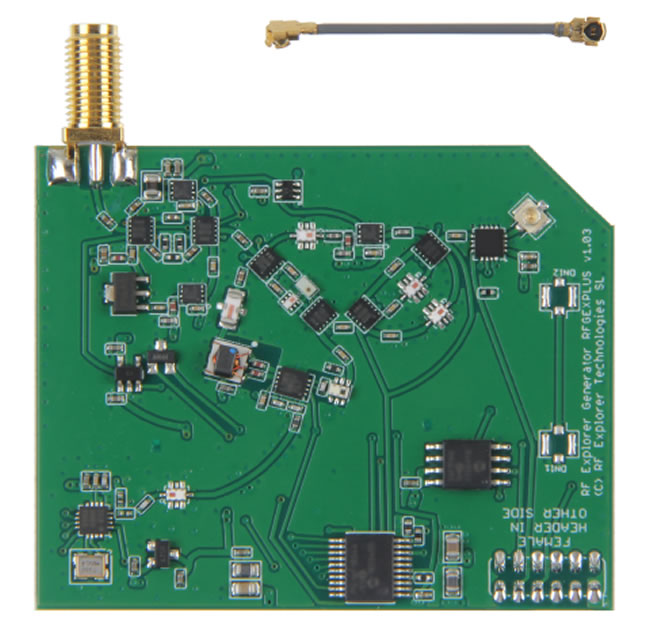

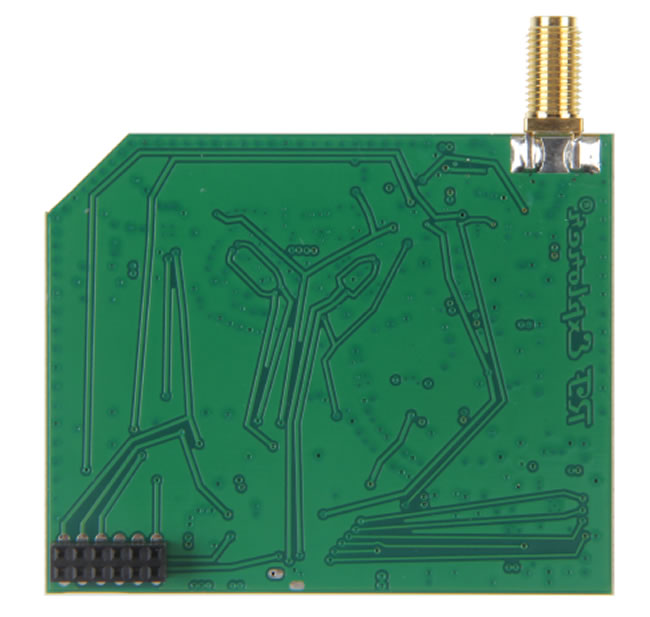

• 1x RF Explorer Signal Generator expansion card
• 1x U.FL high-performance RF connection cable

Suggested Uses & Applications:

• Upgrading existing RFE6GEN baseline signal generators to full Combo capabilities without purchasing a complete new unit.
• Precise characterisation of RF filters, amplifiers, cables, and attenuators.
• General purpose bench testing and field testing requiring low-distortion sinusoidal signals across LF, VHF, UHF, and microwave bands.

Installation & Assembly Tips:

• ESD Precautions: Discharge static electricity and use anti-static precautions before handling the expansion board or opening the RFE6GEN enclosure.
• Cable Fitting: Exercise care when snapping the miniature U.FL RF cable onto the internal board connectors to avoid damaging delicate micro-coaxial pins.
• Firmware Upgrade: Update the RFE6GEN main firmware to the latest version immediately following hardware installation to enable full expansion board functionality.
• Software & Driver Downloads: Access manuals, firmware, and software directly from the RF Explorer download area.

Important Compatibility & Host Caveats:

• Host Specificity: Designed specifically for internal installation inside the RF Explorer RFE6GEN Signal Generator. It cannot be used as a standalone board or installed inside RF Explorer Spectrum Analyser models.
• Calibrated vs Extended Range: Power settings between -40 dBm and +10 dBm are factory calibrated. Power levels above +10 dBm (up to +18 dBm) or below -40 dBm (down to -60 dBm) operate in uncalibrated extended mode.

Signal Generation Comparison:

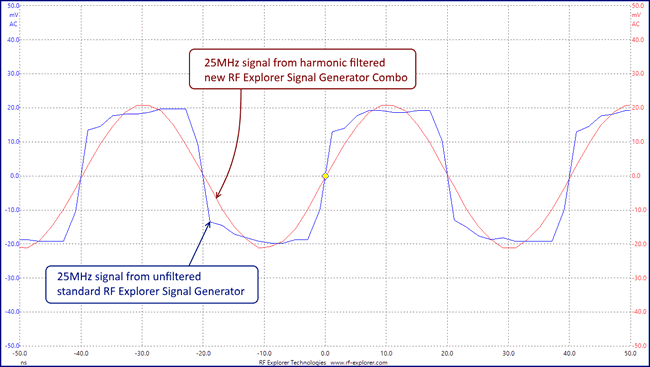

Comparison between RF Explorer Signal Generator Expansion filtered sinusoidal output (red) and standard unfiltered RFE6GEN output (blue).
