LTE 4G SMA Aerial

Thumbnail Filmstrip of LTE 4G SMA Aerial Images

    Purchase LTE 4G SMA Aerial

    SKU: RF-Explorer-LTE-Antenna LTE 4G SMA Aerial

    $28.00 each
    Quantity in Basket:  None







    RF Explorer LTE Antenna

    The omnidirectional LTE multi-band antenna is designed for worldwide LTE / 4G cell reception testing and measurements and can be used for other purposes in the supported frequency range of 698-960 / 1710-2170 and 2500-2700 MHz. LTE = Long-Term Evolution.

    It comes in a compact, robust articulated lightweight design, making it an ideal choice for the hand-held RF Explorer Spectrum Analyser or other devices.

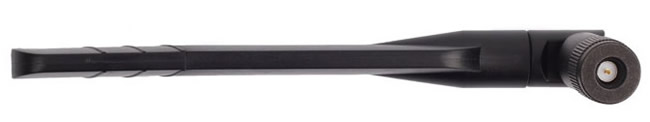

    RF Explorer LTE Antenna Side View
    RF Explorer LTE Antenna Side View



    Features:

    • Compact multi-band antenna for LTE / 4G with SMA male connector
    • Omnidirectional in the horizontal plane

    Specifications:

    • Impedance: 50 Ohm
    • Characterised response: 698-960 / 1710-2170 / 2500-2700 MHz
    • VSWR: <2.0
    • Gain: up to 5dBi
    • Max power: 50W
    • Connector: SMA male
    • RoHS compliant
