Cloverleaf Dual Band Aerial 2.4 - 5.8 GHz Omnidirectional SMA

Thumbnail Filmstrip of Cloverleaf Dual Band Aerial 2.4 - 5.8 GHz Omnidirectional SMA Images

    Purchase Cloverleaf Dual Band Aerial 2.4 - 5.8 GHz Omnidirectional SMA

    SKU: RF-Explorer-Cloverleaf-Antenna Cloverleaf Dual Band Aerial 2.4 - 5.8 GHz Omnidirectional SMA

    $39.00 each
    Quantity in Basket:  None



    Sorry, we are currently sold out of:
    Cloverleaf Dual Band Aerial 2.4 - 5.8 GHz Omnidirectional SMA.
    More stock is due soon!



    Cloverleaf Dual Band Antenna 2.4 - 5.8 GHz Omnidirectional SMA

    The Clover Leaf omnidirectional antenna is the perfect choice to use RF Explorer in 2.4GHz and 5.8GHz bands. CloverLeaf antennas have circular polarisation and therefore can detect all direct and bouncing signals, making a way superior choice to detect interference and wanted radiations.

    The main difference with other dual band antennas is the perfect coverage in all directions, as opposed to whip and rubber duck dipoles which are limited to vertically polarized signals. It comes with standard SMA connector and robust ABS housing to protect internal Cloverleaf multi-petal design from damage.

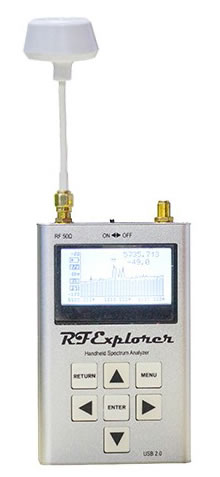

    RF Explorer Cloverleaf dual band 2.4/5.8GHz omnidirectional SMA with Separately Supplied RF Explorer - note supplied device may appear slightly different to to varying batches.
    RF Explorer Cloverleaf dual band 2.4/5.8GHz Omnidirectional SMA with Separately Supplied RF Explorer - note supplied device may appear slightly different to to varying batches.

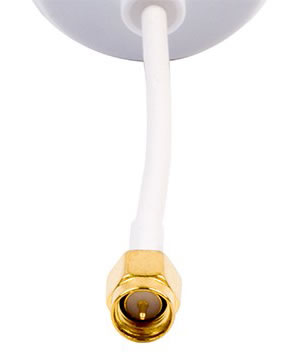

    RF Explorer Cloverleaf dual band 2.4 / 5.8GHz omnidirectional SMA Antenna Connection - note supplied device may appear slightly different to to varying batches.
    RF Explorer Cloverleaf dual band 2.4 / 5.8GHz Omnidirectional SMA Antenna Connection - note supplied device may appear slightly different to to varying batches.



    Features:

    • Dual band 2.4 GHz / 5.8 GHz - WiFi, wireless video / audio systems, ISM, Bluetooth, drones, FPV (first person view) drone, remote control systems
    • Sturdy ABS protection housing
    • Omnidirectional circular polarised antenna

    Specifications:

    • Impedance: 50 Ohm
    • Connector: SMA male via supplied adaptor
    • Type: RX Cloverleaf multi-petal antenna
    • Characterised response: 2400-2500 MHz and 5700-5800 MHz
    • VSWR: <2.0
    • Gain: up to 5dBi
    • Max power: 5W
    • Coax: RG141
    • RoHS compliant
    • Temperature: -30°C to +70°C
    • Note supplied device may appear slightly different to to varying batches.
