6 GHz SMA Male to Male Cable

Thumbnail Filmstrip of 6 GHz SMA Male to Male Cable Images

    Purchase 6 GHz SMA Male to Male Cable

    SKU: RF-Explorer-6GHz-SMA-Male-Male-Cable 6 GHz SMA Male to Male Cable

    $28.00 each
    Size Approx: 10 cm
    Quantity in Basket:  None







    SMA Male to Male 6GHz Semi-Flexible Cable - RG402 10cm

    This SMA male to male is a quality cable able to handle up to 6 GHz with very low attenuation. It is the perfect cable to connect the RF Explorer Signal Generator or other units to a device, or to work with a tracking generator.

    The semi-rigid nature of the cable allows for stable measurement independently of the position and helps on adding mechanical robustness when using RF Explorer Signal Generator with the RF Explorer Spectrum Analyser as Tracking Generator.

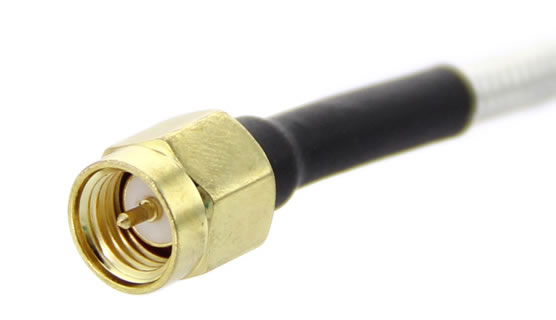

    SMA Male to Male 6 GHz Semi-Flexible Cable RG402 10cm - End View
    SMA Male to Male 6 GHz Semi-Flexible Cable RG402 10cm - End View

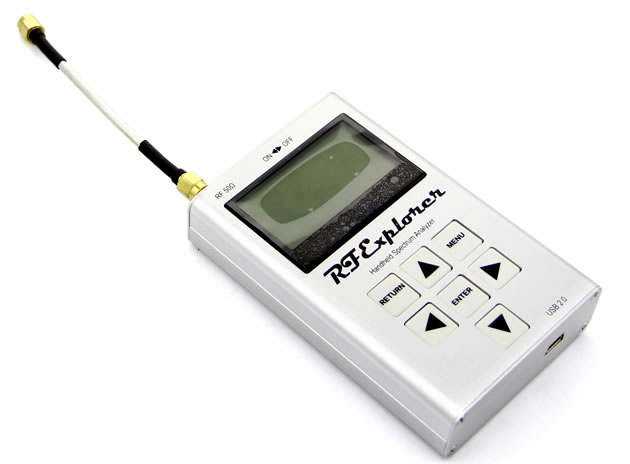

    SMA 6 GHz Semi Flexible Cable RG402 10cm for RF Explorers (not included)
    SMA 6 GHz Semi Flexible Cable RG402 10cm for RF Explorers (not included)

    Features:

    • Very low VSWR and attenuation at high frequency
    • Robust semi-rigid mechanical strength
    • Wide broadband frequency application

    Specifications:

    • Frequency range: DC - 6.0 GHz
    • Length: 10cm (approx.)
    • Impedance (Nominal): 50 Ohms
    • Attenuation: 0.3dB max at 6GHz
    • Connector type: SMA male - male
