RF Explorer 6G Combo Spectrum Analyser

Thumbnail Filmstrip of RF Explorer 6G Combo Spectrum Analyser Images

    Purchase RF Explorer 6G Combo Spectrum Analyser

    SKU: RF-Explorer-6G-Combo RF Explorer 6G Combo Spectrum Analyser

    $495.00 each
    Brand: RF Explorer
    Shipping Weight: 0.80 kg
    Quantity in Basket:  None







    RF Explorer 6G Combo Spectrum Analyser with 15-2700 MHz and 4850-6100 MHz Frequency Range - Australian Local Stock

    RF Explorer is a hand-held digital spectrum analyser, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double balanced mixer which offers high performance, compact size, low consumption and low cost. It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

    This model includes a 6G baseline unit plus an RFEMWSUB3G Expansion Module conveniently assembled and tested. It comes with two SMA connectors and three antennas: a nice Nagoya NA-773 wideband telescopic antenna for all Sub-GHz frequencies, a rubber duck 5.8 GHz and a whip helical for the 2.4 GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported, not supplied.

    The combination of these two models offer coverage for most used communication frequency range used in modern communication technologies including WiFi, Bluetooth, Wireless Audio and Video, LTE, GSM, GPRS, Satellite, CATV, DTV, etc.

    RF Explorer 6G Combo Features (See details specs in the table further below):

    • Pocket size and light weight
    • Solid aluminium metal case
    • Spectrum analyser mode with peak max, hold and normal, as well as overwrite and averaging modes.
    • Lifetime free firmware upgrades available, open to community requested features.
    • High capacity LiPo for 16hrs + of continuous run rechargeable by USB.
    • Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz, as well as 4.85-6.1GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.

    Note this unit does not include RF Generator functionality, only Spectrum Analyser functionality is available. For signal generator and tracking please consider RF Explorer Signal Generator model RFE6GEN.

    Specification:

    • Frequency span:
      • Left SMA port (6G): 2-600 MHz
      • Right SMA port (WSUB3G): 112 kHz - 600 MHz
    • Graphics LCD 128x64 pixels, great visibility outdoors
    • Downloadable PC Windows client supports Windows XP/Vista/Win7/Win 8 both 32 and 64 bits
    • Backlight for great indoor visibility
    • 2 standard SMA 50 ohms Spectrum Analyzer connectors:
      • Left SMA port (6G): 4850-6100 MHz
      • Right SMA port (WSUB3G): 15-2700 MHz
    • Amplitude resolution: 0.5dBm
    • Dynamic range: -105dBm to -15dBm
    • Absolute Max input power:
      • Left SMA port (6G): +25dBm
      • Right SMA port (WSUB3G): +30dBm
    • Average noise level (typical): -105dBm
    • Frequency stability and accuracy (typical):
      • Left SMA port (6G): ±0.5ppm
      • Right SMA port (WSUB3G): ±10ppm
    • Amplitude stability and accuracy (typical):
      • Left SMA port (6G): ±3dBm
      • Right SMA port (WSUB3G): ±6dBm
    • F requency resolution: 1 kHz
    • Resolution bandwidth (RBW): automatic 58 kHz to 812 kHz
    • Left SMA port (6G): automatic 58 kHz to 812 kHz
    • Size: 113 x 70 x 25 mm approx.
    • Weight: 285g approx.

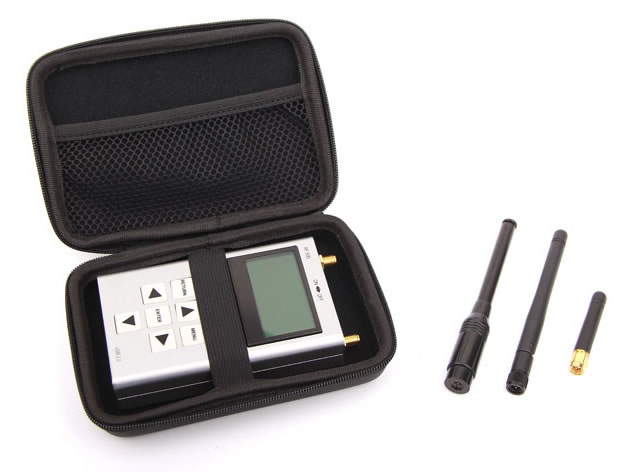

    RF Explorer 6G Combo with case, box and aerials.


    RF Explorer 6G Combo with case and aerials.

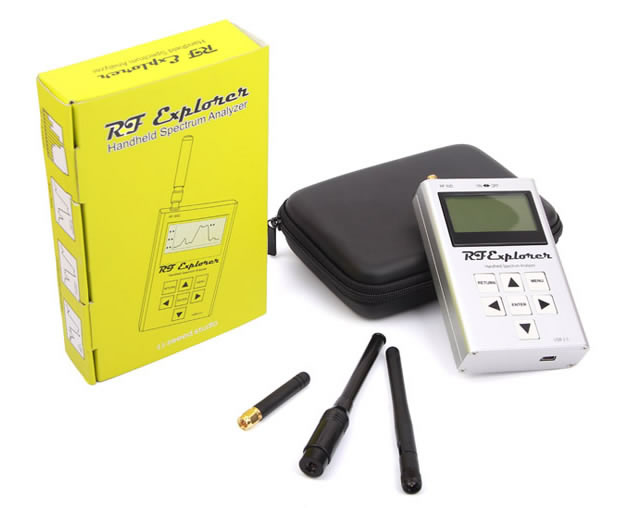

    RF Explorer 6G Combo with case, box and aerials.

    Detailed Specification Comparison Chart:

    Model 6G Combo 6G 3G Combo ISM Combo WSUB1G 2.4G
    Spectrum Analyzer Frequency (MHz) 4850-6100 (left)
    15-2700 (right)
    4850-6100 240-960 (left)
    15-2700 (right)
    240-960 (left)
    2350-2550 (right)
    240-960 2350-2550
    Spectrum Analyzer Span (MHz)

    2-600 (left)
    0.112-600 (right)

    2-300
    2-600 (*)
    0.112-600 0.112-600 (left)
    2-85 (right)
    0.112-300
    0.112-600 (*)
    2-85
    Baseline Installed Module 6G 6G WSUB1G WSUB1G WSUB1G 2.4G
    Expansion Module Fitted RFEMWSUB3G - RFEMWSUB3G RFEM2.4G - -
    Frequency resolution (kHz) 1.0 1.0 1.0 1.0 1.0 1.0
    DANL typical (dBm) -105 -105 -115 (left)
    -105 (right)
    -115 (left)
    -105 (right)
    -115 -105
    Amplitude resolution (dBm)

    0.5

    0.5 0.5 0.5 0.5 0.5
    Automatic RBW (kHz) 2.6-812 58-812 2.6-600 2.6-600 2.6-600 58-812
    Graphics LCD (pixels) 128x64 128x64 128x64 128x64 128x64 128x64
    LCD Backlight 5 levels 5 levels 5 levels 5 levels 5 levels 5 levels
    LCD Contrast 10 levels 10 levels 10 levels 10 levels 10 levels 10 levels
    RF Impedance (Ohm) 50 50 50 50 50 50
    RF Absolute Max input power (dBm) (**) +25 (left)
    +30 (right)
    +25 +5 (left)
    +30 (right)
    +5 +5 +5
    RF Max measurable input power (dBm) ** -15 (left)
    -10 (right)
    -15 -5 (left)
    -10 (right)
    -5 -5 -5
    RF Generator Frequency (MHz) Not Available Not available Not available 2350-2550 (right) Not available 2350-2550
    RF Generator Power (dBm) Not available Not available Not available -30 to +1 (right) Not available -30 to +1
    Wi-Fi Analyser Not available Not yet 13 channels
    2.4GHz
    13 channels
    2.4GHz
    Not available 13 channels
    DSP Filter/Fast Fast Filter/Fast Fast Fast Fast
    Frequency accuracy (typical) 0.5ppm (left)
    10ppm (right)
    0.5ppm 10ppm 10ppm 10ppm 10ppm
    Frequency stability (typical) 0.5ppm (left)
    10ppm (right)
    0.5ppm 10ppm 10ppm 10ppm 10ppm
    Amplitude stability (typical) ±1dBm ±1dBm ±1dBm ±1dBm ±1dBm ±1dBm
    Amplitude accuracy (typical) ±3dBm (left)
    ±6dBm (right)
    ±3dBm ±3dBm (left)
    ±6dBm (right)
    ±3dBm ±3dBm ±3dBm
    RF DC decoupled Yes (both) Yes Yes (both) Yes (left)
    No (right)
    Yes No
    Max RF DC Voltage (V) 16 16 16 16V (left)
    0.3V (right)
    16 0.3
    Windows PC Client tool 32/64 bits 32/64 bits 32/64 bits 32/64 bits 32/64 bits 32/64 bits
    RS232/USB API Yes Yes Yes Yes Yes Yes
    Internal CPU (MIPS) 16 16 16 16 16 16
    Extra RAM 64KB With expansion 64KB 64KB With expansion With expansion
    Extra ROM 2MB With expansion 2MB 2MB With expansion With expansion
    Expansion Options Not available (i) RFEM2.4G
    RFEMWSUB1G
    RFEMWSUB3G
    Not available (i) Not available (i) RFEM2.4G
    RFEMWSUB3G
    RFEMWSUB1G
    RFEMWSUB3G
    Size (mm) 113x70x25 113x70x25 113x70x25 113x70x25 113x70x25 113x70x25
    Weight (grams) 285 185 220 220 185 185
    Antenna included NA-773
    Whip 2.4G
    R Duck 5.8G
    R Duck 5.8 GHz NA-773
    Whip 2.4G
    NA-773
    Whip 2.4G
    NA-773 Whip 2.4GHz
    EVA Case included Yes Optional Yes Optional Optional Optional

    Notes:

    • Some of these features require latest firmware upgrade, please upgrade your unit from www.rf-explorer.com/download page.
    • Models with two connected modules includes two RF SMA connectors. In such case, some differences may apply when comparing left or right SMA connector. This table above include clear details on which is applicable to each connector.
    • (*) This feature or range extension is available with an Expansion Module installed, such as RFEMWSUBxG or RFEM2.4G.
    • (**) Note some frequency ranges may have a more limited, lower measurable range. Please contact us for more details on a particular frequency range if you need to measure input power close to -10dBm. In all cases, using a 20 or 30dB attenuator is suggested in order to lower the input power to a -30 or -40dBm range, as it will exhibit better behaviour by limiting spurious and signal overload. If you use an attenuator, you also improve the VSWR of the measurement and can be adjusted in OffsetDBparameter of RF Explorer ATTENUATOR MENU in order to read the exact value on screen, saving you from doing any math.
    • (i) The Expansion Module is already installed in this RF Explorer Model and therefore there is no room for additional expansion.

    Downloads:

    Click here for available firmware updates, documentation and software (use at your own risk!)

    Expansion Modules:

    In addition to that, RF Explorer can fit an optional Expansion Module for further band coverage and enhanced capabilities. You can combine various RF Explorer models with any Expansion Module you wish. The firmware will correctly recognize your configuration and will work in all cases. Check compatibility on the above table.

    Compliance:

    • All RF Explorer models are compliant with FCC as well as CE regulations.
    • All RF Explorer Wideband models have been certified under EN/IEC61236 and EN/IEC61000.
    • All RF Explorer models are RoHS compliant.

    Getting Started:

    The first thing you want to do is to power up your unit and play with it! This is perfectly ok; just make sure you are not near any strong RF field before plugging in your antenna in the SMA connector. At very same instant you plug in the antenna, the device will start receiving RF energy even if it is powered off. This is not much of an issue if you are using a 3G Combo or a RFEMWSUB3G card, but other RF Explorer models are not protected against very strong fields.

    Please read this article for more details on how to protect your device from strong RF fields. Failing to do so may damage your RF Explorer.

    This is a battery operated device, please charge the battery before use; it comes with half charge as the standard way to extend the battery life when it is stored for an undetermined period of time. But to use it you should fully charge it. Never charge your device unattended.

    Note the device will automatically switch ON as soon as you plug it in the USB port, but that doesn't mean it is being charged: to charge the battery you need to switch the battery power to ON. There are more details in this FAQ article, including battery handling and care information.

    To start learning the many things you can do with RF Explorer please download the user manual and release notes. We also suggest upgrading your unit to the very latest firmware available. Everything is available in the download area.

    You can connect your PC or Mac to RF Explorer for additional functionality, please check the download area as well as the user manual online.

    If you ordered an Expansion Module together with your main unit, you may want to follow these simple instructions to install and use it.

    Last but not least, there are a few online pointers you may want to be aware of:

    If you run into any problem or question, let us know. We want this to be a useful tool, your comments, questions and suggestions are of high value to us.
