Thumbnail Filmstrip of Monacor PA Amplifier PA-5240 Images

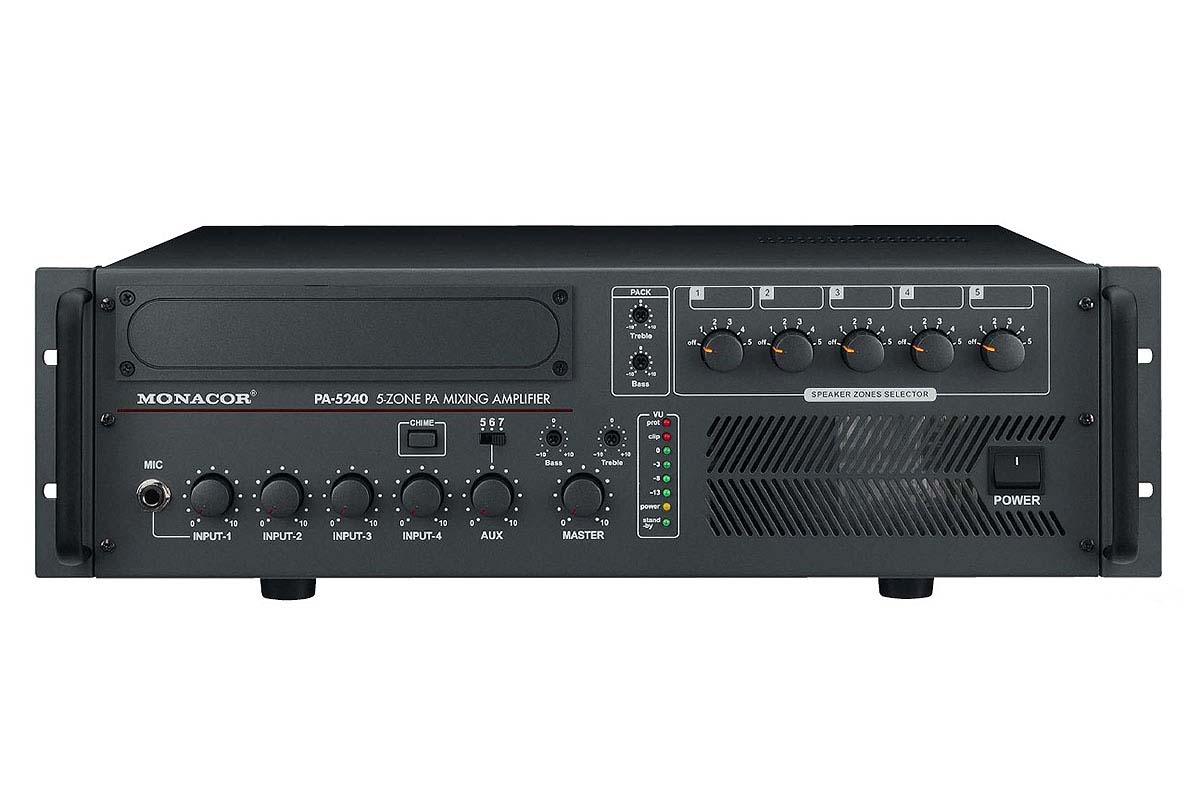

Monacor PA-5240 240W 5-Zone Mono PA Mixing Amplifier
- 1 x 240W RMS
- 5 zones, can be controlled individually
- Chime, howling sound, automatic mute; chime and siren can also be activated via external momentary push-button
- Bass, treble, and master controls, level display via LEDs, controlled fan
- Insertions for various functions are available at option
- Phantom power for electret microphones
- Connection for microphone PA-5000PTT
- Alarm announcement with insertion PA-1120DM (available at option)
- Mains operation or 24V emergency power operation
Specifications:
| General Information | |
| Output power | 240W RMS |
| 340W MAX | |
| Inputs | |
| Mic 1 | 2.5mV / 2k Ohm |
| Mic / line 2-4 | 2.5mV / 2k Ohm, 0.3V / 200k Ohm |
| Line 5-7 | 0.3V / 5k Ohm |
| Preamplifier | 0.775V / 10k Ohm |
| Outputs | |
| Speakers | 100V / 70V |
| Preamplifier | 0.775V / 100 Ohm |
| Frequency range | 55-16,000Hz |
| Tone control | |
| Bass | ±10dB / 100Hz |
| Treble | ±10dB / 10kHz |
| S / N ratio | |
| Mic | > 70dB |
| Line | > 80dB |
| THD | < 1% |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | 220V-240V˜ / 50Hz / 750VA, |
| 24V DC current / 20A | |
| Dimensions | 482 x 133 x 352mm, 3RS |
| Weight | 16.5kg |
| Inputs | |
| Mic / line | 2 x 6.3mm / XLR (Combo),
1 x 6.3mm jack |
| Line | screw terminals,
3 x RCA L / R |
| Zone paging microphone | screw terminal |
| Push-to-talk microphone | screw terminal |
| Telephone | - |
| Preamplifier | 1 x 6.3mm jack |
| Outputs | |
| Chime mom. pushbutton | screw terminals |
| Preamplifier | 1 x 6.3mm jack |
| Speakers | screw terminals |
| Power supply | |
| 240V~ | 3-pin AC jack |
| 24V DC current | screw terminals |
