Dynavin Navigation Audio System Fiat Ducato Citroen Jumper Peugeot Boxer

Thumbnail Filmstrip of Dynavin Navigation Audio System Fiat Ducato Citroen Jumper Peugeot Boxer Images

    Purchase Dynavin Navigation Audio System Fiat Ducato Citroen Jumper Peugeot Boxer

    SKU: Dynavin-Fiat-Ducato-DC Dynavin Navigation Audio System Fiat Ducato Citroen Jumper Peugeot Boxer

    $695.00 each
    Brand: Dynavin
    Quantity in Basket:  None



    Dynavin N7 DC Fiat Ducato, Citroen Jumper and Peugeot Boxer Touch Screen Multimedia Navigation System

    Suitable for the following vehicles:
    • Fiat Ducato III 250 / 251 2006-2011
    • Fiat Ducato III EURO 5 250 / 251 2011-2014
    • CITROEN Jumper II 250 / 250D / 250L 2006-2011
    • CITROEN Jumper III 250 / 250D / 250L 2012-2014
    • PEUGEOT Boxer II 250/251 2006-2011
    • PEUGEOT Boxer III 250/251 2012-2014
    • Please check with us if any doubt as vehicle year and model can overlap.

    These units are ideal as a direct replacement of your existing radio or radio navigation system in your car. Specially designed to look like the original system but with many enhanced and new features plus integration with steering wheel controls and some other vehicle systems. Dynavin car navigation systems are a perfect upgrade to bring your car up-to-date with the latest technology at a very reasonable price.

    Example of the Dynavin N7 DC for Fiat Ducato, Citroen and Peugeot.
    Example of the Dynavin N7 DC for Fiat Ducato, Citroen and Peugeot.

    Quick Feature Overview:

    • Great for camper vans and mobile homes, with DVD playback, remote control and external video outputs, you could watch on a separate optional screen.
    • High-quality 6.2"/16:9 LCD display with capacitive touch-screen (800 x 480 resolution)
    • iGo Navigation software with 3D landview and premium POI
    • FM / AM tuner with 15 preset stations each and auto station listing
    • Single disc player for CD, DVD, MP3
    • Parrot Bluetooth ideal for Apple, Android and Windows phones for phone calls, music streaming and voice control where available on your phone
    • USB connectivity and SD card reader
    • Remote control included
    • Reverse camera ready (camera not supplied, adaptor may be needed for factory fitted cameras)
    • Integrated with Sound DSP processor with EQ, time correction and 4V pre-out AV input / output


    iGo Primo Navigation:-

    Example navigation screens.
    Example navigation screens.
    Example navigation screens.

    Dynavin N7 features a built-in navigation system with simple destination input, turn-by-turn voice prompts and selectable route guidance - everything you need to reach your destination quickly and efficiently. Pre-loaded with rich points of interest, its database includes national parks, restaurants, petrol stations and much more. Furthermore, Dynavin offer 30 days FREE updating on the maps after the first use.

    • 3D or 2D view
    • SD card based navigation system
    • Premium PIO (point of interest)
    • Calculation of route alternatives
    • Parking stations, petrol stations, detour hint function and more


    Parrot Bluetooth:-

    Phone screen example.
    Phone screen example.

    Bluetooth Plus gives you hands free phone operation plus many other convenient functions like easy alphabetical phonebook search, hold and switch incoming calls, battery and mobile reception level indicators, plus advanced audio streaming while displaying song, artist and tag information where provided. Voice activation of phone possible. Features available where supported by the phone.


    DSP Sound and 4V Pre-out:-

    Equaliser screen example.
    Equaliser screen example.

    Dynavin N7 head units use high-resolution Burr Brown 24-Bit digital to analogue conversion allowing for clean, accurate, stunning sound reproduction. High quality 4 Volt preamp outputs ensures ultra clean signal transmission from the Dynavin when fitting after-market amplifiers. When properly gain matched these high voltage RCAs virtually eliminate noise and distortion, even at high volume levels.


    Made for iPod / iPhone:-

    iPod connection and playback example.
    iPod connection and playback example.

    The Dynavin N7 can connect directly to your iPod, iPhone, or iPad for music via USB. Artist, album, song and album art are clearly displayed on the Dynavin's touch screen. Simple, intuitive search tools help you find your content faster. A wired USB connection provides direct digital signal transfer from your iOS device for clean, clear sound all while keeping your device charged.


    USB Playback:-

    USB playback example.
    USB playback example.

    Plug in a USB stick (64G max) with media and enjoy the convenience of hundreds of hours of playback. An extension cable is included so you can have it in the glovebox or centre console for ease of access.


    Capacitive Anti-glare Touch-screen:-

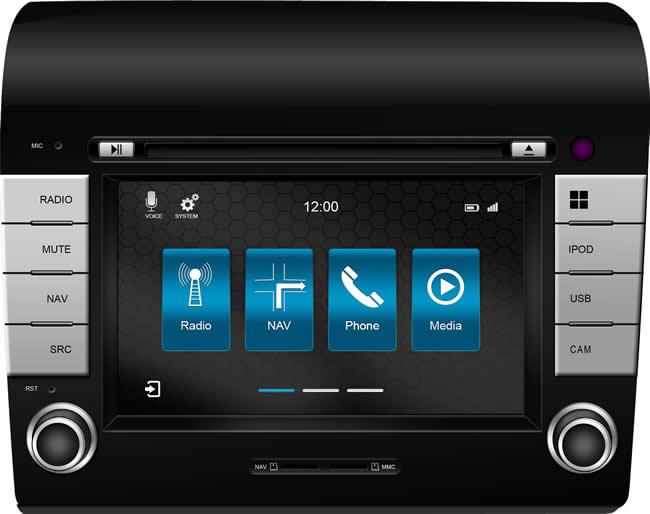

    Menu screen example.
    Menu screen example.

    View your media and navigation on a clear, high resolution, display. A capacitive anti-glare touch panel gives you precise fingertip control and superior visibility in all lighting conditions.


    Features and Specifications:-

    Radio Tuner

    • Memory Presets: FM: 15 / AM: 15
    • Autostore Memory - stations are automatically scanned in the background and dynamically stored
    • Manual tuning function
    • RDS Functions: AF, TA, TP, PTY, NEWS, RADIO TEXT (where offered by the station)
    • FM Tuning Range: 87.5 - 108.0 MHz
    • AM Tuning Range: 531-1,602 kHz
    • Rear aerial connections are matched to most vehicles, adaptors may be supplied in some cases
    • Phantom power activated via radio settings menu
    • Optional DAB (digital radio) tuner; controlled directly from the on-screen menu


    • Parrot Bluetooth Module
    • Phone Book Transfer for 1000 Contacts
    • Phone Book Search: Alphabetic Search
    • Favourite Contacts
    • Redial Function
    • Call History Display
    • Adjusting the volume when receiving a call
    • A2DP Music Streaming
    • Voice Activation of Phone Assistant (where available on your phone)
    • Two Phones can be Paired
    • HFP (Hands Free Profile)
    • HSP (Head Set Profile)
    • Wired Microphone Included

    Navigation and Map Database

    • Australian maps supplied with units via micro SD memory card
    • Online Update Details: visit www.naviextras.com (via Windows PC)
    • GPS aerial included where needed and / or adaptor included where needed

    Connection for iPod / iPhone

    • Made for iPod / iPhone / iPad
    • Compatibility with iPod / iPhone / iPad via USB and 30 Pin or Lightning Connector (Apple cable not supplied)
    • M.I.X. (Shuffle) Capability: Song, Albums, All
    • Music Control: Song Up / Down, Fast Forward / Backward, Repeat
    • Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
    • Alphabetic Search Function
    • Information Display: Album Art, Song (Title, Album)

    Disc Player

    • DVD / CD Player with Anti-Shock
    • Disc Playback Type: DVD Video, DVD Audio (2ch mix down), CD, CD-R, CD-RW, DVD+-R/+-RW, DVD-VR
    • Compressed Media Playback: MPEG / AVI / RM / FLV / ASF / WMV / MP4 / MKV / OGM / DivX / MP3 / WMA / AAC Playback
    • 24bit-DAC
    • Sensor: Music Sensor Scan, Repeat
    • Playback Control: Play / Pause, Fast Forward / Rewind
    • Last Position Memory
    • DVD Direct Menu Control
    • M.I.X. Mode: One (Folder) / All (Random Play) / Random (CD Only)
    • Frequency Response: 20Hz-20kHz ±2 dB
    • Video Horizontal Resolution: 500 lines or greater

    USB / SD Media

    • USB Connection (1x USB Extension Cable Included)
    • Cover Art Display and Music Details via ID3 Tags
    • Music Playback: MP3 / AAC / WMA Playback
    • SD Card: Video and Audio Playback (64GB Max.)
    • USB Class: Mass Storage, Play from device (64GB Max.)
    • Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
    • Alphabet Search Function
    • Information Display: Album Art, Song (Title, Album)
    • USB Requirements: USB 1.1 / 2.0
    • Max. USB Power Consumption: 1000 mA
    • File System: FAT 32 / EXFAT
    • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
    • WMA Decoding: Windows Media Audio
    • AAC Decoding: ACC-LC format "m4a" file
    • Number of Channels: 2 Channel (Stereo)
    • Frequency Response: 5-20 kHz ±1 dB (Frequency Response may differ depending on the encoder software/bit rate)

    Reverse Camera Option

    • RCA Video Camera Input Cable Supplied
    • Works with most factory systems using composite video connection (adaptor may be needed)
    • Camera Not Supplied
    • Reversing Guidelines adjustable
    • Parking Distance Control (parking sensors) visible on some vehicles

    Sound Tuning and Audio Connections

    • Power Output: 4x 50 W Max. High Power Amplifier Output
    • High Grade Audiophile Design utilising Burr Brown 24-bit circuitry
    • Pre-Out: 2 Pre-Outs (4V) and 1 AV Output
    • Pre-In: 2 Pre-In (Front / Rear) Ready
    • AUX-In: 1 AV Input
    • Amplifier Remote Turn-On Output
    • Subwoofer Level Adjustment
    • Bass Level Control, Centre Frequency: 100Hz
    • Treble Level Control, Centre Frequency: 10kHz
    • Graphic Equaliser: 9-Band (80, 250, 500, 1k, 4k, 8k, 16kHz), Adjustable Output Level -6 to +6dB
    • Time Correction Adjustment
    • DSP and Preset Sound Settings
    • Integration Possibility with Factory OEM Sound Systems (Model dependant - Optional interface may be required)
    • Dual Zone Control

    CANBUS Integration

    • For vehicles with steering wheel controls, you will need the separate steering wheel CANBUS interface options listed above.

    Display and Front Panel

    • 6.2 Inch 6:9 LCD Display
    • High Resolution: 800 x 480px
    • Capacitive Touch Screen
    • Anti-glare / Anti-reflection
    • Custom DynOS operating system for ease of use and sophisticated control when needed
    • Assignable Hotkey: set to a function of your choice for fast access


    • Auto or Manual Display Dimmer (Adjustable)
    • Power Antenna Output
    • Fast Start-up when Connected to CANBUS
    • 15 Minute Standby Period After Switch-off for Lightning Fast Start-up (approx. - for example after refuelling)
    • Operating Temperature: -10°C - +70°C
    • Clock sync for some vehicles
    • 24 month warranty
    • Note: If fitted, any factory CD Changer, phone system or navigation drive will no longer operate. Of course the new unit will have more than enough features to compensate!
