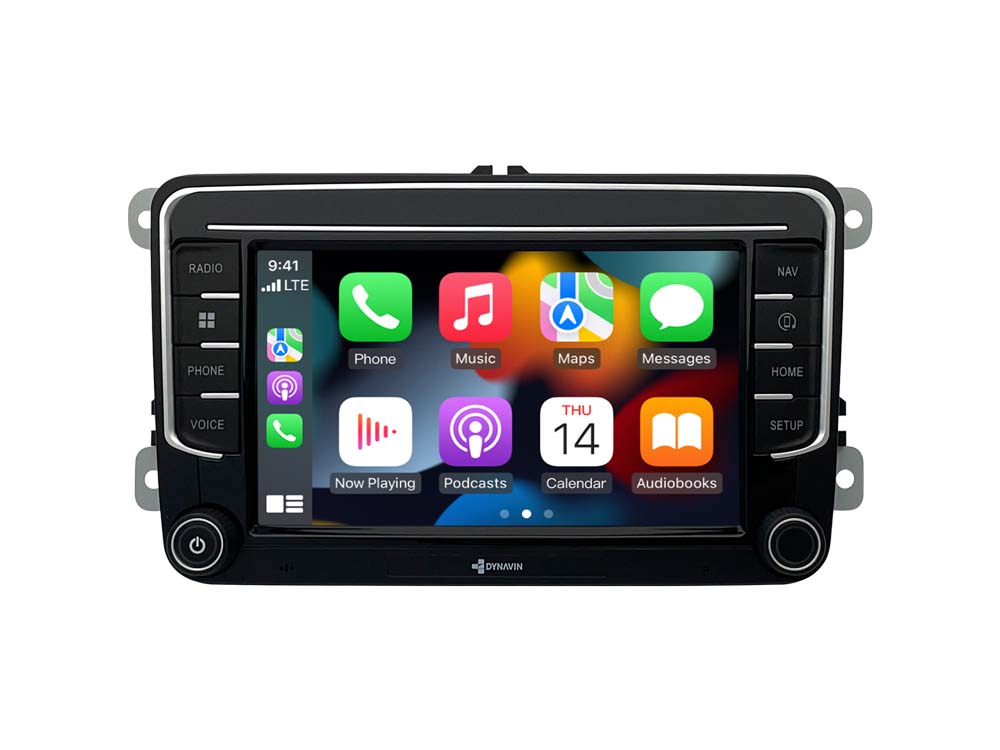

SKU: Dynavin-D8-VW-Volkswagen-V7 Dynavin Navigation Audio System VW Skoda Seat

Dynavin D8 VW Skoda Seat

Car radio system with a touchscreen 7 inch LCD, both wired and wireless Apple CarPlay, wired and wireless Android Auto; Bluetooth, and built in DAB. Designed to fit right in, no extra trims or CANBUS interfaces are needed!

• 2008-2012 Skoda
• 2004-2009 SEAT
• 2003-2008 VOLKSWAGEN Golf V
• 2008-2012 VOLKSWAGEN Golf VI
• 2005-2014 VOLKSWAGEN Golf Plus
• 2006-2011 VOLKSWAGEN Eos - since 2011
• VOLKSWAGEN Eos Facelift - since 2009
• VOLKSWAGEN Polo V - 2005-2010
• VOLKSWAGEN Passat B6 - 2010-2014
• VOLKSWAGEN Passat B7 - 2008-2012
• VOLKSWAGEN Passat CC - since 2012
• VOLKSWAGEN Passat CC Facelift - 2005–2010
• VOLKSWAGEN Jetta V - since 2010
• VOLKSWAGEN Jetta VI - since 2010
• VOLKSWAGEN Caddy III 2K Facelift - 2007-2017
• VOLKSWAGEN Tiguan - 2011-2017 VOLKSWAGEN Tiguan Facelift - since 2008
• VOLKSWAGEN Scirocco III - since 2011
• VOLKSWAGEN Beetle - 2003-2015
• VOLKSWAGEN Touran - since 2010
• VOLKSWAGEN Sharan II - since 2010
• VOLKSWAGEN Amarok - since 2009
• VOLKSWAGEN T5 GP - since 2009
• VOLKSWAGEN T5 Facelift
• VOLKSWAGEN T6

These units are ideal as a direct replacement of your existing radio system in your car. Designed to fit like the original unit and integrate as far as possible with the vehicle, but with many enhanced and new features plus integration with steering wheel controls. Dynavin car infotainment systems are a perfect upgrade to bring your car up-to-date with the latest technology at a reasonable price.

Steering Wheel Control	Multi Function Display on the Instrument Cluster	Rear View Camera Guidance
Works with wireless Apple CarPlay	Works with Android Auto	Built-in DAB
Fast Boot	Google Play Store	Customisable Start Screen

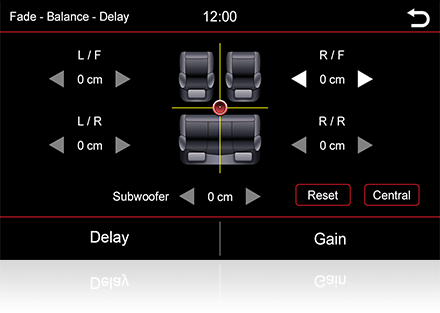

Fader and Balance	Equaliser Presets

• Apple Car Play / Android Auto
• AM / FM / DAB radio tuner
• Bluetooth phone and music streaming
• Power Output: 4 x 60W RMS High Power Amplifier
• 5 Pre-outs (3V, Front / Rear / Subwoofer)
• CANBUS Integration
• Camera connection and built-in controls compatible with many factory cameras (adaptor may be needed) or aftermarket cameras, guideline adjustment. Reverse signal either by trigger wire or CANBUS
• Fast boot-up for regular driving, deep sleep to save power after a couple of days
• Firmware updatable

Screen

• Display: 7-inch
• Resolution 1028 x 600 pixels
• Capacitive touch screen
• Auto dimmer setting

DAB+

• DAB/DAB+ built-in
• Station memory: 15 programmable memory locations
• On-glass internal aerial included

Bluetooth

• Phonebook synchronization with 1000 entries
• Hands-free calls with HFP
• Music streaming with A2DP
• Display of the GSM signal strength and battery charge level

USB

• USB specification: USB 2.0, fast charging support
• Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
• Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV) - where allowable by local laws
• Image browsing (supported formats: JPG/BMP/PNG/JPEG)
• Playback mode: random play / single song loop / all loop / folder loop
• Picture can be set as starting screen
• Supports up to 256 GB USB storage device

Sound Tuning

• Output power: 4 x 60W RMS (4x 100W Max)

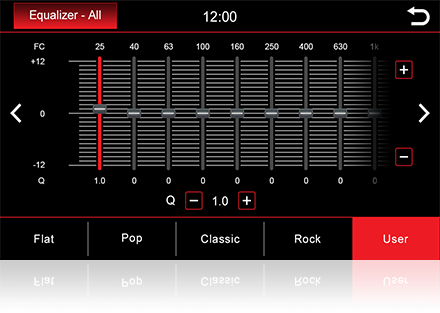

• Equaliser presets
• 16-band parametric equaliser
• Fader and balance
• Digital time correction

Radio

• FM frequency range: 87.5 – 108.0 MHz
• AM frequency range: 522 – 1629 kHz
• Radio aerial phantom power

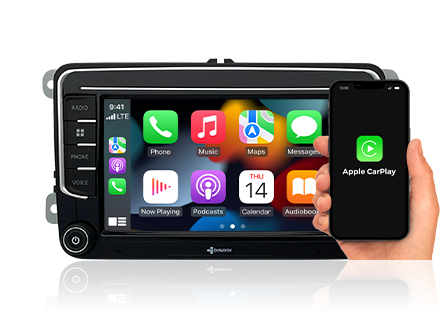

Wireless or Wired Apple Car Play

With Apple CarPlay, iPhone users have an incredibly intuitive solution on board to make calls, use maps, listen to music and use messages with just a word or the touch of a button. You can enjoy Spotify, Internet radio or podcasts while still fully concentrating on the traffic, depending on what apps you have installed.

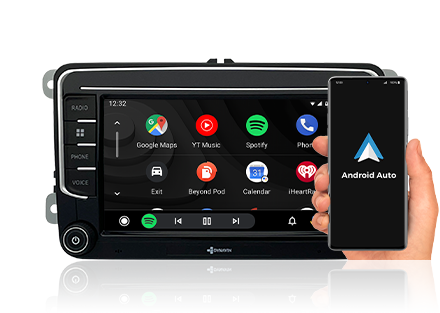

Wireless or Wired Android Auto

Android Auto connects your Android phone to your car’s touchscreen display allowing you to use your Android phone while driving without having to pick it up. With Android Auto, Android users have an incredibly intuitive solution to make calls, use maps, listen to music and use messages with just a word or the touch of a button.

Built in DAB

DAB/DAB+ offers you an accurate, transparent sound. For uninterrupted reception, the tuner offers DAB and to DAB + , SLS (text information accompanying the program), Radio VIS (station cover on your radio display) and other helpful information where available.

Fast Boot

The Dynavin 8 fast boot feature lets the radio system boot in about 3 seconds. The fast boot is disabled to save the battery energy after the car has been switched off for more than 48 hours.

Google Play Store

The Google Play Store feature lets users install Android apps after connecting to the Internet via the Wifi connection, such as with a hotspot to your phone. Google account required, fees may apply from Google.

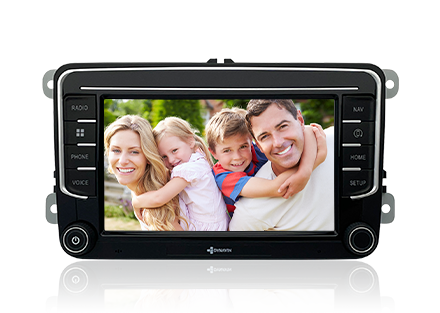

Customisable Start Screen

With the DynOS operating system, you have the ability to change the start-up screen image and store radio stations images.

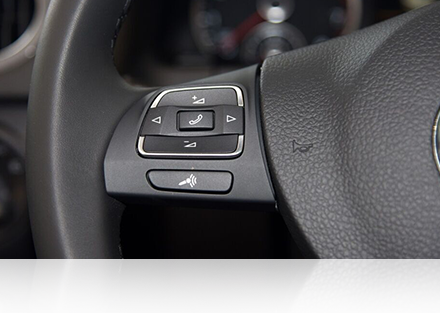

Steering Wheel Control

The Dynavin system communicates seamlessly with the steering wheel functions of your vehicle. This allows you to control volume, telephone, track search (forwards / backwards) and other functions as usual. When a smartphone is connected to the system, you can even activate voice control such as "Siri" or "Google Assistant" via the steering wheel. This feature is vehicle dependant.

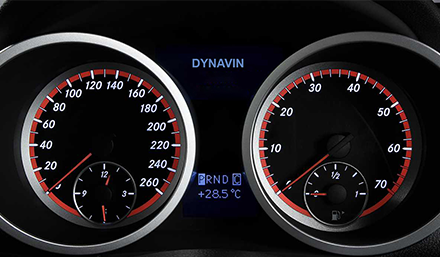

Multifunction Display (MFA)

The multi-function display (MFA) in the instrument cluster is connected to the Dynavin system and can display radio station names, ID3 tag from Media player, and caller information. This feature is vehicle dependant.

Reverse Camera

Whether your vehicle is equipped with the factory reverse camera, or an aftermarket camera, it can be supported by the Dynavin 8 Platform. You can see the dynamic guide lines in the reverse camera mode. Adaptor may be required for factory connections. Unit has a standard RCA connection.

Supplied Parts

• Main unit with LCD (and extension cable if necessary)
• Wiring harness adaptor
• DAB antenna
• GPS antenna (in many cases you can use the original GPS aerial)
• USB extension cables
• Microphone
• Wifi / Bluetooth aerial
• Reverse camera RCA cable
• Quick start guide (full manual via online link)
