Dynavin Carplay Android Auto System Porsche Cayenne 2003-2010

Thumbnail Filmstrip of Dynavin Carplay Android Auto System Porsche Cayenne 2003-2010 Images

    Purchase Dynavin Carplay Android Auto System Porsche Cayenne 2003-2010

    SKU: Dynavin-D8-PC-Pro Dynavin Carplay Android Auto System Porsche Cayenne 2003-2010

    $1,245.00 each
    Shipping Weight: 8.50 kg
    Quantity in Basket:  None







    Dynavin D8 PC Pro

    Car radio system with a touchscreen 9 inch LCD, both wired and wireless Apple CarPlay, wireled and wireless Android Auto; Bluetooth, and built in DAB. Designed to fit right in, no extra trims or CANBUS interfaces are needed!



    Suitable for the following vehicles (Please check with us if any doubt as vehicle year and model can overlap):
    Porsche Cayenne 2003-2010 - Cayenne (9PA/92)

    These units are ideal as a direct replacement of your existing radio system in your car. Designed to fit like the original unit and integrate as far as possible with the vehicle, but with many enhanced and new features plus integration with steering wheel controls. Dynavin car infotainment systems are a perfect upgrade to bring your car up-to-date with the latest technology at a reasonable price.


    Features
  • Premium 9 inch / 16:9 LCD capacitive touch-screen display (1280 x 720 resolution).
  • Supports wireless Apple CarPlay, wired Apple Car Play and Android Auto.
  • Pre-installed with Google Play Store. Connecting to the internet through a built-in Wifi module. Google account required, charges may apply.
  • CANBUS integration for steering wheel controls where applicable.
  • BT for audio streaming and hands-free phone calls via any smartphone (Android, Apple, etc.). External microphone included.
  • FM RDS / AM tuner with DSP noise masking and 15 preset stations, built-in DAB.
  • Integrated Sound DSP processor with 9-bands EQ and time correction.
  • AV input/output for aftermarket subs/amps, etc.
  • Multimedia player by USB connectivity.
  • Reverse camera ready: Compatible with the factory reverse camera or an aftermarket reverse camera.

  • Steering Wheel Control

    Multi Function Display on the
    Instrument Cluster

    Rear View Camera Guidance

    Works with Wireless Apple CarPlay

    Works with Android Auto

    Built-in DAB

    Fast Boot

    Google Play Store

    Customisable Start Screen

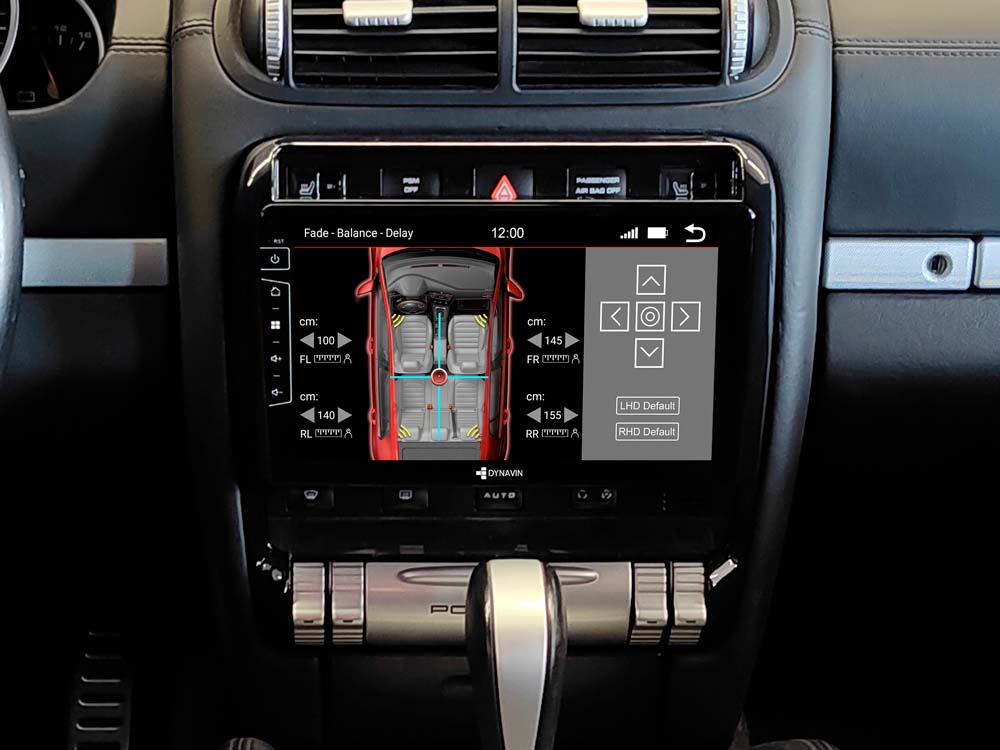

    Fader and Balance

    Equaliser Presets

    Sound Settings

    Specifications
    General
    • Android OS
    • Apple Car Play / Android Auto
    • Power Output: 4 x 45 W High Power Amplifier
    • 3 Pre-outs (3V, Front / Rear / Subwoofer)
    • CANBUS Integration
    • Menu Language: English / German / French / Spanish / Portuguese / Dutch / Greek / Italian / Polish / Danish
    • Camera connection and built-in controls compatible with many factory cameras (adaptor may be needed) or aftermarket cameras, guideline adjustment. Reverse signal either by trigger wire or CANBUS
    • Fast boot-up for regular driving, deep sleep to save power after a couple of days
    • 9-Band EQ
    • Auto dimmer setting
    • Firmware updatable
    • Engine Start-Stop Unaffected

    Screen

    • Display: 9-inch
    • Resolution 1280 x 720 pixels
    • Capacitive touch screen
    • Anti-reflection display
    Z-Link
    • Supports Wireless Apple CarPlay and wired Apple Car Play
    • Supports wired Android Auto

    DAB+

    • DAB/DAB+ built-in
    • Radio VIS - station image on your radio display where applicable
    • Station memory: 15 programmable memory locations

    Bluetooth

    • Integrated BT module
    • Supports low-power scanning function
    • Phonebook synchronization with 1000 entries
    • Hands-free function with HFP
    • Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
    • Individual profile connection: hands-free function and music streaming
    • Phonebook: Automatic phonebook transfer
    • Supports dashboard display for caller alerts where available
    • Supports saving pairing information for multiple phones
    • Device name display Call list: dialled number / received calls / missed calls
    • Speech volume setting: adjustable for incoming and outgoing calls
    • Microphone gain adjustable
    • Display of the GSM signal strength
    • Display of the battery charge level

    A2DP

    • BT audio streaming from cell phone
    • Display song details where available
    • Steering wheel can control up/down song/volume level where available

    USB

    • USB specification: USB 2.0, fast charging support
    • Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
    • Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV) - where allowable by local laws
    • Image browsing (supported formats: JPG/BMP/PNG/JPEG)
    • Playback mode: random play / single song loop / all loop / folder loop
    • Picture can be set as starting screen Sync song album images
    • Draggable progress bar
    • Video playback speed x2/ x4
    • Memory playback progress
    • Supports dashboard display of songs/composers where available
    • Supports steering wheel to control up/down song/volume level where available
    • File / Folder name search
    • Supports up to 256 GB USB storage device

    Sound Tuning

    • Maximum output power: 4 x 45 W
    • Adjustable subwoofer level
    • Subwoofer, Bass, Middle, Treble phase selectable
    • Equaliser Presets: Pop, Rock, Classical
    • 9-band parametric equaliser
    • Fader and balance
    • Digital time correction

    Radio

    • FM frequency range: 87.5 – 108.0 MHz
    • AM frequency range: 522 – 1629 kHz
    • Manual station storage for 15 stations
    • RDS functions: AF, TA, broadcast text where available
    • High Cut high frequency attenuation function
    • Support for FM/AM memory station pictures
    • Radio aerial trigger output
    • Radio aerial phantom power where applicable

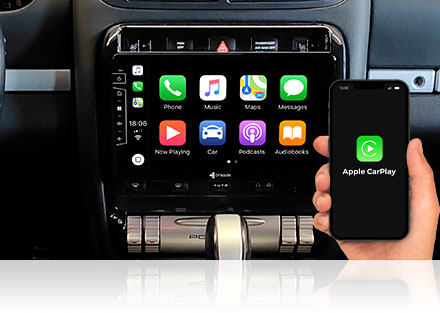

    Wireless Apple Car Play / Wired Apple Car Play

    With Apple CarPlay, iPhone users have an incredibly intuitive solution on board to make calls, use maps, listen to music and use messages with just a word or the touch of a button. You can enjoy Spotify, Internet radio or podcasts while still fully concentrating on the traffic, depending on what apps you have installed. The Dynavin 8 Platform supports Wireless Apple CarPlay.

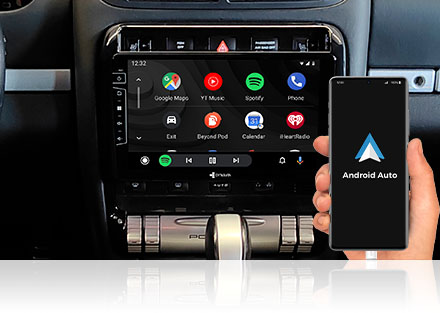

    Android Auto

    Android Auto connects your Android phone to your car’s touchscreen display allowing you to use your Android phone while driving without having to pick it up. With Android Auto, Android users have an incredibly intuitive solution to make calls, use maps, listen to music and use messages with just a word or the touch of a button.

    Built in DAB

    DAB/DAB+ offers you an accurate, transparent sound. For uninterrupted reception, the tuner offers DAB and to DAB + , SLS (text information accompanying the program), Radio VIS (station cover on your radio display) and other helpful information where available.

    Fast Boot

    The Dynavin 8 fast boot feature lets the radio system boots in 3 seconds. The fast boot is disabled to save the battery energy after the car has been switched off for more than 48 hours.

    Google Play Store

    The Google Play Store feature lets users install Android apps after connecting to the Internet via Wifi connection, such as a hotspot to your phone. Google account required, fees may apply from Google.

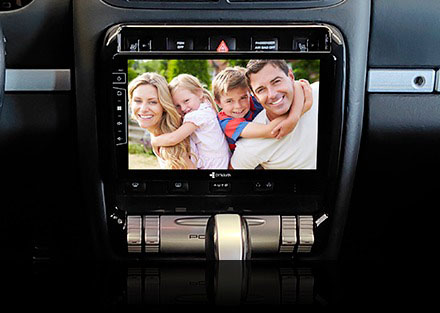

    Customisable Start Screen

    With the DynOS operating system, you have the ability to change the start-up screen image and store radio stations images.

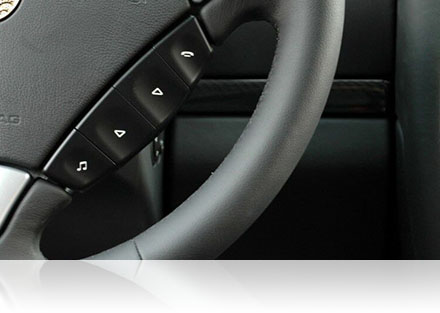

    Steering Wheel Control

    The Dynavin system communicates seamlessly with the steering wheel functions of your vehicle. This allows you to control volume, telephone, track search (forwards / backwards) and other functions as usual. When a smartphone is connected to the system, you can even activate voice control such as "Siri" or "Google Assistant" via the steering wheel. This feature is vehicle dependant.

    Multifunction Display (MFA)

    The multi-function display (MFA) in the instrument cluster is connected to the Dynavin system and can display radio station names, ID3 tag from Media player, and caller information. This feature is vehicle dependant.



    Reverse Camera

    Whether your vehicle is equipped with the factory reverse camera, or an aftermarket camera, it can be supported by the Dynavin 8 Platform. You can see the dynamic guide lines in the reverse camera mode. Adaptor may be required for factory connections. Unit has a standard RCA connection.

    Supplied Parts

    • Main unit with LCD (and extension cable if necessary)
    • Wiring harness adaptor
    • DAB antenna
    • GPS antenna (in many cases you can use the original GPS aerial)
    • USB extension cables
    • Microphone
    • Wifi aerial
    • Reverse camera RCA cable
    • Quick start guide (manual via online link)
