SKU: Antenna-Soundlabs-Group-Roof-Whip-Aerial Soundlabs AM FM Roof or Side Mount Whip Antenna

Soundlabs Group Roof or Side Mount AM / FM Aerial

This universal fit antenna is an ideal replacement for roof or side mount aerials, or for new installations and features a shallow angle for tight installs. Suitable for AM and FM reception; it has high sensitivity ensuring good reception. No power is needed, and the rod section is removable in case of low areas, car washes or the like. Can also be used for DAB+ if used with an optional DAB splitter.

Specifications (all details are approx.):

• Colour: matt black - plastic

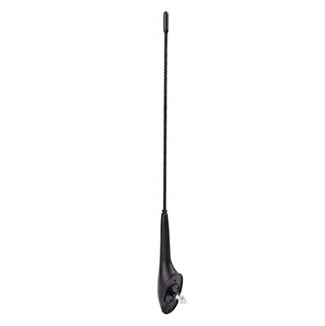

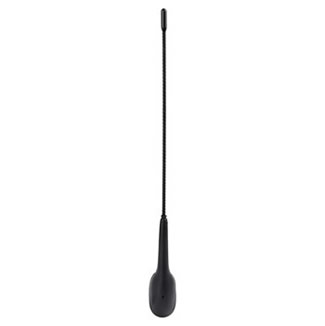

• Mast: flexible removable coil-wound whip style with a copper core
• Total length: 47cm
• Mast length: 41cm
• Base: 4cm x 6cm
• Angle of aerial: 20°
• Cable length: 200cm

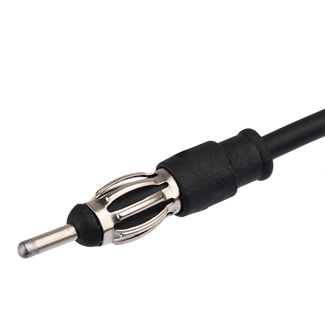

• Cable: standard DIN plug

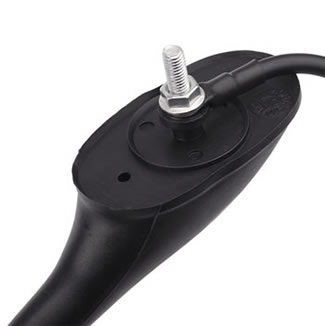

• Mounting hole: 9.7 mm (with pressure fit clips) / locating hole: 4.3mm (can be cut off if required) - ensure proper treatment of vehicle metal to avoid corrosion and water leaks.
• Mounting screw depth: 15 mm
• Note: screw thread is for the signal cable, it should not tough the chassis. The cable mounting plate has teeth which should connect to the chassis for grounding.
• Extra spacers / washers may be required depending on vehicle, not supplied.
