SL 713 - 4 Ohm

Our Price: AU $21.00 inc. GST each
AU $19.09 export price each

Product Code: V-2050-SL713

This item is listed in the following categories:
Oval, Fullrange, Industrial - Equipment, Buses - Coaches, Caravan - Mobile Home, Railway - Trains, Trucks - Tractors, Visaton Drivers, Oval Drivers

Quantity in your cart: None

Quantity:

Shipping Calculator: add to cart to first!

SL 713 - 4 OHM

Art. No. 2050

Oval fullrange driver with high efficiency and highrange rise for good speech audibility. For applications in slim column speakers and in 100 V sound reinforcement networks.

Typical applications:
- Network column speakers
- Ceiling- mounted speakers in railway carriages and busses

Attributes :
- Moisturised cone
- Metal basket

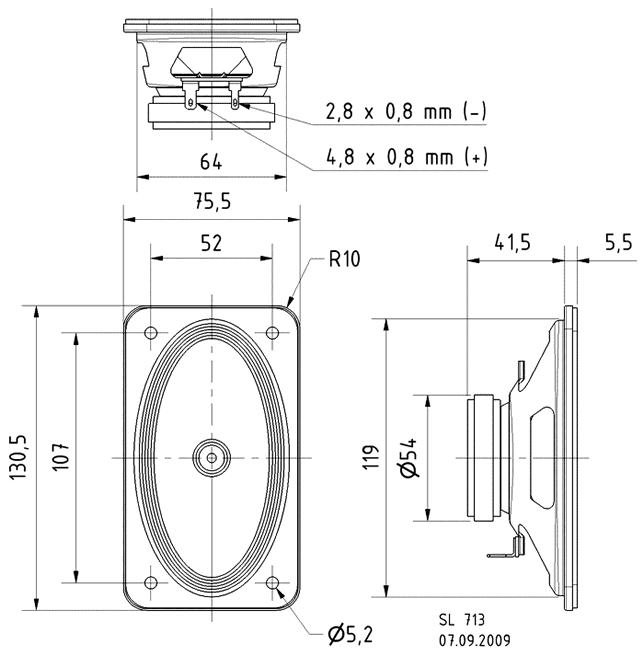

sketch

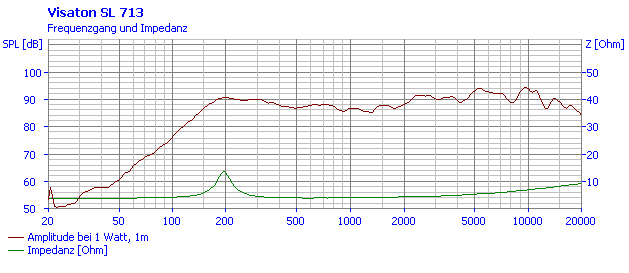

frequency- and impedance response

Technical Data:
Rated power	10 W
Maximum power	15 W
Nominal impedance Z	4 Ohm
Frequency response	100–20000 Hz
Mean sound pressure level	90 dB (1 W/1 m)
Angle of sound emmision	180°/4000 Hz hor. 63°/4000 Hz vert.
Maximum cone displacement	+/−2 mm
Resonance frequency fs	200 Hz
Magnetic induction	0,9 T
Magnetic flux	130 µWb
Height of front pole-plate	3 mm
Voice coil diameter	15 mm
Height of winding	5 mm
Cutout diameter	66 x 119 mm (oval)
Net weight	0,28 kg
D.C. resistance Rdc	3,9 Ohm
Mechanical Q factor Qms	8,39
Electrical Q factor Qes	2,4
Total Q factor Qts	1,87
Equivalent volume Vas	1,9 l
Effective piston area Sd	50 cm²
Dynamically moved mass Mms	1,7 g
Force factor Bxl	1,9 Tm
Inductance of the voice coil L	0,2 mH
Heat resistance	−25 ... 70 °C

Similar Products

FR 9.15 4 OHM	SC 4.7 ND 4 OHM
SC 4.7 ND 8 OHM	SC 5.9 8 OHM
SC 5.9 ND 4 OHM	SC 5.9 ND 8 OHM

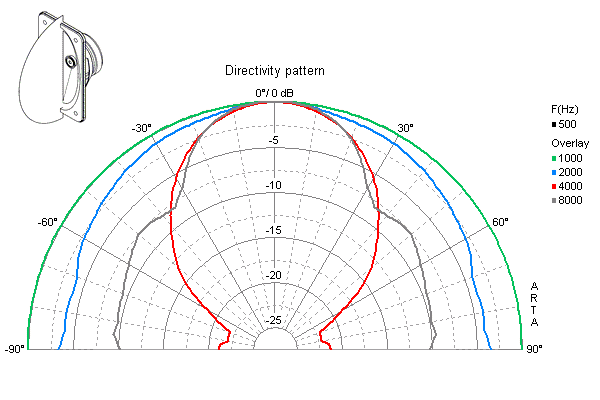

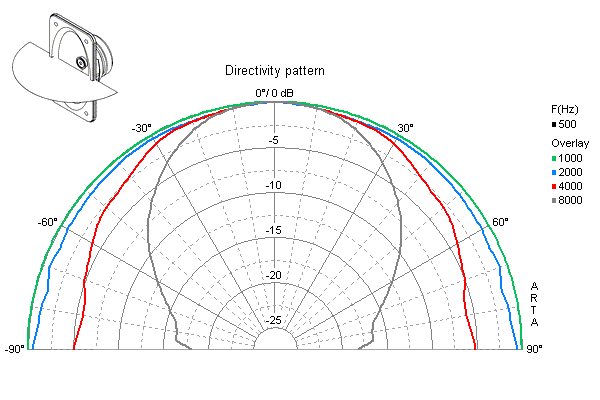

directivity pattern (A)	directivity pattern (B)
(A)	(B)
