6.5" - 4 Ohm - Ferrite - WF166TU02

WF166TU02 is a mid/woofer designed for demanding bass and midrange applications. It works equally well for most applications but is designed especially for automotive high-end sound. The very rigid die cast alu chassis follows the common standard dimensions for easy installation in cars WF166TU02 is powered by a large 90mm magnet structure that ensures good efficiency and optimised T/S parameters. The large 32mm voice coil ensures high power handling - thermally and mechanically The optimised paper cone ensures wide bandwidth and low distortion. Distortion is further reduced by efficient venting and a separate alu field stabilizing ring. WF166TU02 is a good choice for 2-way car speaker systems.

Features

• Very rigid die cast alu chassis
• Built-in alu field stabilising ring for reduced high-level distortion
• Vented voice coil former for reduced distortion and compression
• Vented chassis for lower air flow speed reducing audible distortion
• Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
• Large motor system with 1¼” voice coil diameter and large 90mm magnet for better control and efficiency
• Long linear stroke motor for reduced distortion at high levels
• Linear suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
• Gold plated terminals to prevent oxidation for long-term reliable connection - important in a car environment

Specifications

FREQUENCY RESPONSE

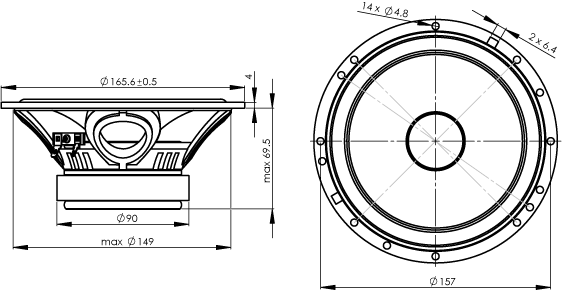

OUTLINE DRAWING AND DIMENSIONS (mm)
