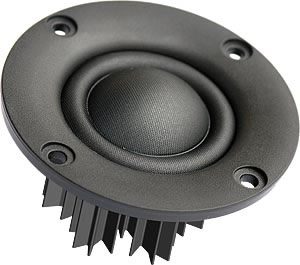

4 Ohm - Ferro - TW030WA02

4 Ohm - Ferro - TW030WA02

 Our Price: AU $170.00 inc. GST pair
                   AU $154.55 export price pair

 Product Code: WC-TW030WA02

 This item is listed in the following categories:
Tweeters, Wavecor, Tweeters

 Quantity in your cart: None

 Quantity:
 Shipping Calculator: add to cart to first!
Wavecor

TW030WA02 is identical to TW030WA01 with the exception that TW030WA02 also features ferro fluid in the air gap. TW030WA02 is a high performance 30mm soft dome tweeter that works equally well for most demanding high frequency audio applications. The low resonance frequency and high power handling makes TW030WA02 the ideal tweeter for 2-way speakers, where standard tweeters will not do. The usage of dual neodymium magnets as power house ensures an almost perfect magnetic screening for demanding A/V applications. The low distortion and the smooth and extended frequency response combine extreme details and dynamics into making TW030WA02 the pearl of any high-end 2-channel system. Small size and high efficiency make TW030WA02 well suited for high quality multimedia applications.

Features

  • Precision-coated textile diaphragm for improved consistency and high-frequency extension
  • Vented voice coil former for reduced distortion and compression
  • Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
  • Build-in cavities under dome/edge to equalise pressure for lower distortion and lower resonance frequency
  • Rear heat sink for increased power handling and reduced power compression
  • Dual neodymium magnets for improved efficiency and improved magnetic shielding for A/V applications
  • High-stability ferro fluid for increased heat transfer from the voice coil
  • Flexible lead wires for higher power handling and larger excursion
  • Black anodised magnet structure for increased power handling and reduced power compression
  • Gold plated terminals to prevent oxidation for long-term reliable connection
  • Delivered with EVA gasket attached for hassle-free mounting and secure cabinet sealing

Specifications

Nominal size
30
 [mm]
Nominal impedance
4
 [ohm]
Recommended freq. range
2-25
 [kHz]
Sensitivity, 2.83V/1m, (average 2-20kHz)
94.5
 [dB]
Voice coil diameter
30.4
 [mm]
Voice coil height
1.7
 [mm]
Air gap height
2.0
 [mm]
Voice coil resistance, RDC
3.2
 [ohm]
Voice coil inductance
0.017
 [mH]
Magnet weight (dual neo)
25.5
 [g]
Effective radiating area, Sd
11.0
 [sq.cm]
Power handling, continuous, IEC 268-5, 2.5kHz@12dB/oct.
35
 [W]
Resonance freq., Fs
1,075
 [Hz]
Moving mass, incl. air
0.47
 [g]
Force factor, Bxl
2.45
 [Tm]
Mechanical Q, Qm
1.15
  -
Electrical Q, Qe
1.85
  -
Total Q, Qt
0.70
  -
Suspension compliance, Cms
0.043
 [mm/N]
Equiv.. air volume, Vas
0.0074
 [lit.]
Total unit net weight
130
 [g]

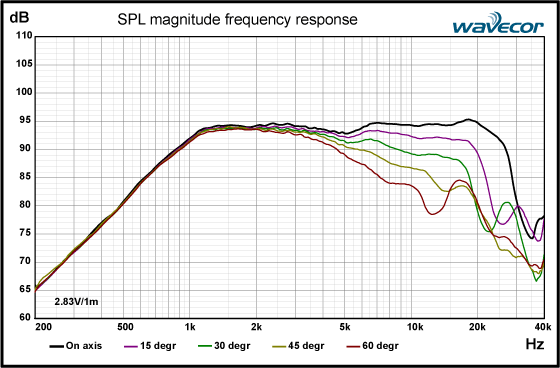

FREQUENCY RESPONSE
TW030WA02 Frequency Response



IMPEDANCE RESPONSE
TW030WA02 Impedance Response

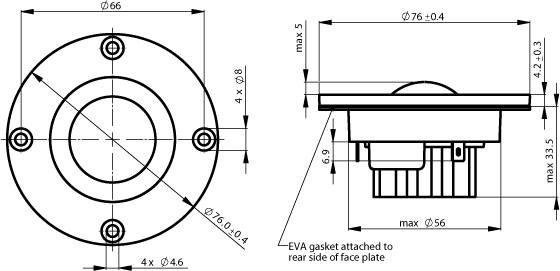

OUTLINE DRAWING AND DIMENSIONS (mm)
TW030WA01-outline-drawing6

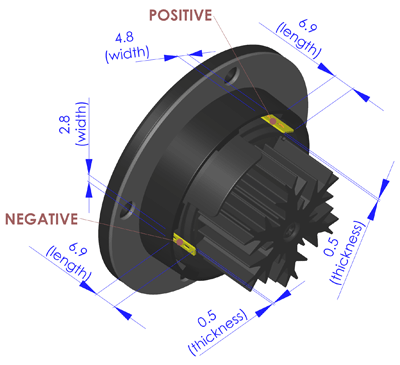

CONNECTIONS (dimensions in mm)
Connections
