10" - 4 Ohm - SW263WA03

SW263WA03 is a 4 ohm woofer designed for dedicated subwoofer applications. It works equally well for high-end hi-fi, high quality home theater systems and top multimedia setups. The extremely stiff aluminium cone, the long linear throw, exaggerated ventilation, and the special dynamic linearisation short circuiting rings together makes up for an unusually linear and low-distortion woofer. Even at very high signal levels, the unit behaves controlled and without distortion. Due to low mechanical losses SW263WA03 masters equally well low level details and extreme dynamic requirements.

Features

• Extremely rigid aluminium cone to ensure piston motion at high levels and for better heat transfer at high continuous power levels
• Die cast alu chassis with additional spacers for optimal ventilation and increased stroke
• Vented cone neck for reduced distortion and compression
• Vented chassis for lower air flow speed reducing audible distortion
• Heavy-duty black fibre glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
• Large motor system with 2” voice coil diameter and dual 145mm magnet for better control and efficiency
• Black-anodised magnet structure steel parts for increased heat dissipation and power handling
• Two built-in alu field stabilising rings for reduced high-level distortion
• Long linear stroke motor for reduced distortion at high levels
• Linear suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
• 4-layer voice coil for increased control and better small-cabinet performance

Specifications

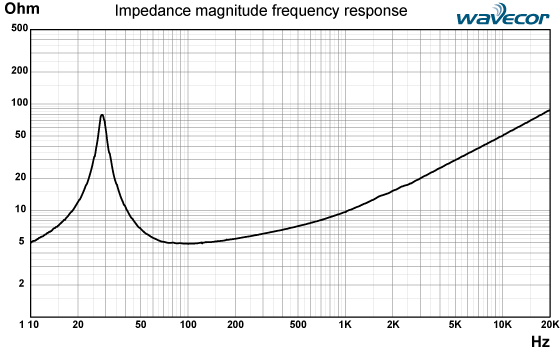

IMPEDANCE RESPONSE

OUTLINE DRAWING AND DIMENSIONS (mm)
