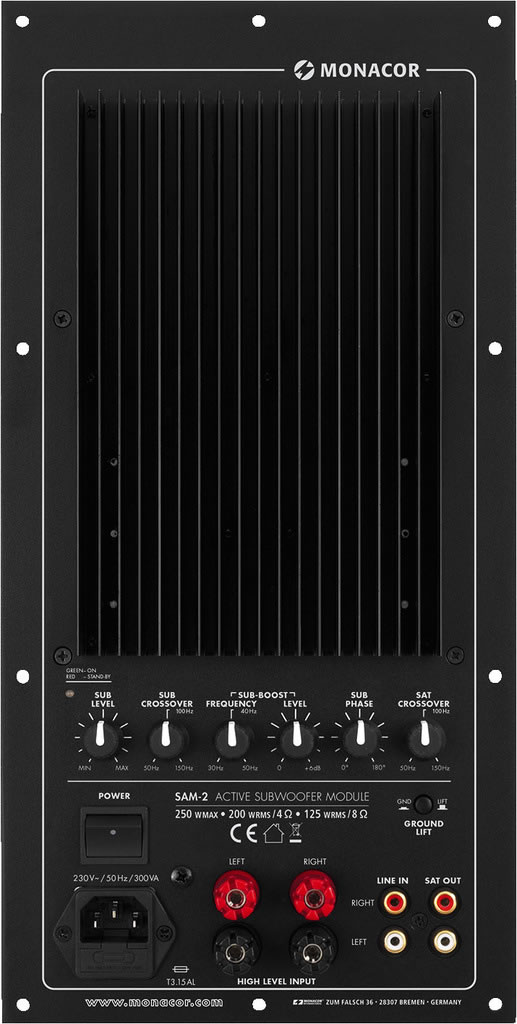

Monacor Subwoofer Amplifier SAM-2

Monacor SAM-2 Active Subwoofer Module 250W

The high-power subwoofer module SAM-2 with the perfect equipment and workmanship for active subwoofer systems of the highest quality. The filters operate perfectly, for the subwoofer as well as the high-pass filter and a combination of systems of the highest quality is possible without any difficulties.

High-power active module with extensive equipment: 24dB subsonic filter, var. low-pass filter: 50-150Hz (18dB), semiparametric bass boost (var. 30-50Hz midrange with boost up to 6dB, continuously adjustable), continuously adjustable phase control 0-180° for uncompromising room adjustment and set-up adjustment, var. high-pass filter: 50-150Hz (12dB) for equalizing the bass frequencies of the satellite amplifier and the satellite speaker, ground lift switch of the studio technology against hum interference, and various protective circuits (short circuit, overheating, and DC voltage overload). The great power can also perfectly drive enormous bass speakers with a diameter of up to 46cm, the sound and the workmanship are absolutely convincing.

The high-quality active high-pass Line Out of the SAM-2 with versatile adjustments can conveniently be used as a bass relief of the main speakers and for optimizing the sound. However, a regulated preamplifier output (Pre Out) is required for this. This kind of output is partly present at high-quality separable full amplifiers (Pre Out/Main In) or automatically provided by preamplifier/power amplifier combination or when using mixers.

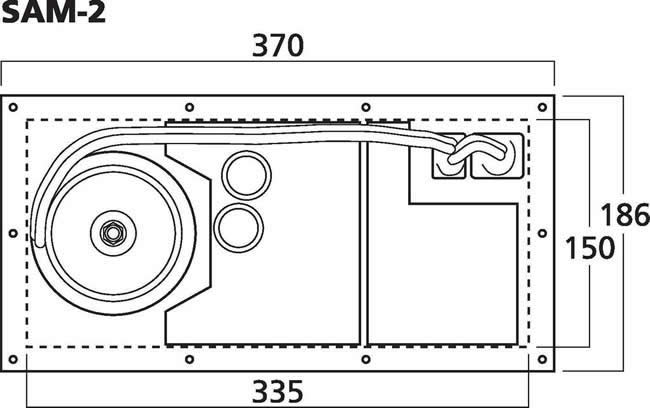

SAM-2 Measurements

Download PDF: Technical Diagram

Download PDF Manual: SAM-2 (410.8 KB)

PDF files use Adobe Acrobat® Reader®, which is available here if required.

Specifications:
