IMG Stage Line Power Amp STA-700

IMG Stage Line Power Amp STA-700


 Our Price: AU $378.00 inc. GST each
                   AU $343.64 export price each

 Product Code: M-244120-STA700

 This item is listed in the following categories:
Amplifiers, img Stage Line, IMG Stage Line, Power Amps

 Quantity in your cart: None

 Quantity:
 Shipping Calculator: add to cart to first!

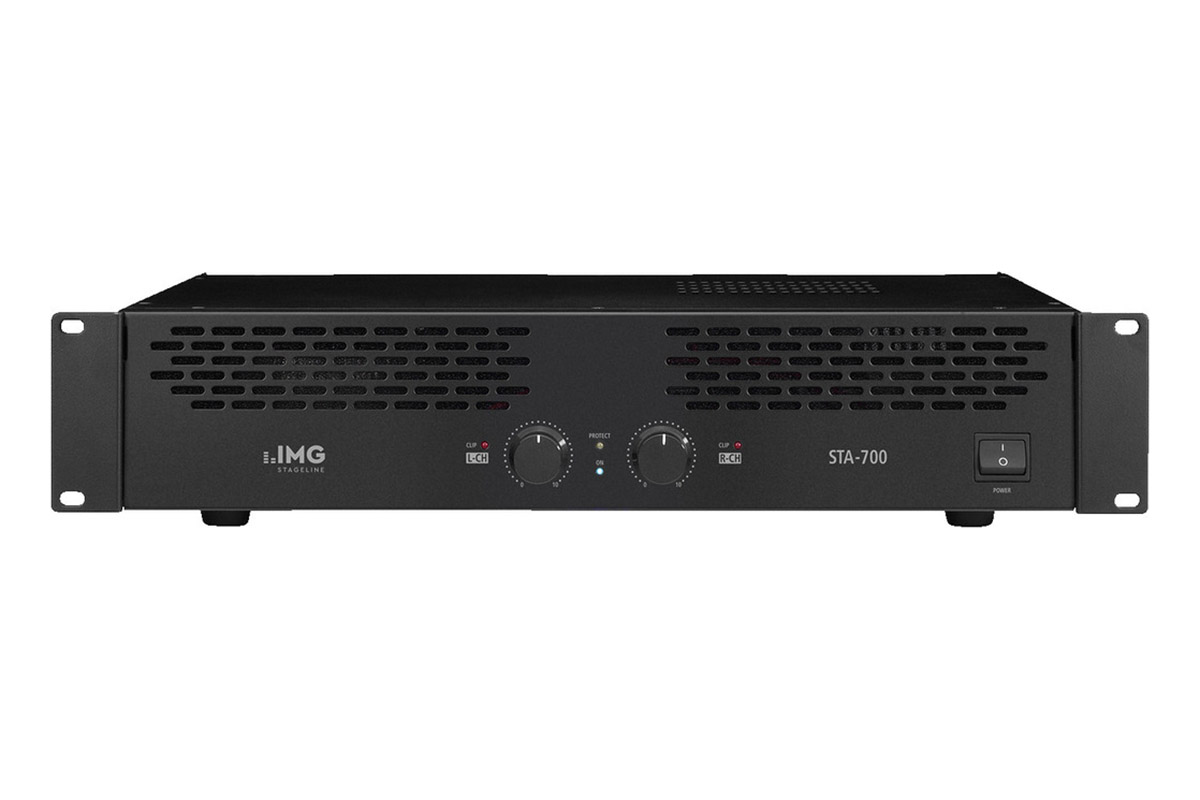

IMG Stage Line STA-700 800W Stereo Amplifier

19 Inch Unit

High-quality equipment, high power reserves and the exceptionally favourable price make this amplifier from IMG Stage Line a top offer. Comparable features can hardly be manufactured at a more reasonable price! Highly recommended for stage and DJ applications.

  • 800W MAX
  • Fan-cooling
  • Speaker switch-on delay
  • Protected against short circuit, overheating, and DC voltage overlay at the outputs due to protective circuit with LED indication
  • 2 level controls
  • 1 LED per channel for overload (clip)
  • Groundlift switch

Download PDF Manual: STA-700 (263 KB)

PDF files use Adobe Acrobat® Reader®, which is available here if required.

Specifications:

 Output power
 RMS power
   Stereo 4Ω 2 x 275W RMS
   Stereo 8Ω 2 x 200W RMS
 Max. power 800W MAX
 General information
 Inputs 0.85V / 55kΩ
 Frequency range 10 - 20,000Hz
 S/N ratio 85dB
 Crosstalk attenuation > 43dB
 THD < 0.05%
 Power supply 220V-240V˜ / 50Hz / 1100VA
 Admiss. ambient temp. 0 - 40 °C
 Dimensions 482 x 98 x 296mm, 2RS
 Weight 11kg
 Inputs   1 x 6.3mm jack L/R,
1 x RCA L/R
 Outputs 2 x SPEAKER

1 x 6.3mm jack L/R

2 x pair of screw terminals
