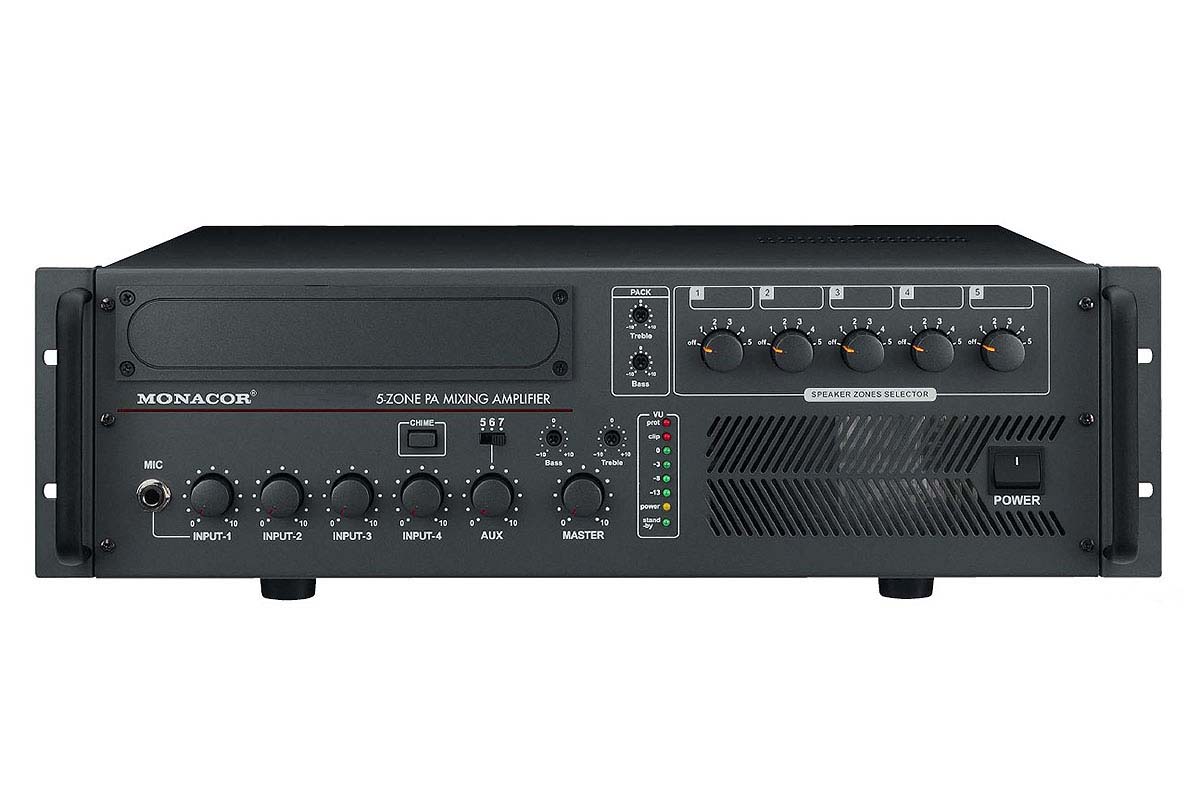

Monacor PA-5480 480W 5-Zone Mono PA Mixing Amplifier

- 1 x 480W RMS
- Also available 1 x 240W RMS (PA-5240)
- 5 zones, can be controlled individually
- Chime, howling sound, automatic mute; chime and siren can also be activated via external momentary push-button
- Bass, treble, and master controls, level display via LEDs, controlled fan
- Insertions for various functions are available at option
- Phantom power for electret microphones
- Connection for microphone PA-5000PTT
- Alarm announcement with insertion PA-1120DM (available at option)
- Mains operation or 24V emergency power operation
Download PDF Manual: PA-5480 (554.9 KB)
PDF files use Adobe Acrobat® Reader®, which is available here if required.
PROSOUND Magazine 03/2005
"Workmanship and electronic equipment give a really solid impression."
Specifications:
| General Information |
| Output power |
480W RMS |
| |
680W MAX |
| Inputs |
| Mic 1 |
2.5mV / 2kΩ |
| Mic / line 2-4 |
2.5mV / 2kΩ, 0.3V / 200kΩ |
| Line 5-7 |
0.3V / 5kΩ |
| Preamplifier |
0.775V / 10kΩ |
| Outputs |
| Speakers |
100V / 70V |
| Preamplifier |
0.775V / 100Ω |
| Frequency range |
55-16,000Hz |
| Tone control |
| Bass |
±10dB / 100Hz |
| Treble |
±10dB / 10kHz |
| S / N ratio |
| Mic |
> 70dB |
| Line |
> 80dB |
| THD |
< 1% |
| Admiss. ambient temp. |
0-40 °C |
| Power supply |
220V-240V˜ / 50Hz / 1500VA, |
| |
24V DC current / 40A |
| Dimensions |
482 x 133 x 352mm, 3RS |
| Weight |
20kg |
| Inputs |
| Mic / line |
2 x 6.3mm / XLR (Combo),
1 x 6.3mm jack |
| Line |
screw terminals,
3 x RCA L / R |
| Zone paging microphone |
screw terminal |
| Push-to-talk microphone |
screw terminal |
| Telephone |
- |
| Preamplifier |
1 x 6.3mm jack |
| Outputs |
| Chime mom. pushbutton |
screw terminals |
| Preamplifier |
1 x 6.3mm jack |
| Speakers |
screw terminals |
| Power supply |
| 230V~ |
3-pin AC jack |
| 24V DC current |
screw terminals |
|
