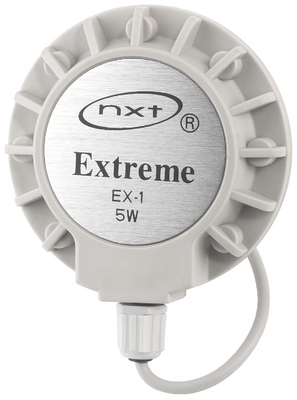

EX-1 Exciter Speaker

Number: 16.2710

This original NXT* exciter is both an innovative and amazing device to easily create high-quality audio sound from practically nothing. Simply glue it onto a surface capable of vibrating, drive it with a standard audio amplifier - and it's ready to be used. Weatherproof audio exciter / resonator (NXT*), 8 Ohm, 5W.

For audio reproduction via surfaces capable of vibrating. This resonator is simply glued or stuck onto doors, cabinet doors, windows, bath tubs, lightweight walls, ceiling panels, pictures or many other surfaces which are capable of vibrating and this vibration of the surface creates an impressive sound in the surrounding area. With doors and windows (double-glazed windows too), the sound is audible on both sides of the surface at practically the same quality, depending on the exact construction

• Very wide bandwidth reproduction with an amazing volume level, depending on the mounting surface
• High audio output capability, exceeds background volume levels
• Suitable for commercial PA applications such as background music in the entire indoor area and outdoor area and for the reproduction of information messages
• Suitable for home PA applications, e.g. terraces, adjoining rooms, bathrooms, etc.
• Waterproof (IP67)
• Supplied with adhesive pads
• 3m connection cable
• Dimension: Ø 70mm x 19mm
• Weight: 115g

The power capability of EX-1 allows for a pleasant indoor and outdoor PA sound when directed from a window to a terrace. However, the EX-1 is not suitable for a garden party with dance music due to its electrical power rating. Attention has to be paid to an admissible load. Amplifiers of higher power capability can be connected without any problems but must not be set to the maximum rating. Both the electric power rating and the acoustic power of the EX-1 can significantly be increased when connected in parallel and serial-to-parallel in dual and 4-way arrangements.

*) NXT and the NXT logo are trademarks of New Transducers Limited.

AV-views 03/2010
"The effects to be achieved are amazing. It will even turn the flip chart into a speaker .... must definitely try it out."

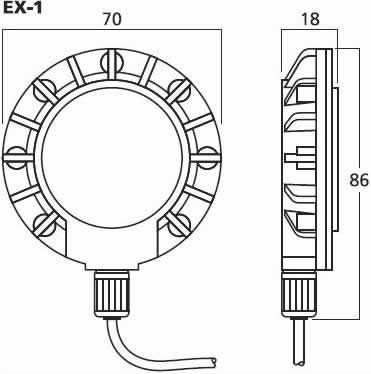

Monacor EX1 NXT Dimensions.
